Tapered-Nose Clamp Strap Assembly
Mini-size version of Tapped-Heel Clamp Straps. Tapered nose allows clamping in tight spaces. Since this strap is not slotted, turn 90° for loading clearance. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut.

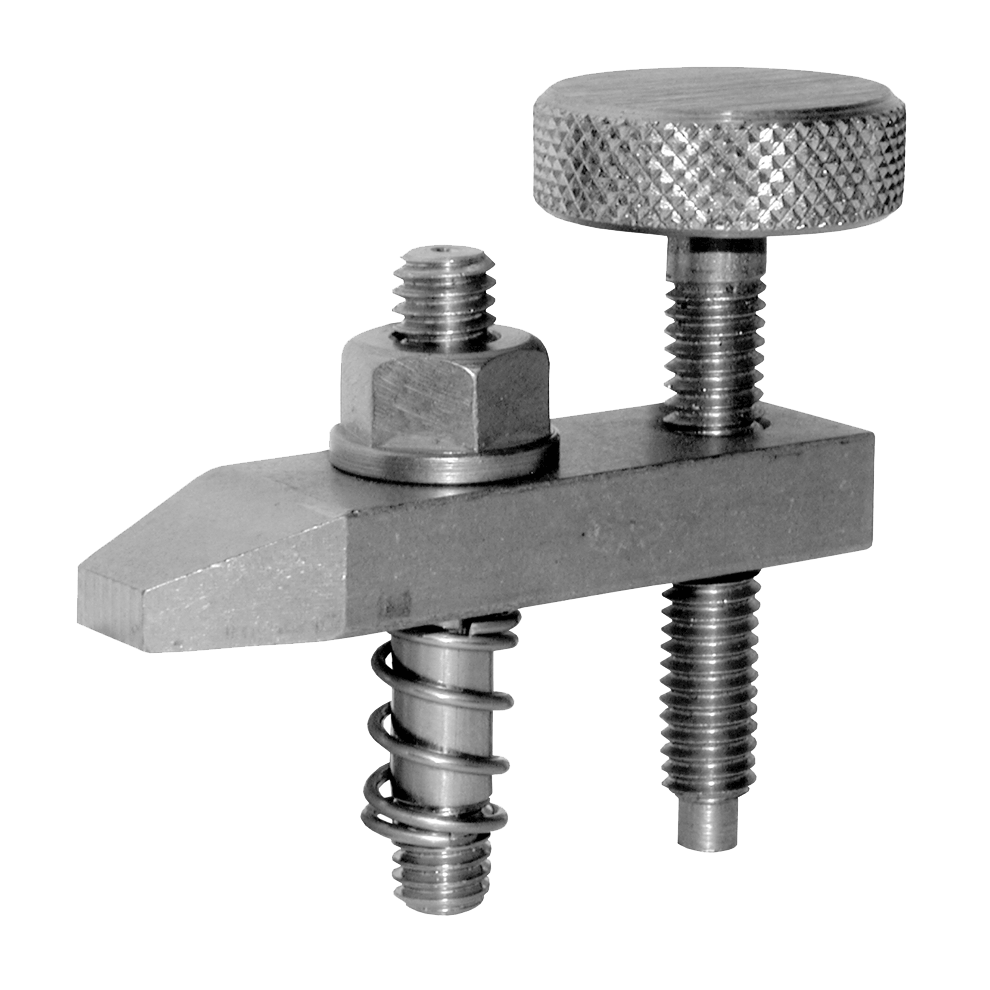

Assembly with Knurled-Head Screw
This assembly includes a Tapered-Nose Clamp Strap plus the following Items:
- Knurled-Head Screw
- Flange Nut
- Fixture Stud
- Clamp Spring
- Flat Washer
- Jam Nut
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 300-Series Stainless Steel | - | - | Yes | Yes |
Parts Specification
| Thread Size | A (Inch) | B (Inch) | C (Inch) | E (Inch) |
| #10-32 | 2" | 1/2" | 1/4" | 27/32" |
