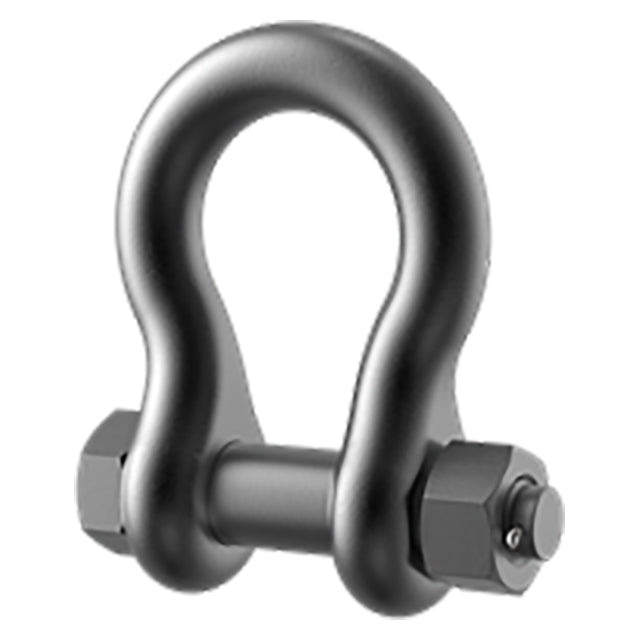

High-strength forged alloy-steel anchor shackle.
Base Installation
The Fast-Lok Base should be permanently installed by cutting a hole in the plate and welding in place, flush with the surface. Weld around the entire perimeter of the base (certified welding). Since these hoist rings do not rotate, install so that lifting force is applied in the pivoting direction.
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH |
| Fast-Lok Plate Lifting System | Alloy Steel | Heat Treated | Black Oxide Finish |
Parts Specification
| Load Rating (lbs) | Nominal Shackle Size (inch) | A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | F (inch) | G Dia (inch) | H (inch) | J (inch) | K (inch) |
| 13000 lbs | 7/8" | 5.83" | 4.03" | .97" | 2.28" | 1.44" | 3.31" | 1.00" | 4.71" | 2.09" | 7/8" |
