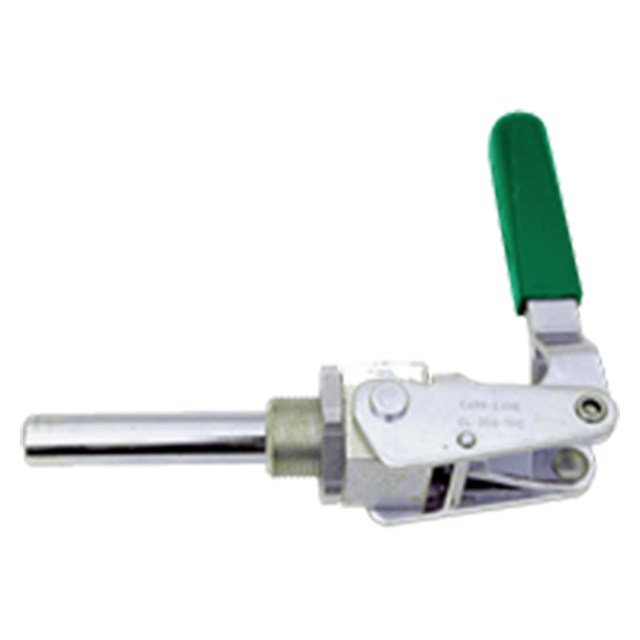

CL-350-TPC Series-700lbs.
Tapped Plunger
Compact plunger clamp for mounting through panels, plates, or angle brackets. Install in a 1"-Diameter (Inch)meter drilled hole or a 1"-14 tapped hole (M27x2 in metric), securing with the locknut provided. Rotate clamp to position handle anywhere within 360 Degree. Standard tapped-plunger version locks in extended or retracted position. 2-5/8" plunger travel. Plunger is tapped to accept any 3/8-16 spindle (M10 in metric).
Clamping Action
Clamped Position (Push)
Open Position (Push) and Clamped Position (Pull)
Material
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1215, 1008, 1010, and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Tapped Hole In Plunger | Body Thread | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Tapped Plunger, Threaded Body | 3/8-16 | 1"-14 | 700lbs. | 1.5lbs. |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
