Tapped-Heel Clamp Strap Assembly
Mini-size stainless steel version of Tapped-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut.
Application Information

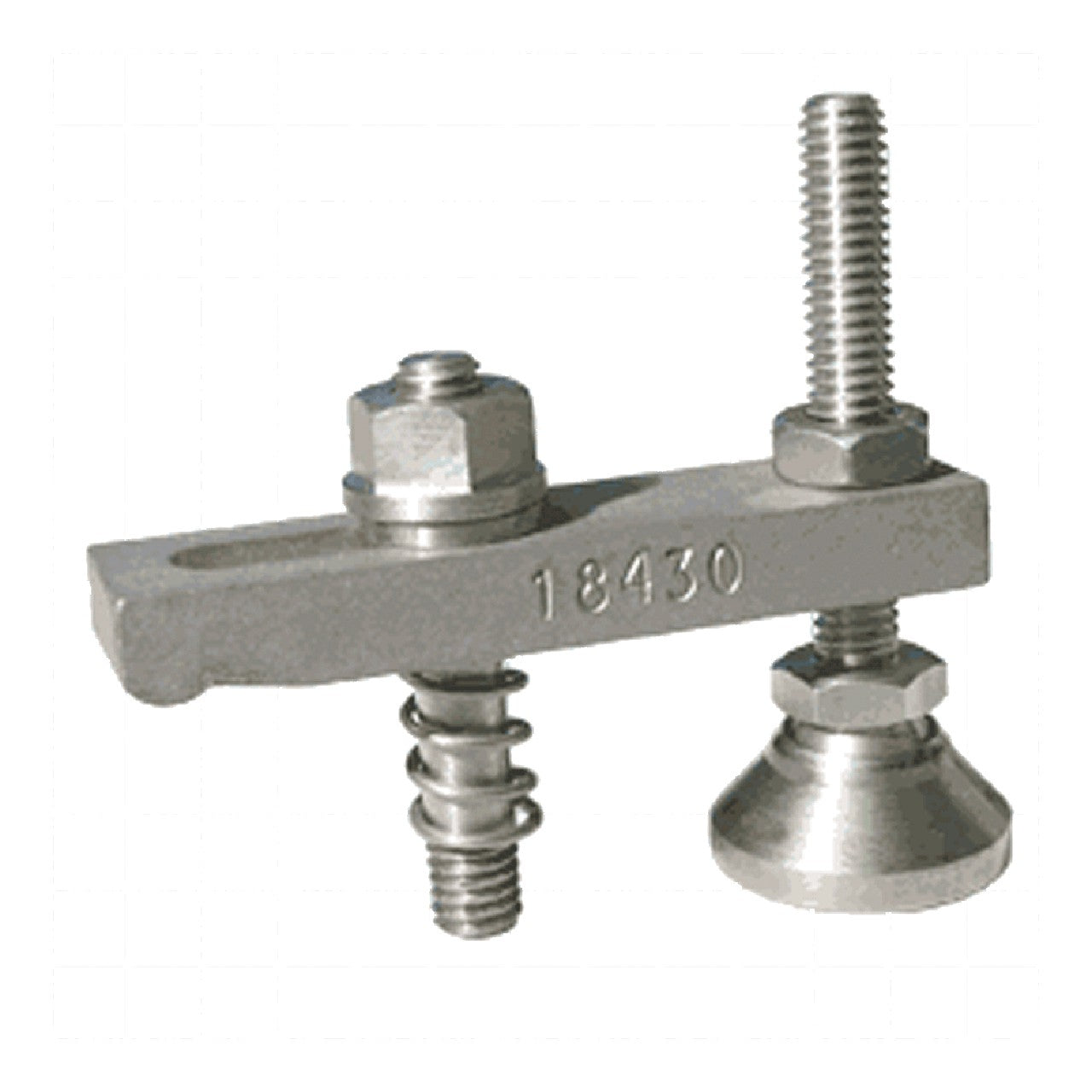

Assembley with Leveling Foot (-2)
This assembly includes a Tapped-Heel Clamp Strap plus the following Items:
- Leveling Foot
- Flange Nut
- Fixture Stud
- Clamp Spring
- Flat Washer
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 300-Series Stainless Steel | - | - | Yes | Yes |
Parts Specification
| Thread Size (Inch) | A (Inch) | B (Inch) | C (Inch) | E (Inch) |
| 5/16-18" | 3" | 3/4" | 3/8" | 1-1/4" |
