Locating Tools for Knurled Slotted Locator Bushings

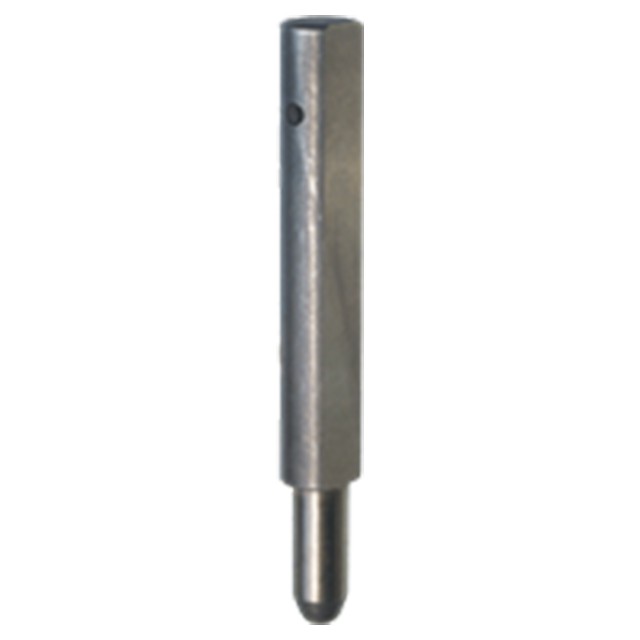

Handy locating tool for holding knurled Slotted Locator Bushings in place during embediment. This stepped locating pin has a slip-fit-tolerance shank to fit a locating liner bushing in a template plate, and a head diameter with flats to fit a Slotted Locator Bushing perfectly. Made in USA.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| O-2 Drill Rod | - | N/A | Yes | Yes |
Parts Specification
| Pin Diameter (Inch) | A | B Diameter (Inch) | D Diameter (Inch) | E (Inch) | F (Inch) | G (Inch) | H (Inch) |
| 3/16" | 0.188 | 0.312" | 0.1875" | 0.37" | 0.50" | 2.00" | 0.37" |
