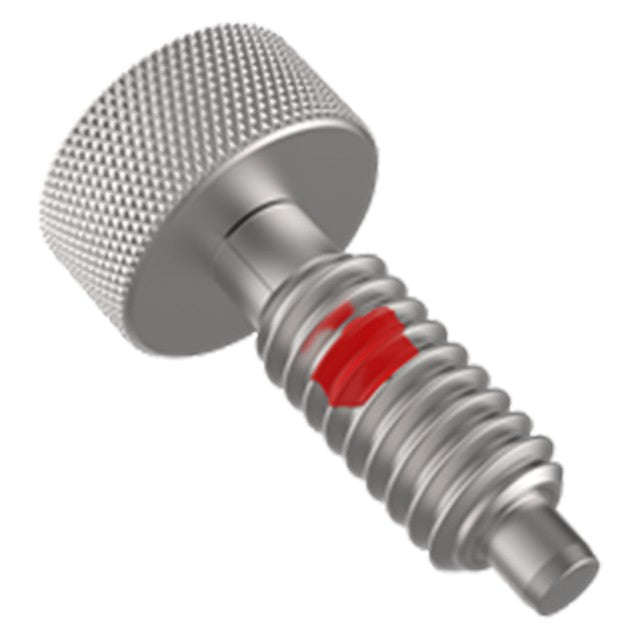

Hand-Retractable Plungers-Knurled Head
Spring-loaded plunger that locks in retracted position. To lock, pull knurled knob back and turn 90°. Slight taper on plunger tip for easy alignment. Made in USA.
Operation
Pull knob to retract
Turn 90° in either direction to lock
Material
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Plunger,Body and Knurled Head | 300-series Stainless Steel | - | - | Yes | Yes |
| Spring | 17-7PH Stainless Steel | - | - | Yes | Yes |
Parts Specification
| A Thread | Initial End Force (lbs) | Final End Force (lbs) | B Diameter Nominal | B Diameter Actual | C (inch) | D (inch) | E (inch) | F Diameter (inch) |
| #10-32 | 1 lbs. | 3.5 lbs. | 7/64 | 0.105 | 3/32" | 13/32" | 3/16" | 3/8" |
