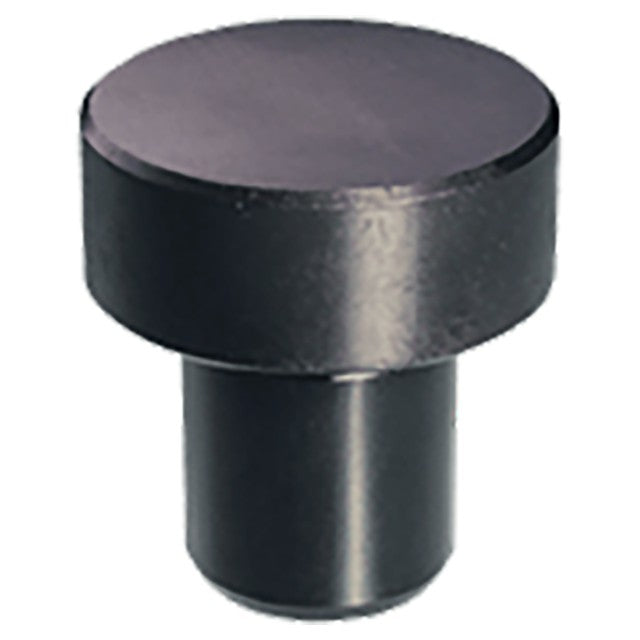

Rest Buttons
Precision height locator with a close-tolerance shank for installation in a reamed hole. Rest Buttons are extremely useful as supports, side locator pads, and jig feet. Made in USA.
Application Information
Material
| Stainless Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 300-Series Stainless Steel | - | - | Yes | Yes | |
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B (Inch) | C Nominal (Inch) | C Actual (Inch) | D Diameter (Inch) |
| 5/16" | 0.3135" | 5/16" | 3/4" | 0.7500" | 1/2" |
