Double-End Clamp Straps
Heavy-duty steel clamp strap with two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading. Standard radius nose at each end provides firm workpiece contact. Made in USA.
Application Information
Double-End Clamp Straps have two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading.

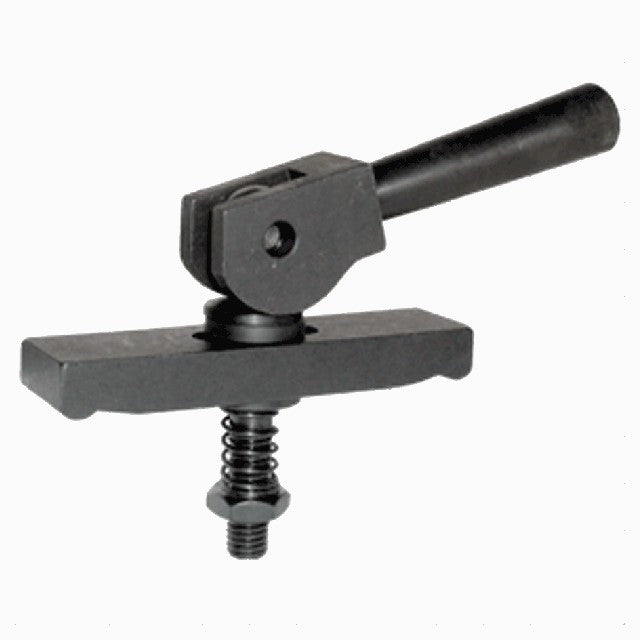

Assembly with Cam Handle & Spherical Washer (-7)
This clamp assembly includes a Double-End Clamp Strap plus the following Items:
Cam Handle
Spherical Washer
Eye Bolt
Clevis Pin
Clamp Spring
Flat Washer
Jam Nut
Material
| Material | Heat Treat | Finish | RoHS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | ✔ | ✔ |
Parts Specification
| Thread Size | A (Inch) | B (Inch) | C (Inch) | Clamp Strap | Clamp Spring | Eye Bolt | Cam Handle | Clevis Pin | Flat Washer | Spherical Washer | Jam Nut |
| 3/8-16 | 3" | 1-1/8" | 1/2" | CL-23-CS | CL-7-SPG | CL-38-EB | CL-12-CH | CL-1014-CLVP | CL-1-FW | CL-2-SW | CL-6-JN |
