Slotted-Heel Padded Clamp Strap Assembly
Slotted-Heel Clamp Strap that features a replaceable clamping pad attached with two screws (furnished). Padded clamp straps also easily accept custom pads or other attachments. These clamp straps have a slot underneath to slide straight back for clear loading. The tapped hole at the rear of each side allows installing a Finger Pin. Made in USA.
Clamping Pads

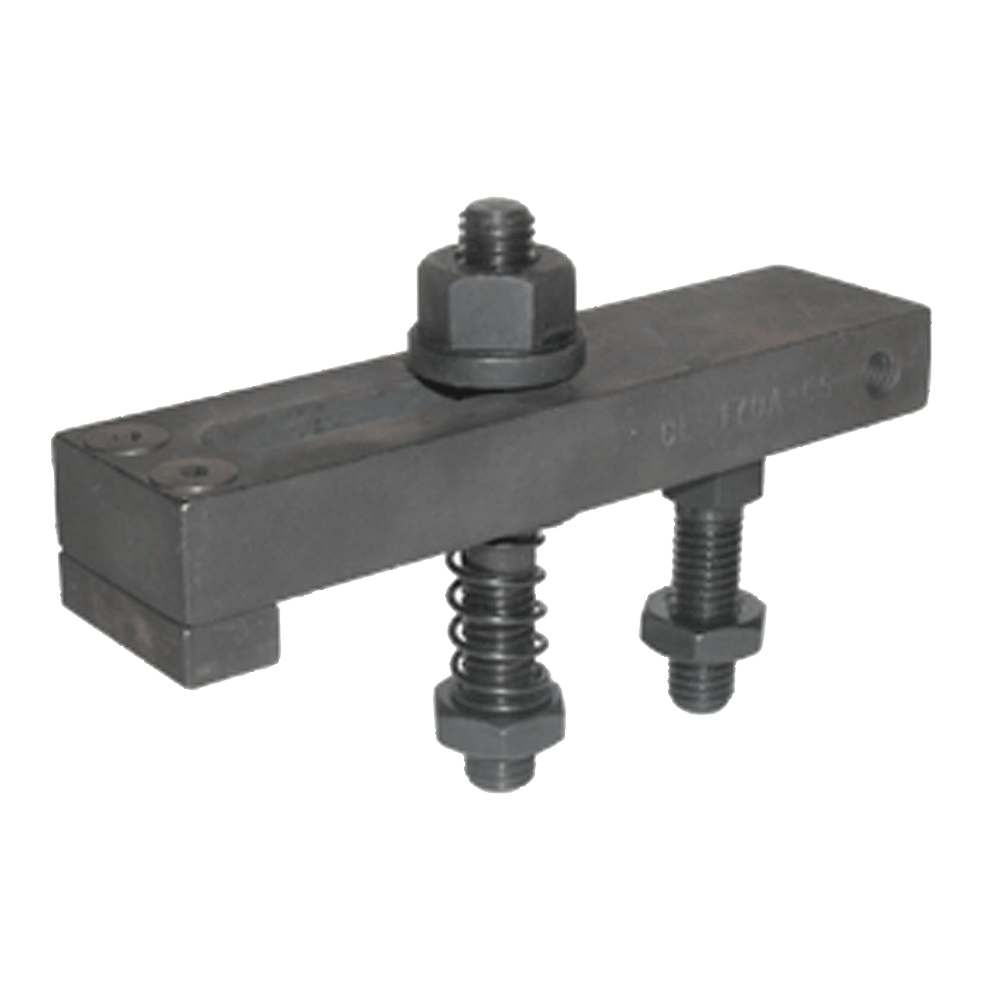

Assembly with Flange Nut (-2)
This clamp assembly includes a Slotted-Heel Padded Clamp Strap plus the following Items:
- Flange Nut
- Clamping Stud
- Clamp Spring
- Flat Washer
- Jam Nut
- Clamp Rest
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Strap | 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
| Flat-Head Socket Screws | Steel | - | Black Oxide | Yes | Yes |
| Steel Clamping Pad | 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
| Plastic Clamping Pad | Plastic | - | - | Yes | Yes |
| Brass Clamping Pad | Brass | - | - | Yes | Yes |
Parts Specification
| A Thread (Inch) | D (Inch) | E (Inch) | F (Inch) | S (Inch) |
| 1/4-20" | 2" | 3/8" | 5/8" | 7/8" |
