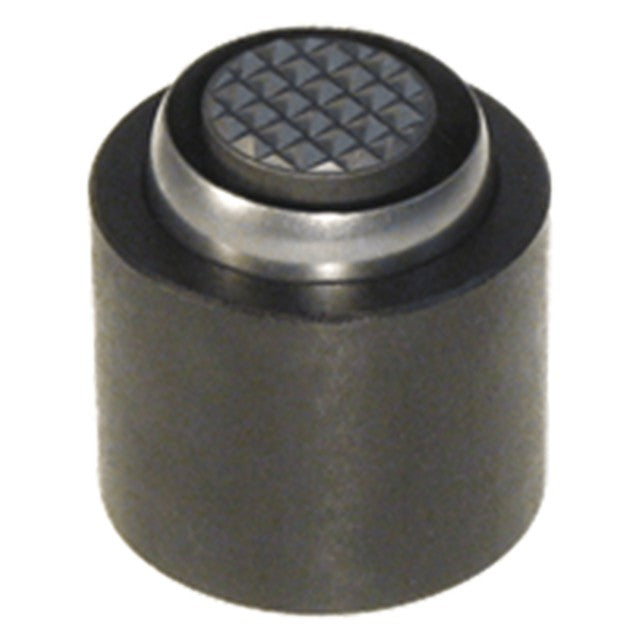

Gripper Swivel Pads
Rest pad with a built-in swivel ball to hold a Round Gripper. This swivel ball, held by a retaining ring, is removable to allow installing any of the nine different Round Gripper types. Gripper Swivel Pads include a screw for fastening the gripper. This screw also serves as a positive stop to prevent the ball from swiveling too far.Gripper Swivel Pads can be surface mounted or installed in a counterbored hole. Made in USA.
Application Information
Gripper Swivel Pads can be surface mounted or installed in a counterbored hole.
Parts Specification
| A Diameter (Inch) | B Diameter (Inch) | C (Inch) | D Thread (Inch) | E (Inch) | F Ball Diameter (Inch) | H (Inch) | J (Inch) | Matching Round Gripper Size |
| 1" | 1-1/2" | 1-3/8" | 1/2-20" | 0.44" | 1-1/8" | 1-1/4" | 1-1/2" | CL-16-RGx |
