Forged Adjustable Clamps

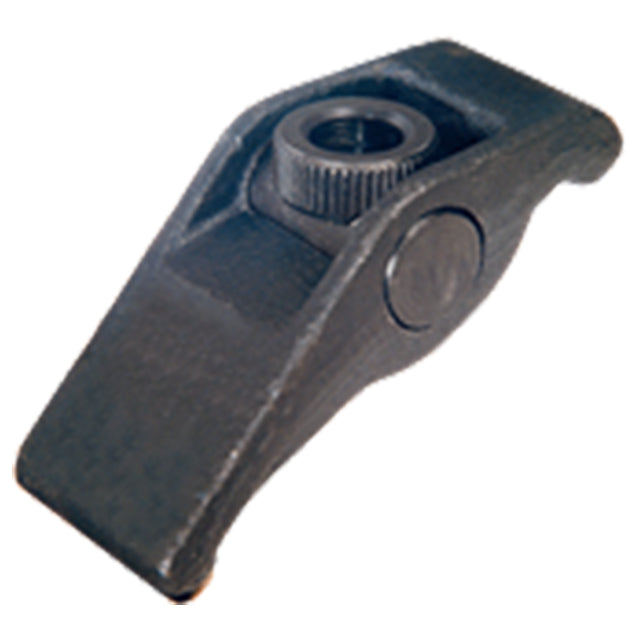

Rugged forged steel pivot clamp. Provides instant height adjustment without blocks or shims. All-in-one construction allows quick setup and eliminates lost clamp pieces. Turn clamp 90° in either direction for loading clearance. Removable brass heel protects machine table.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Forged 1045 Steel | - | Black Oxide | Yes | Yes |
| Pivot | Mild Steel | - | Black Oxide | Yes | Yes |
| Removable Heel Pad | Brass | - | - | Yes | Yes |
Parts Specification
| Stud Size | Recommended Stud Length | Clamping Range (Inch) | A Diameter | B | C | D | E | F | G |
| 7/8-9 1-8" or M24 | 8" or 200mm | 0 to 5-1/2" | 1-1/16 | 7 | 3-1/8 | 2-3/8 | 2-7/16 | 2-1/4 | 4 |
