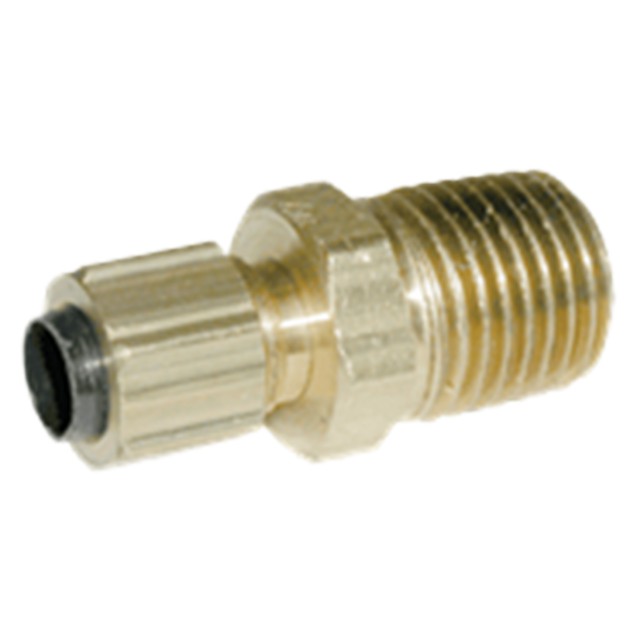

Air Fittings-Tubing Connector
CL-14-PCTC
Connector to run small-Diameter (Inch)meter tubing lines. 1/4-NPT male thread on one end, compression sleeve and nut for 1/4-OD tubing on the other end.
Design Consideration and Safety Precautions
Tubing can be steel, copper, plastic, etc., but must have an ultimate burst pressure of at least 3 times operating pressure.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Brass and Bronze | - | - | ✔ | ✔ |
Parts Specification
| Size | Maximum Operating Pressure |
| 1/4-OD Tubing x 1/4-NPT Male | 100 psi |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
