Double-End Clamp Strap Assembly
Heavy-duty steel clamp strap with two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading. Standard radius nose at each end provides firm workpiece contact. Made in USA.
Application Information
Double-End Clamp Straps have two identical clamping ends, for holding two workpieces simultaneously. Turn strap 90° for clear loading.

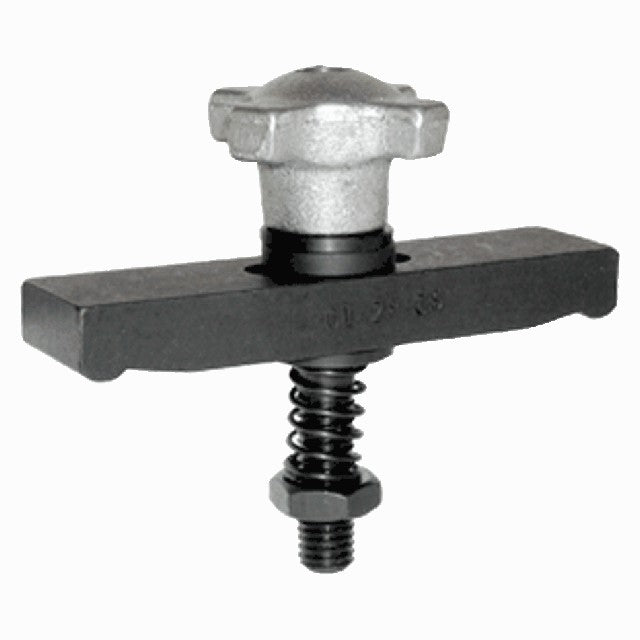

Assembly with Hand Knob & Spherical Washer (-4)
This clamp assembly includes a Double-End Gooseneck Clamp Strap plus the following Items:
Hand Knob
Spherical Washer
Clamping Stud
Clamp Spring
Flat Washer
Jam Nut
Material
| Material | Heat Treat | Finish | RoHS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | ✔ | ✔ |
Parts Specification
| Thread Size | A (Inch) | B (Inch) | C (Inch) | Clamp Strap | Clamp Spring | Flat Washer | Clamping Stud | Jam Nut | Hand Kno | Sphericalwasher |
| 5/8-11 | 6" | 1-1/2" | 7/8" | CL-33-CS | CL-11-SPG | CL-3-FW | CL-5/8-11x4.50-STUD | CL-10-JN | CL-10-HK-10 | CL-4-SW |
