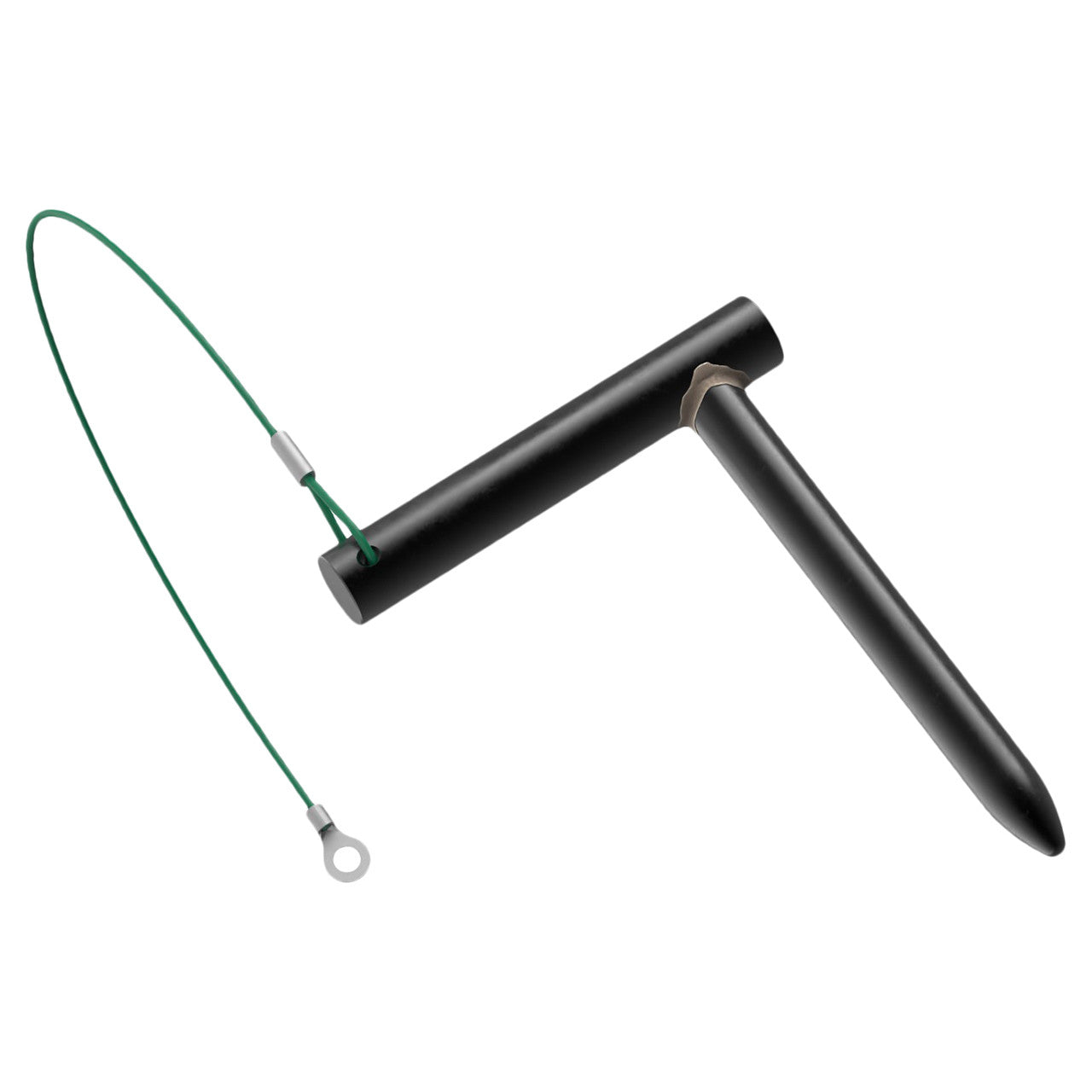

L Pins
are removable locating pins, precision ground for accurately aligning holes. L shaped pins feature a body inset into a solid handle and silver soldered to create a sturdy assembly. L pin handle ends have a small hole for attaching an optional cable. Made in USA.
Application Information
L Pins can be used for accurately aligning two plates
Optional Cable
To order L Pins with a standard cable assembly attached, add "-C" to the part number, (#2 cable size, 10-12" long, with a terminal at the free end for a #10 or M5 attachment screw).
Material
| Item | Material | Heat Treat | Finish |
| Pin | 1215 Steel | Carburized-hardened | Black Oxide |
| Handle | 1215 Steel | - | Black Oxide |
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E (Inch) |
| 7/16" | 0.4375" | 6" | 3-1/2" | 9/16" | 5/8" |
