Shoulder Pins
Removable locating pins with a straight handle, precision ground for accurately aligning holes. The pin body is inset into a solid handle and silver soldered to create a sturdy assembly. The handle end has a small hole for attaching an optional cable. Made in USA.
Application Information
Shoulder Pins can be used for accurately aligning two plates

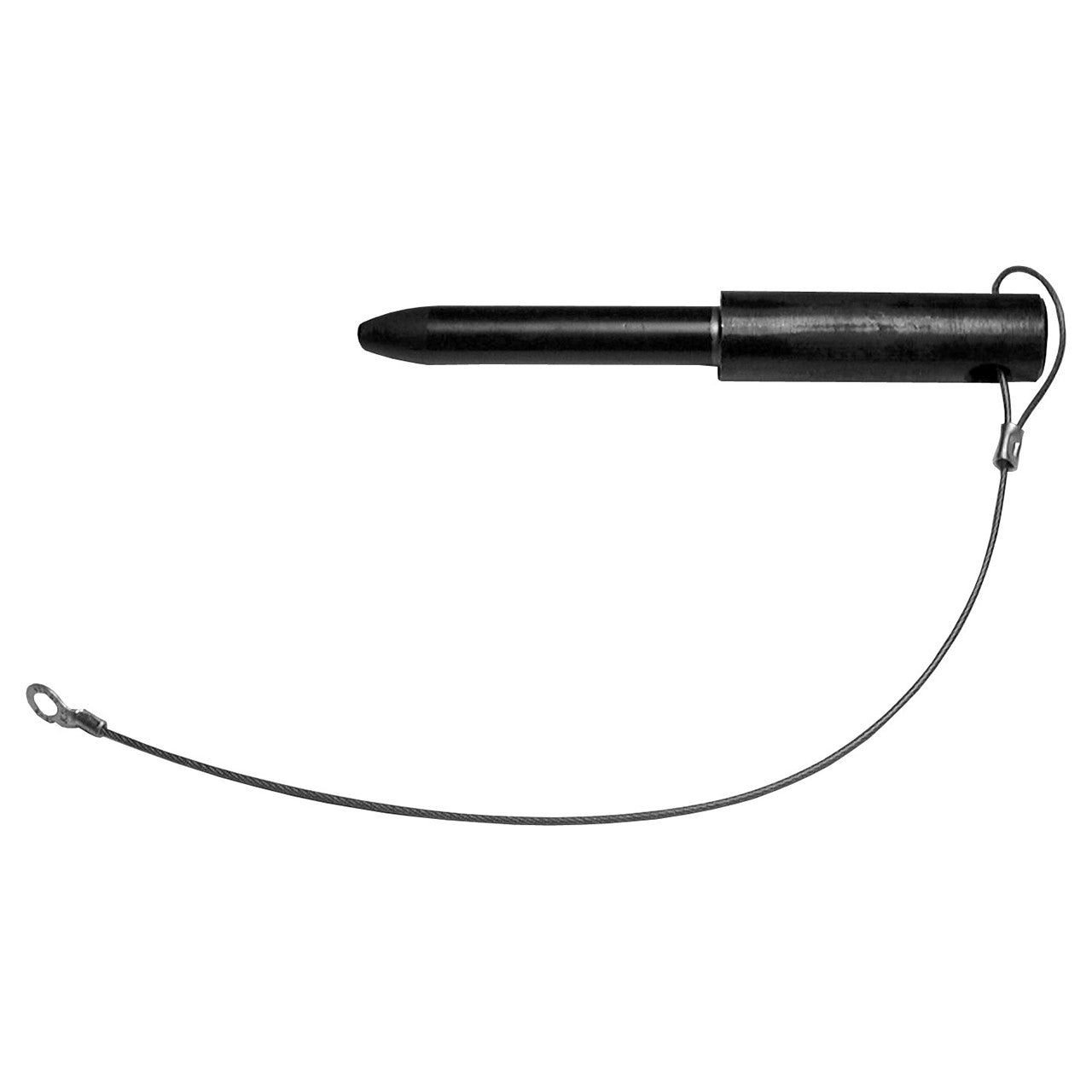

Optional Cable
To order Shoulder Pins with a standard cable assembly attached, add "-C" to the part number, (#2 cable size, 10-12" long, with a terminal at the free end for a #10 or M5 attachment screw).
Material
| Item | Material | Heat Treat | Finish |
| Pin | 1215 Steel | Carburized-hardened | Black Oxide |
| Handle | 1215 Steel | - | Black Oxide |
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E (Inch) |
| 5/16" | 0.3125" | 2-1/2" | 2-5/8" | 9/16" | 1/4" |
