Slotted-Heel Clamp Straps
Heavy-duty steel version of the Slotted-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a slot underneath to slide straight back for clear loading. An indentation at the rear of each side provides a secure finger grip for retracting the clamp. Made in USA.
Application Information
Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading.

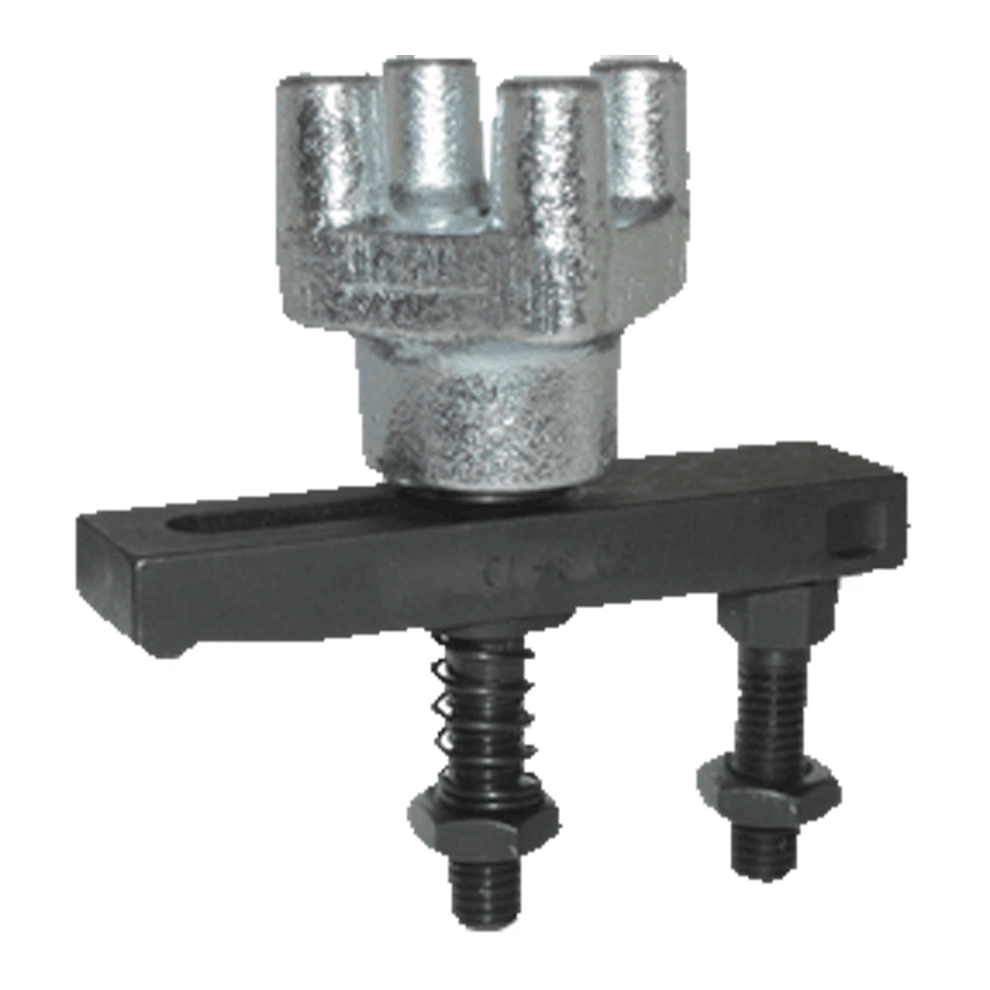

Assembly with Bar Knob & Spherical Washer (-6)
This clamp assembly includes a Slotted-Heel Clamp Strap plus the following Items:
- Bar Knob
- Spherical Washer
- Clamping Stud
- Clamp Spring
- Flat Washer
- Jam Nut
- Clamp Rest
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Thread Size (Inch) | A (Inch) | B (Inch) | C (Inch) | E (Inch) |
| 1/2-13" | 4" | 1-1/4" | 5/8" | 1-3/4" |
