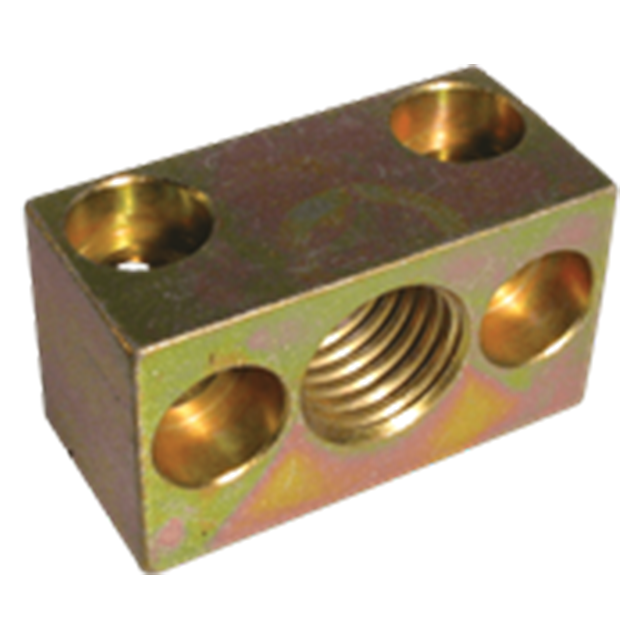

Bar-Lok Mounting Blocks
These mounting blocks are tapped to fit the threaded collar of a Bar-Lok Screw Clamp. Two sets of mounting holes allow either base mounting or wall mounting. Made in USA.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Bar-Lok Mounting Blocks | 1018 Steel | - | Zinc Plated Yellow Chromate | Yes | Yes |
Parts Specification
| A Thread (Inch) | B (Inch) | C (Inch) | D (Inch) | E (Inch) | F (Inch) | G (Inch) | H Diameter (Inch) |
| 3/4-10" | 13/16" | 2-1/8" | 1-3/8" | 1-1/4" | 1-3/8 | 7/16" | 5/16 or M8" |
Warning:
This Product Can Expose You To Materials And/Or Chemicals Including Arsenic, Lead, And Other Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm. For more information, visit www.P65Warnings.ca.gov
