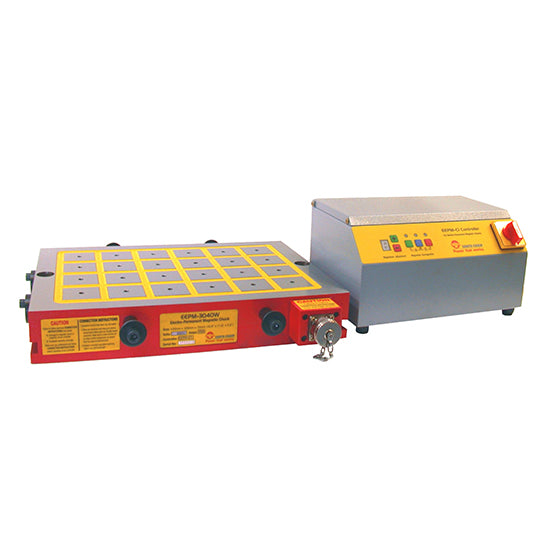

Variety of sizes to best fit your specific needs. Turn chuck ON/OFF in only a few seconds. Chuck will not lose magnetism if a power loss occurs. Induction blocks and subplates provide additional setup options for holding small parts or warped stock. Machine freely on 5-sides & top so you can cut the full part profile in only 1 operation. Reduce setup & part change by 50% or more. Very uniform holding = No workpiece deformation. Easily integrate with pallet changing and tombstone systems used in production cells.
Product Specifications
| UNSPSC Code | 27112109 |
| L x W x H | 34.3" x 11.8" x 2.8" |
| Poles | 48 |
| Holding Power | 33,000 lbs. |
| Chuck Weight | N/A |
| Subplate | EEPM-3090ISP |
| Controller | EEPM-C2 |
| L | N/A |
| W | N/A |
| H | N/A |
| Channels | N/A |
| Qty. Chucks | N/A |
| Length | N/A |
| No. Faces | N/A |
| Poles | 48 |
| Dim.(O.D. x I.D. x H) | N/A |
| Weight | 271 lbs. |
| O.D. | N/A |
| Max. Load | N/A |
| Squareness | N/A |
| Repeatability | N/A |
| Min. Stock Thickness | N/A |
| Pole Pitch (P) | N/A |
| Volts | N/A |
| Amps | N/A |
