Techniks

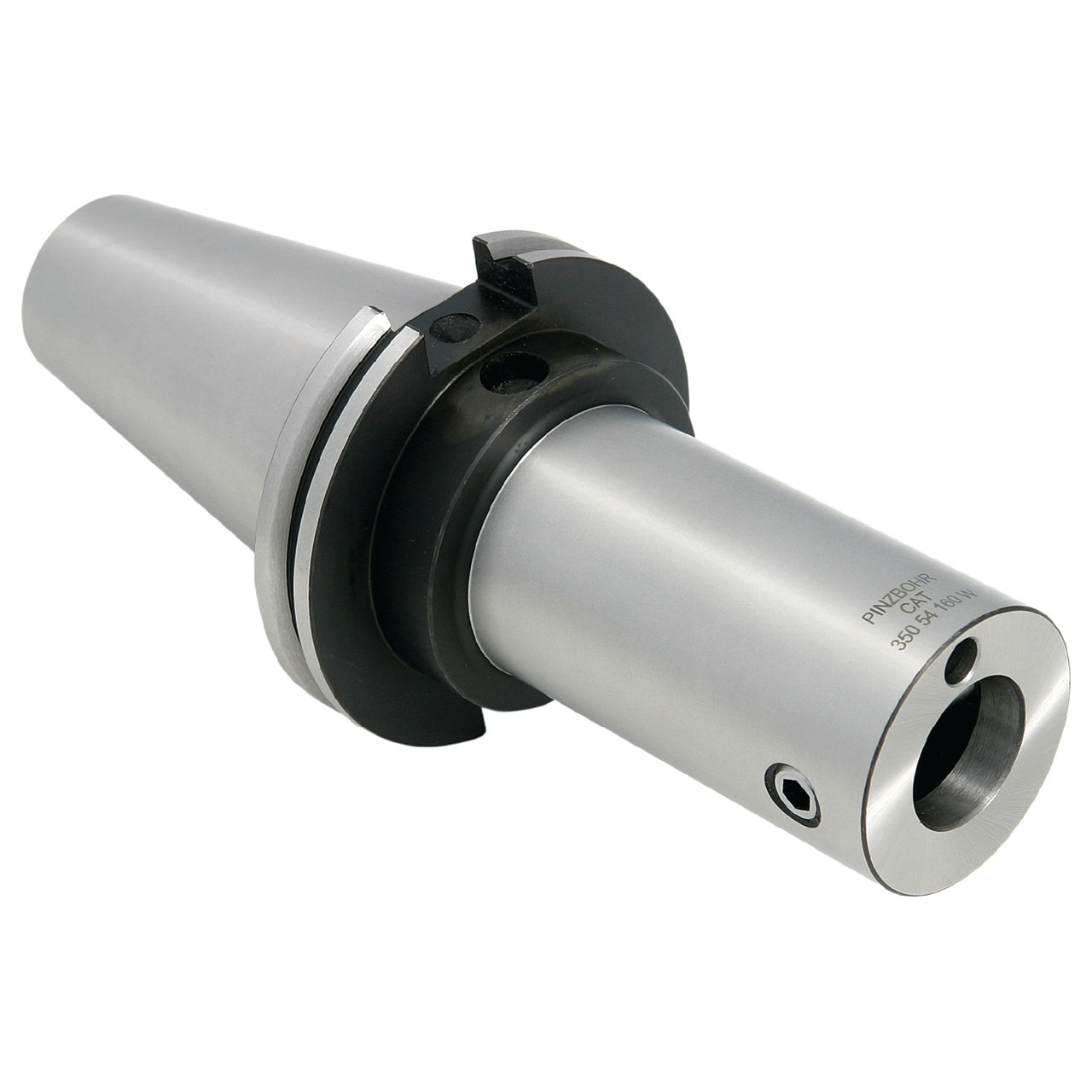

Techniks 6134337 | CAT40 Taper x 85.00mm Diameter x 50.00mm Size x 7.870" Depth x 4.880" Projection Length Boring Toolholder

Techniks 6134337 | CAT40 Taper x 85.00mm Diameter x 50.00mm Size x 7.870" Depth x 4.880" Projection Length Boring Toolholder

SKU: 55031506

$818.73 USD
$827.00 USD $818.73 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

Features:

  • Exceeds industry standards for taper accuracy and concentricity
  • Two offset axial tapered locking screws maximize rigidity and allow fast tool changes
  • Use extensions to increase boring depth

Product Specifications
Taper CAT40
Bore Depth (Inch) 7.87"
Bore Size (mm) 50mm
Body Diameter (mm) 85mm
Projection (Inch) 4.88"
Overall Projection (Inch) 8.82"
