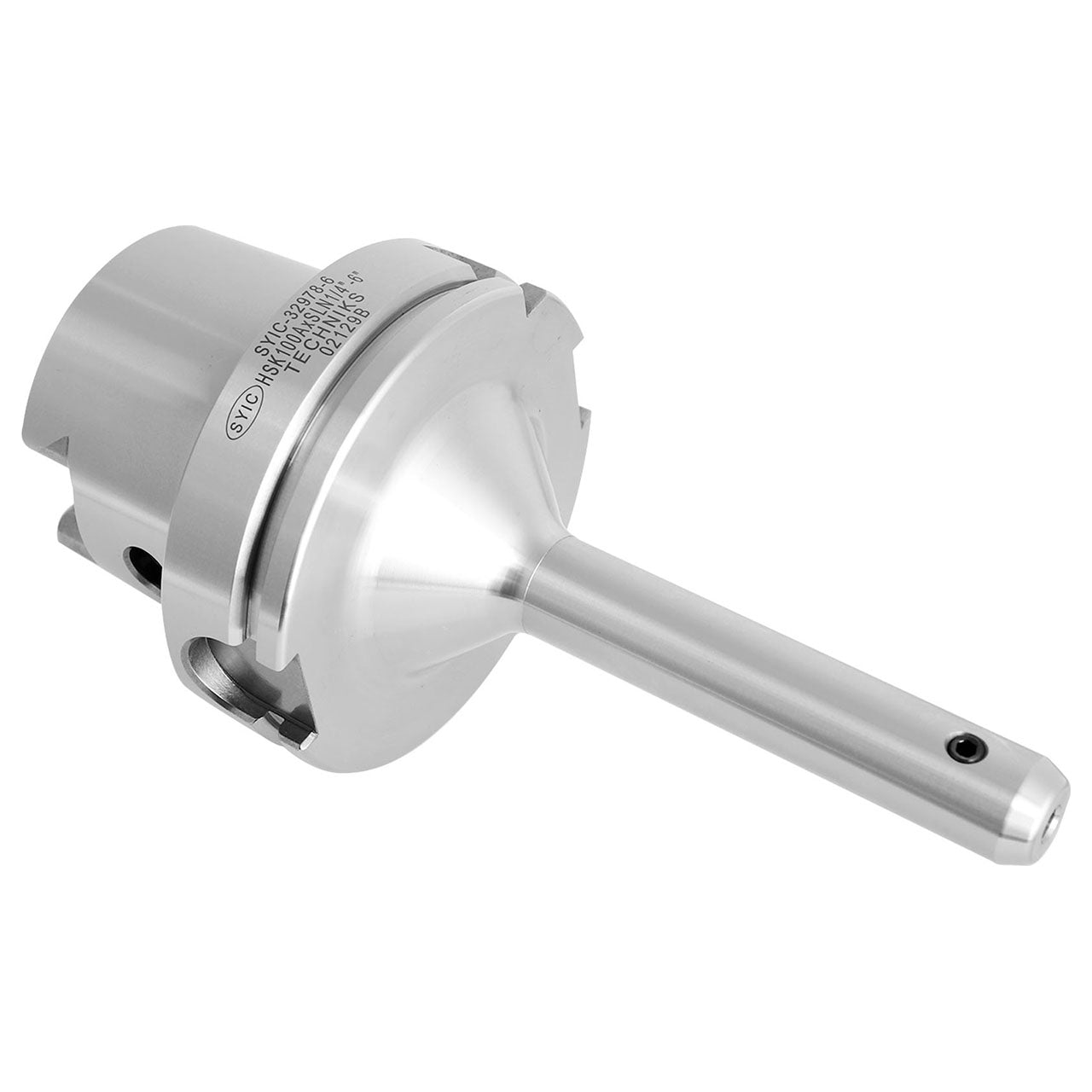

Features:
- H5 bore tolerance for improved concentricity and tool life
- Balance to 15,000 RPM @ G6.3
- Use coolant tubes for through-spindle coolant
Product Specifications
| Taper | HSK100A |
| Body Diameter (mm) | 75.01mm |
| Body Width (mm) | 75.01mm |
| Overall Diameter (mm) | 100mm |
| Bore Size (mm) | 32mm |
| Projection (mm) | 120mm |
| Nose Diameter (mm) | 72mm |
| Overall Length (mm) | 170mm |
| Material | 8620 Steel |
