Techniks

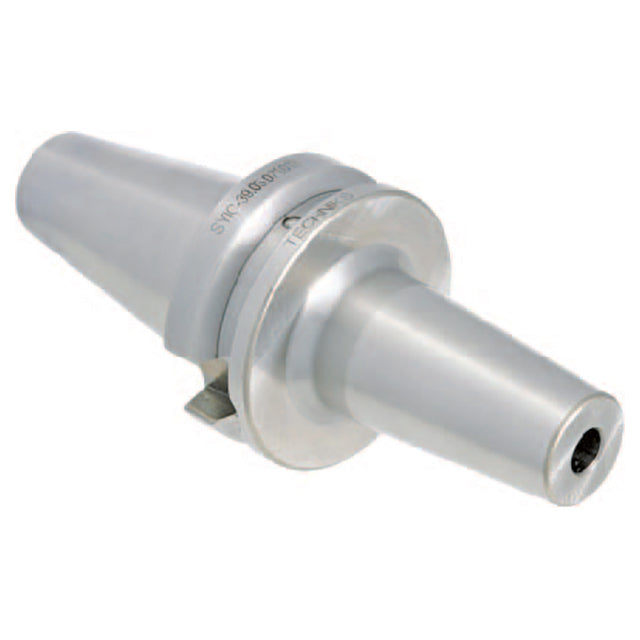

Techniks 28.651.72.400 | BT40 Taper x 1-1/4" Size x 2.090" Diameter x 4" Projection Length x 6.570" OAL Shrink-Fit Tool Holder

Techniks 28.651.72.400 | BT40 Taper x 1-1/4" Size x 2.090" Diameter x 4" Projection Length x 6.570" OAL Shrink-Fit Tool Holder

SKU: 55030993

$329.65 USD
$347.00 USD $329.65 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 1542 Grams

View full details

Features:

  • Maximum T.I.R. only 0.0001"
  • DualDRIVE for dual-contact spindles increases rigidity and accuracy
  • CoolFLEX: through spindle and DIN-B coolant enabled

Product Specifications
Taper SBT40
Taper Diameter (Inch) 1.75"
Body Diameter (Inch) 2.09"
Overall Diameter (Inch) 2.48"
Bore Size (Inch) 1.25"
Projection Length (Inch) 4"
Nose Diameter (Inch) 1.81"
Overall Length (Inch) 6.57"
Nose Length (Inch) 2.28"
