Techniks

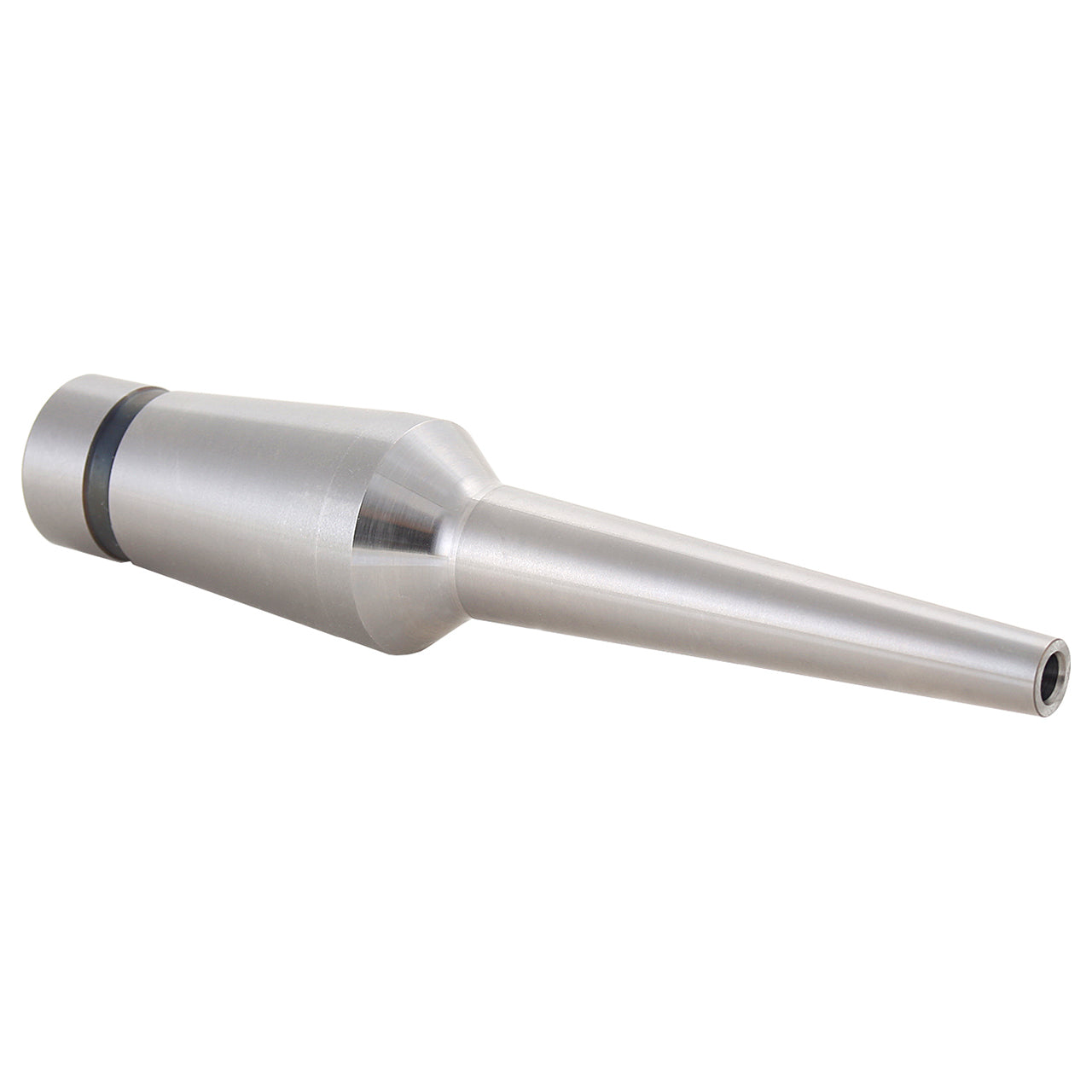

Techniks 258.SFS12.10.055-HT | SFS12 Taper x 10.00mm Size x 17.40mm Diameter x 55.00mm Projection Length x 111.80mm OAL Steel Shrink-Fit Tool Holder

Techniks 258.SFS12.10.055-HT | SFS12 Taper x 10.00mm Size x 17.40mm Diameter x 55.00mm Projection Length x 111.80mm OAL Steel Shrink-Fit Tool Holder

SKU: 55041094

$179.20 USD
$256.00 USD $179.20 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 200 Grams

View full details

Features:

  • H13 tool steel for easy tool changes
  • Compatible with other holders
  • Coolant thru capable

Product Specifications
Taper SFS12
Taper Diameter (mm) 26mm
Body Diameter (mm) 17.4mm
Overall Diameter (mm) 18mm
Bore Size (mm) 10mm
Projection Length (mm) 55mm
Nose Diameter (mm) 13mm
Overall Length (mm) 111.8mm
Nose Length (mm) 42mm
