Techniks mission is to provide high-quality and innovative solutions that optimize manufacturing processes for customers engaged in metalworking, composites machining, and woodworking to meet the most challenging applications, improve machining processes, and create cost efficiencies.

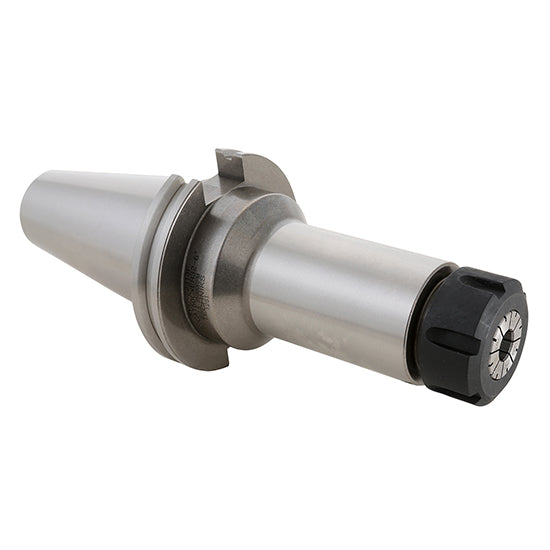

Techniks Precision CoolFLEX Collet Chuck holders Holders offer coolant capability either through the spindle or through the flange (DIN B). Simply remove two stop screws for DIN B. The holder is balanced to 25,000 RPM at G2.5 and achieves T.I.R. of 0.0001" or better from taper to collet pocket. Each holder is Techniks Certified for accuracy and balance and comes with a complete lab report.Product Specifications
| UNSPSC Code | 27112807 |
| Collet Series | ER40 |
| Body Dia-Workpiece Side (in) | 2.48 |
| Body Dia-Workpiece Side (mm) | 63 |
| Gage Length (in) | 8 |
| Gage Length (mm) | 203.2 |
| Gage Length-Face Contact (in) | 7.87 |
| Gage Length-Face Contact (mm) | 199.8 |
| Lock Nut Diameter (in) | 2.48 |
| Lock Nut Diameter (mm) | 63 |
| Overall Length (in) | 12 |
| Overall Length (mm) | 304.8 |
| Material | 8620 Steel |
| Taper | CAT50 |
| Overall Diameter (in) | 3.88 |
| Overall Diameter (mm) | 98.43 |
| Unit of Tool | Metric or Inch |
| Type | V-Flange Collet Chuck |
| Style | Single Ended |
| Capacity Range (in) | 0.086" - 1.02" |
| Capacity Range (mm) | 2.2 - 26mm |
| Balanced to | 25,000 RPM at G2.5 |
