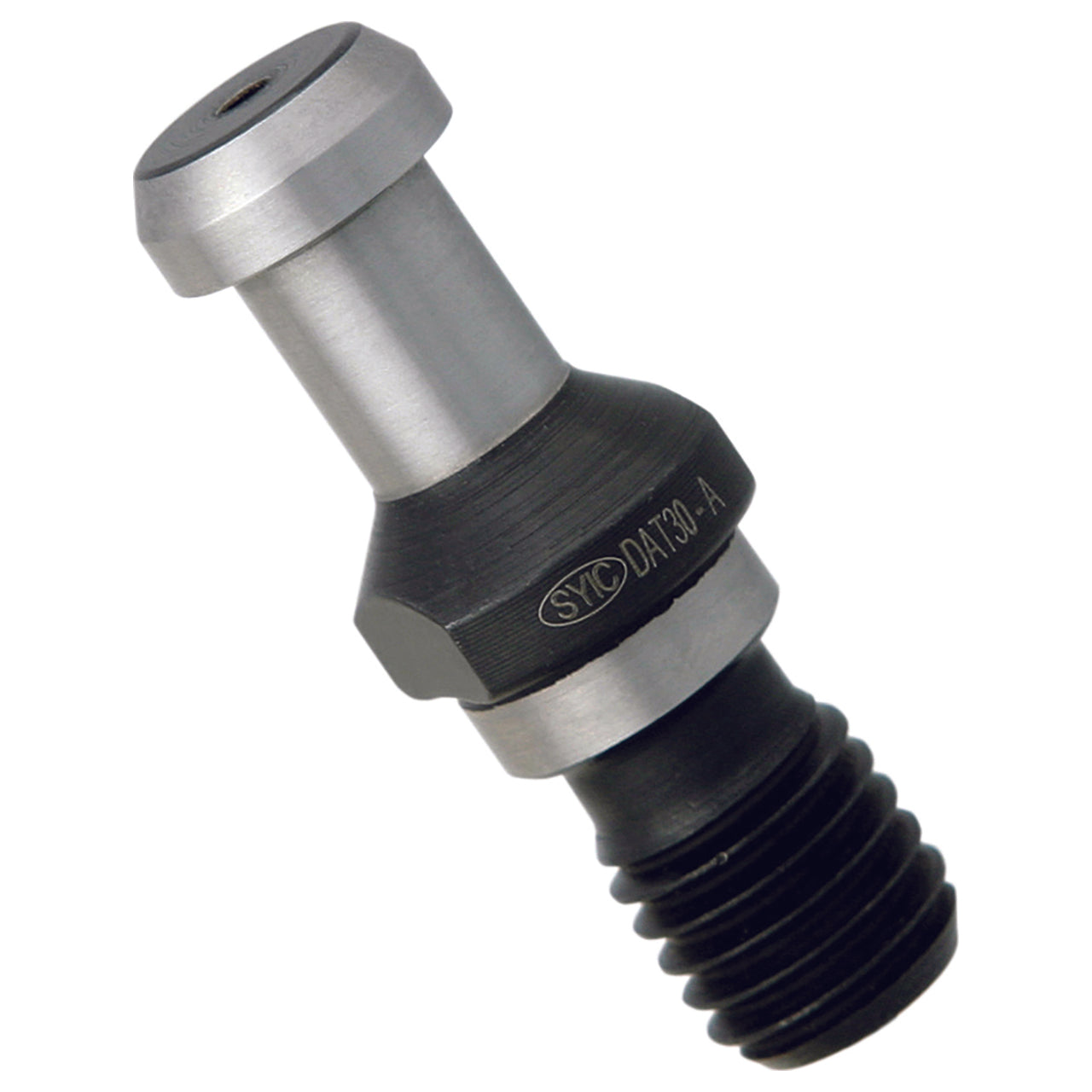

Features:
- Rolled threads maintain material grain structure improving thread strength up to 20%
- Each MegaFORCE Retention knob is magnetic particle tested to ensure material integrity and physical soundness
- Tested at 2.5X the pulling forces of the drawbar
Product Specifications
| Taper Size | BT30 |
| Degree | 60 Degree |
| Overall Diameter (mm) | 16.5mm |
| Head Diameter (mm) | 11mm |
| Neck Diameter (mm) | 7mm |
| Body Diameter (mm) | 12.5mm |
| Flange to Top Length (mm) | 23mm |
| Flange to Center of head Length (mm) | 18mm |
| Thread | M12 |
