Features:

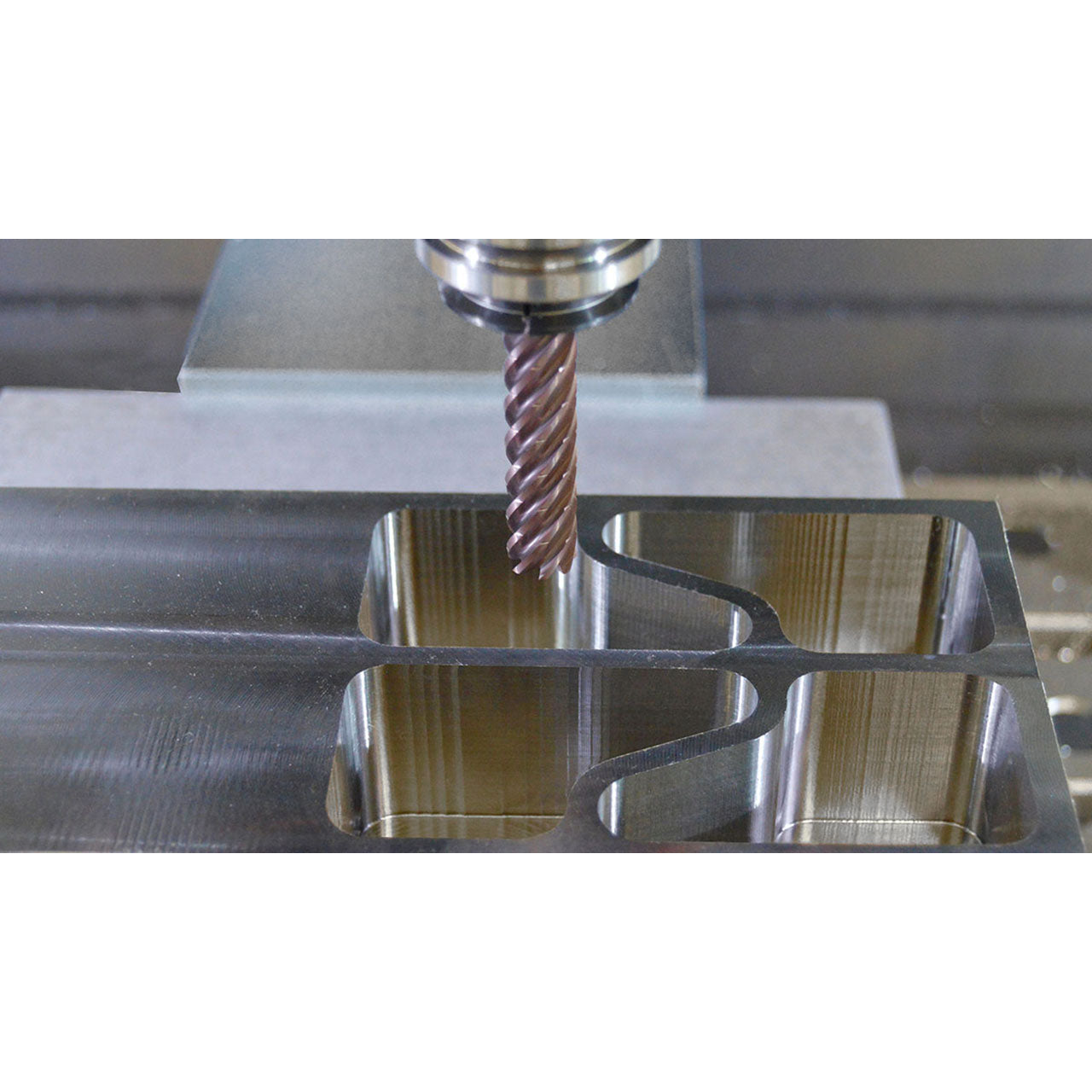

- Specializes in deep axial trochoidal and high-speed milling applications
- Optimized core improves rigidity, chip flow and reduces deflection

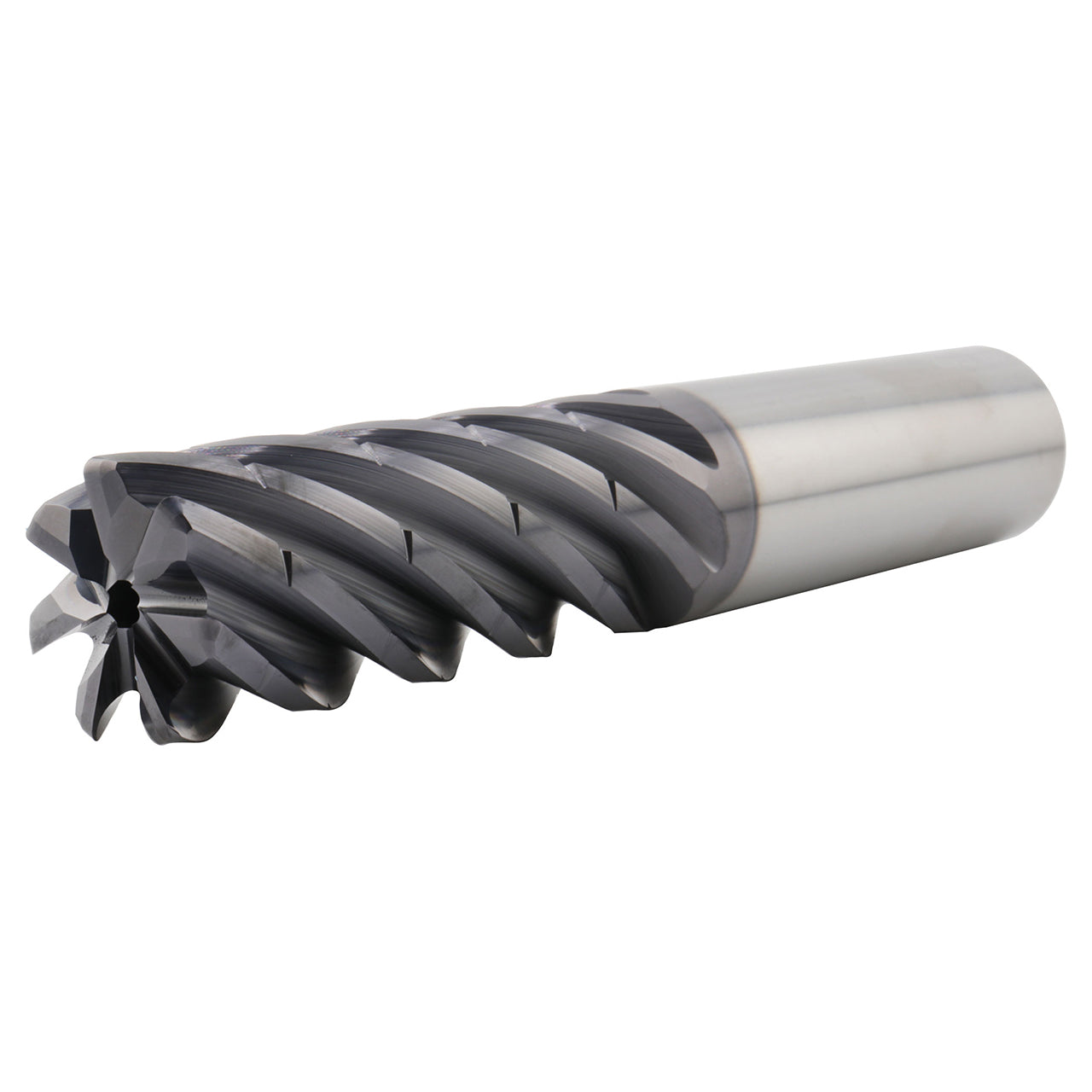

- Chip Breaker design breaks up chips from the long flute length allowing for better chip flow and evacuation in deep pocketing operations
Product Specifications
| Manufacturer Part Number | 77506 |
| Cutting Diameter (Inch) | 1" |
| Cutting Diameter (Decimal Inch) | 1.000" |
| Cutting Diameter (mm) | 25.40mm |
| Shank Diameter (Inch) | 1" |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Length of Cut (Inch) | 4" |
| Length of Cut (Decimal Inch) | 4.000" |
| Length of Cut (mm) | 101.60mm |
| Overall Length (Inch) | 7" |
| Overall Length (Decimal Inch) | 7.000" |
| Overall Length (mm) | 177.80mm |
| Corner Radius (Decimal Inch) | 0.120" |
| Corner Radius (mm) | 3.05mm |
| Shank Diameter Tolerance | h6 |
| Flute Type | Spiral |
| Number of Flutes | 7 |
| Center Cutting | No |
| Chip Breaker | Yes |
| High Performance | Yes |
| Coating | AlTiN (Ti-NAMITE-A) |

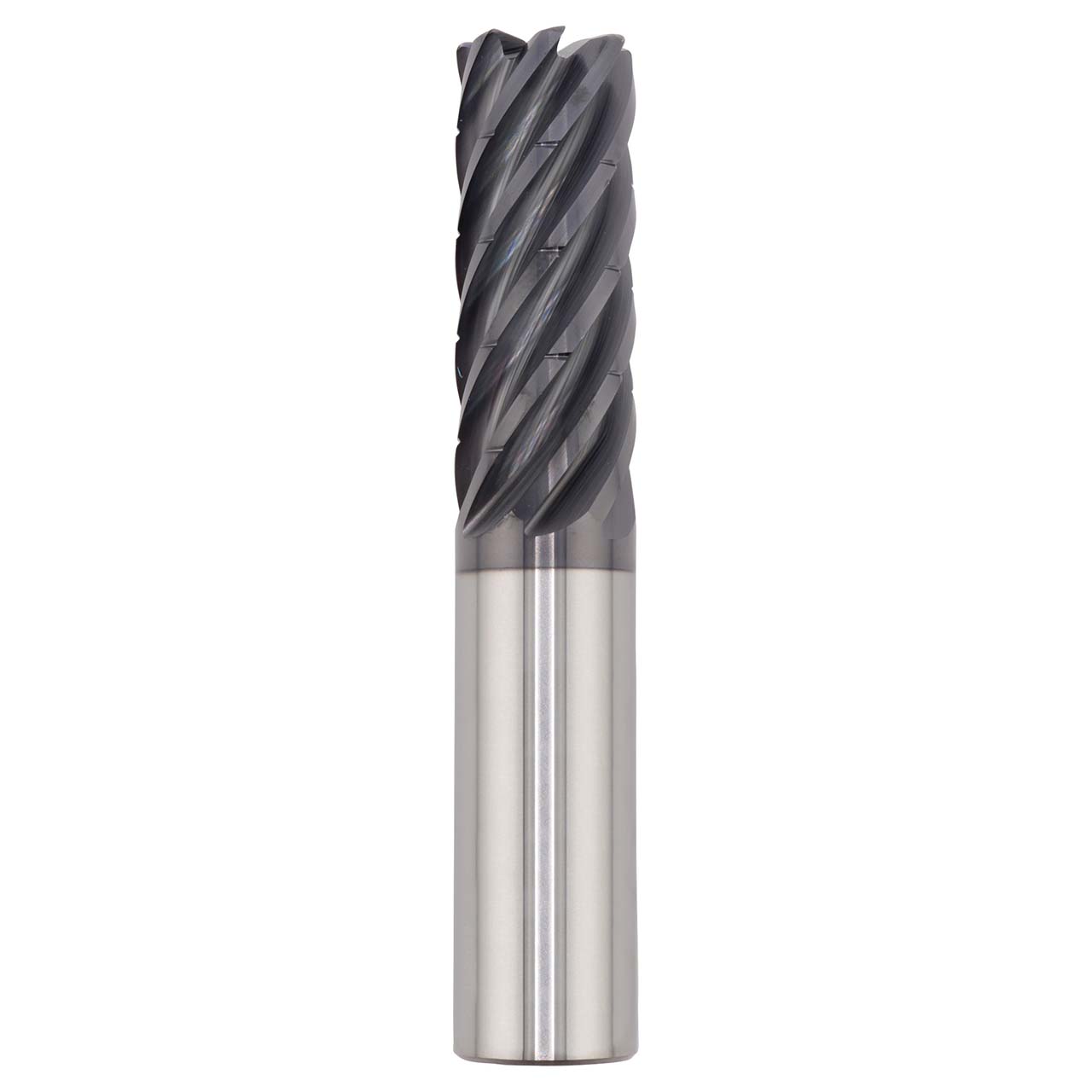

| Product Type | Chip Breaker Corner Radius End Mill |
