Features:

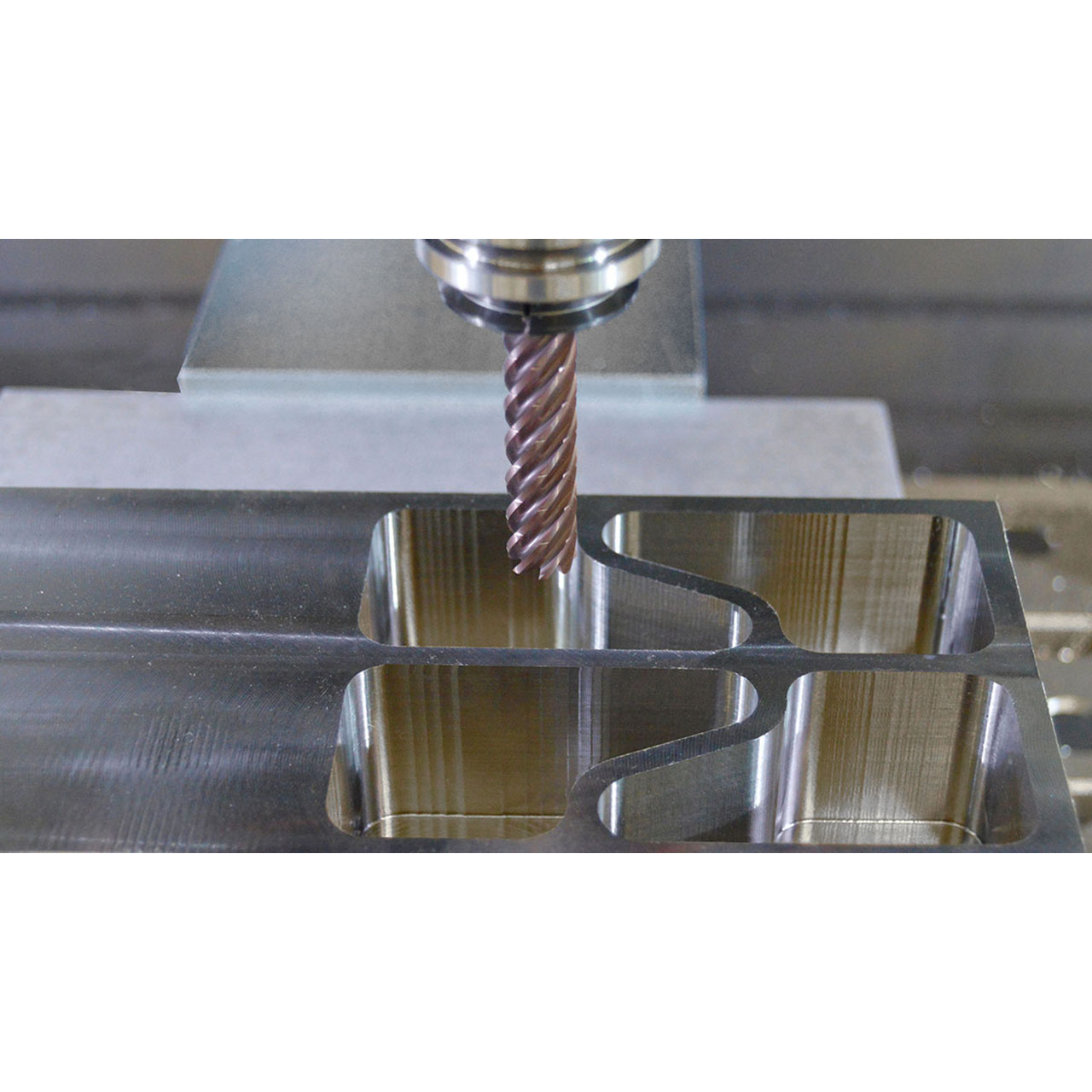

- Specializes in deep axial trochoidal and high-speed milling applications
- Optimized core improves rigidity, chip flow and reduces deflection
Product Specifications
| Manufacturer Part Number | 77340 |
| Cutting Diameter (Inch) | 1/2" |
| Cutting Diameter (Decimal Inch) | 0.500" |
| Cutting Diameter (mm) | 12.70mm |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Inch) | 1-1/4" |
| Length of Cut (Decimal Inch) | 1.250" |
| Length of Cut (mm) | 31.75mm |
| Overall Length (Inch) | 3-1/4" |
| Overall Length (Decimal Inch) | 3.250" |
| Overall Length (mm) | 82.55mm |
| Shank Diameter Tolerance | h6 |
| Flute Type | Spiral |
| Number of Flutes | 7 |
| Center Cutting | No |
| Chip Breaker | No |
| High Performance | Yes |
| Coating | AlTiN (Ti-NAMITE-A) |

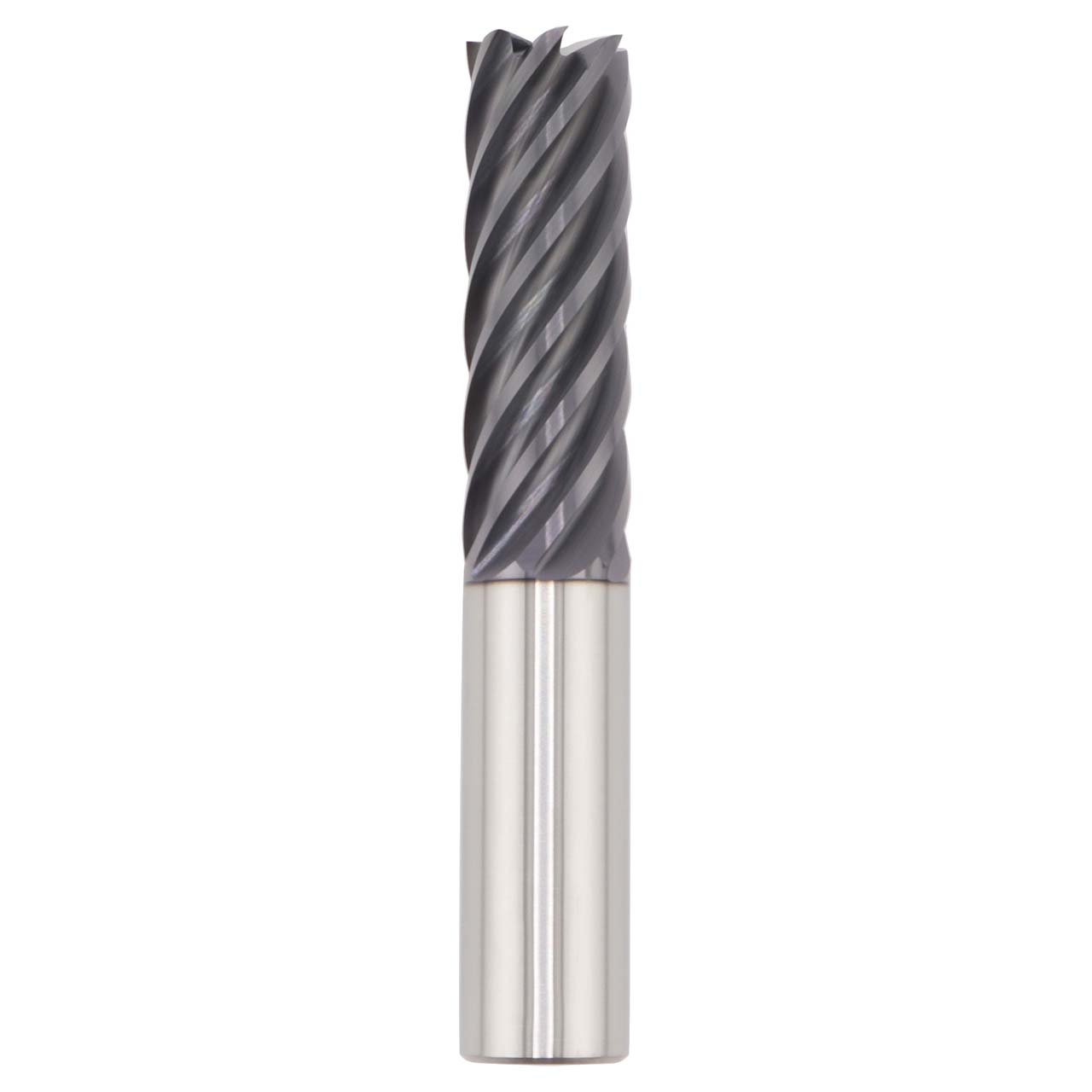

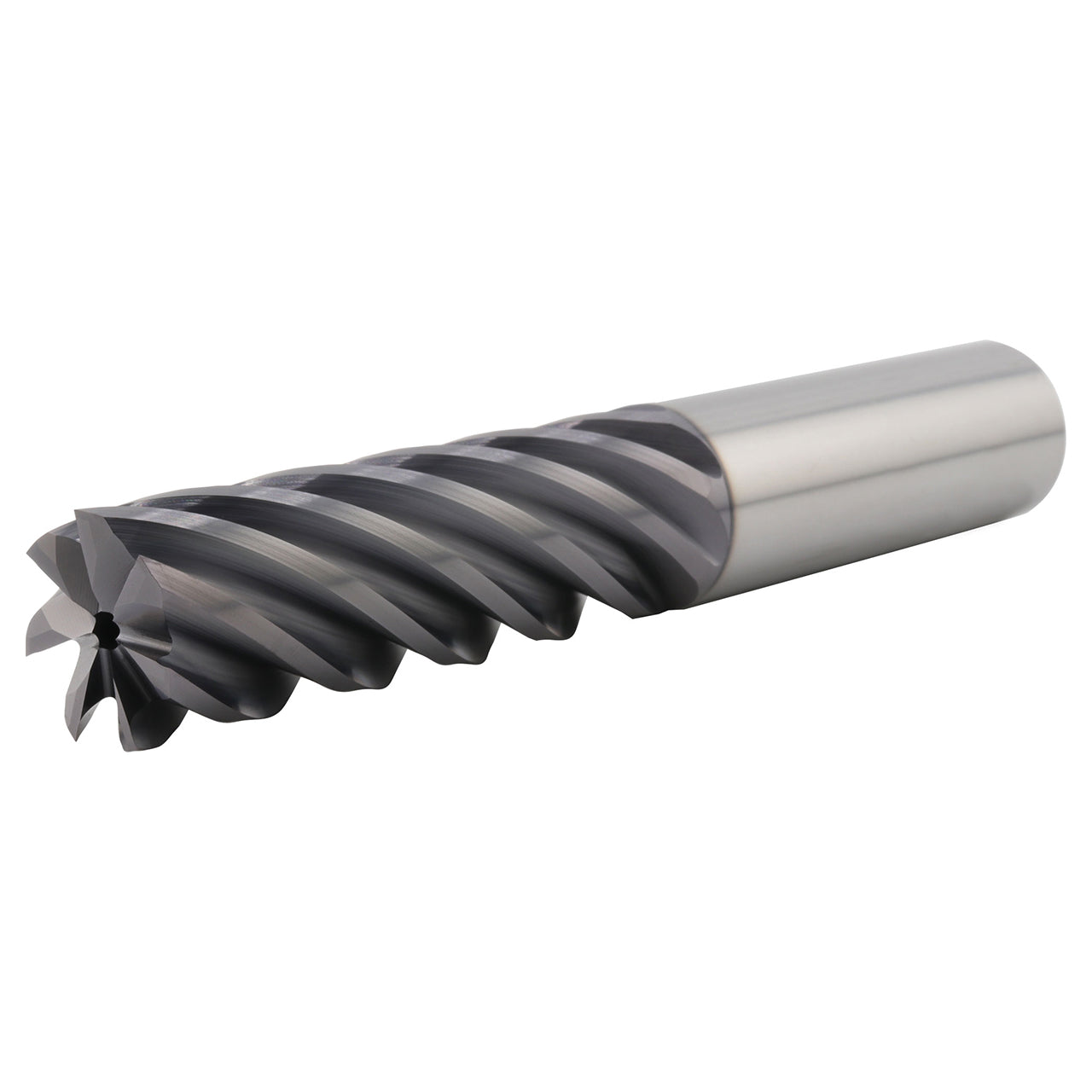

| Product Type | Square End Mill |
