Features:
- Specializes in deep axial trochoidal and high-speed milling applications
- Optimized core improves rigidity, chip flow and reduces deflection

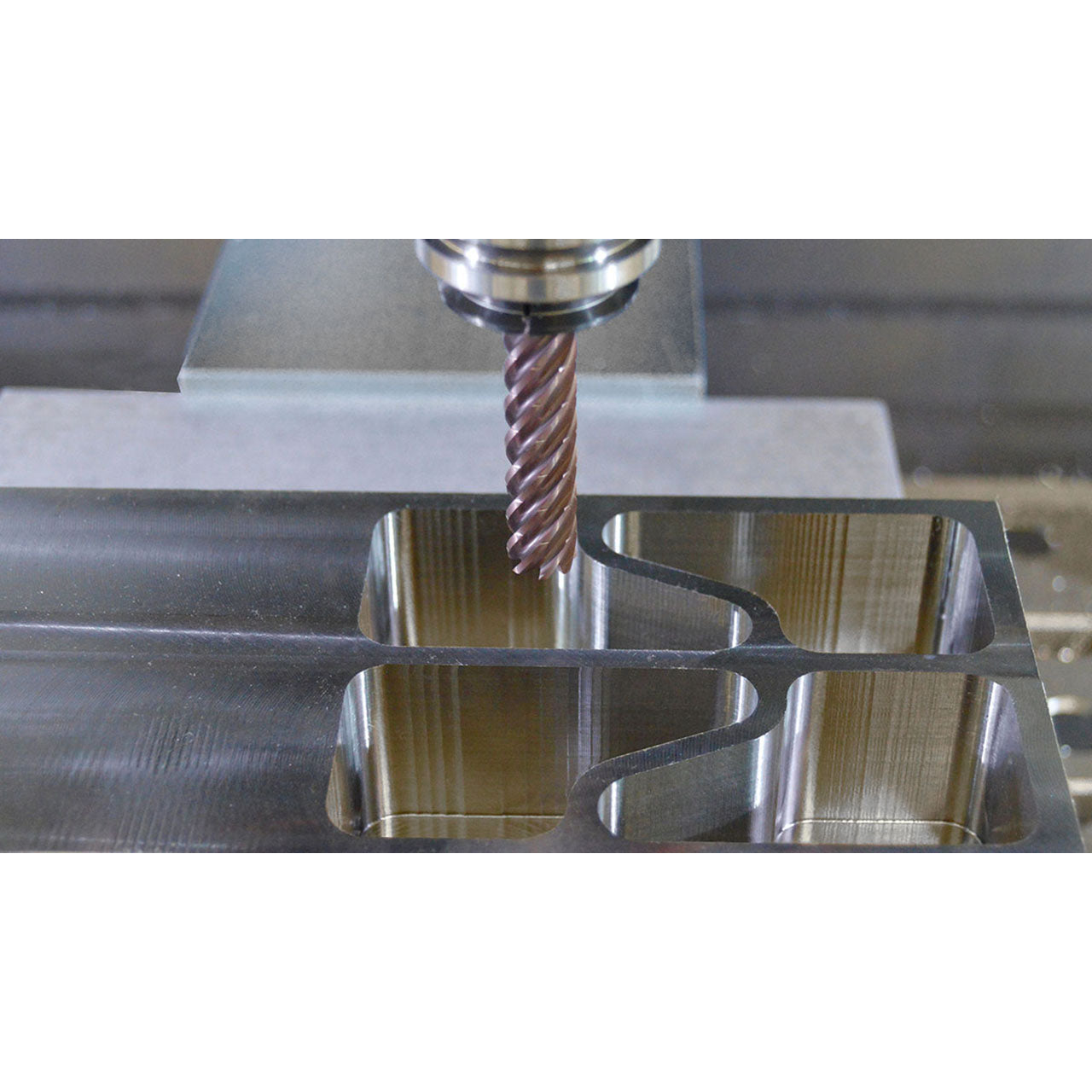

- Chip Breaker design breaks up chips from the long flute length allowing for better chip flow and evacuation in deep pocketing operations
Product Specifications
| Manufacturer Part Number | 74601 |
| Cutting Diameter (Decimal Inch) | 0.472" |
| Cutting Diameter (mm) | 12.00mm |
| Shank Diameter (Decimal Inch) | 0.472" |
| Shank Diameter (mm) | 12.00mm |
| Length of Cut (Decimal Inch) | 1.181" |
| Length of Cut (mm) | 30.00mm |
| Overall Length (Decimal Inch) | 3.268" |
| Overall Length (mm) | 83.00mm |
| Corner Radius (Decimal Inch) | 0.079" |
| Corner Radius (mm) | 2.00mm |
| Shank Diameter Tolerance | h6 |
| Flute Type | Spiral |
| Number of Flutes | 7 |
| Reach (xD) | 2.5xD |
| Center Cutting | No |
| Chip Breaker | Yes |
| High Performance | Yes |
| Coating | AlTiN (Ti-NAMITE-A) |

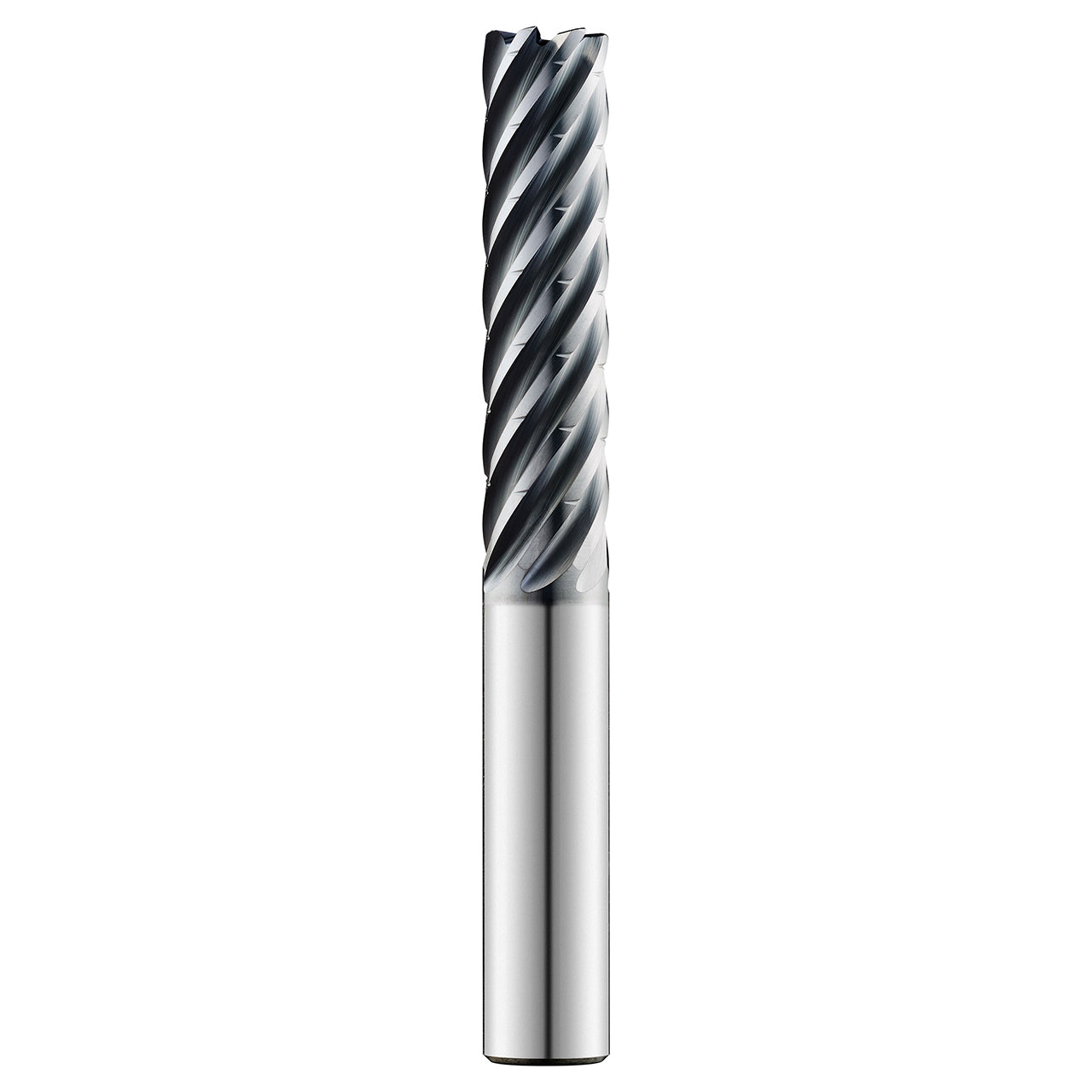

| Product Type | Chip Breaker Corner Radius End Mill |
