Features:
- Positive Radial Rake
- Variable Flute Pattern
- Open Center Design
- Long Reach

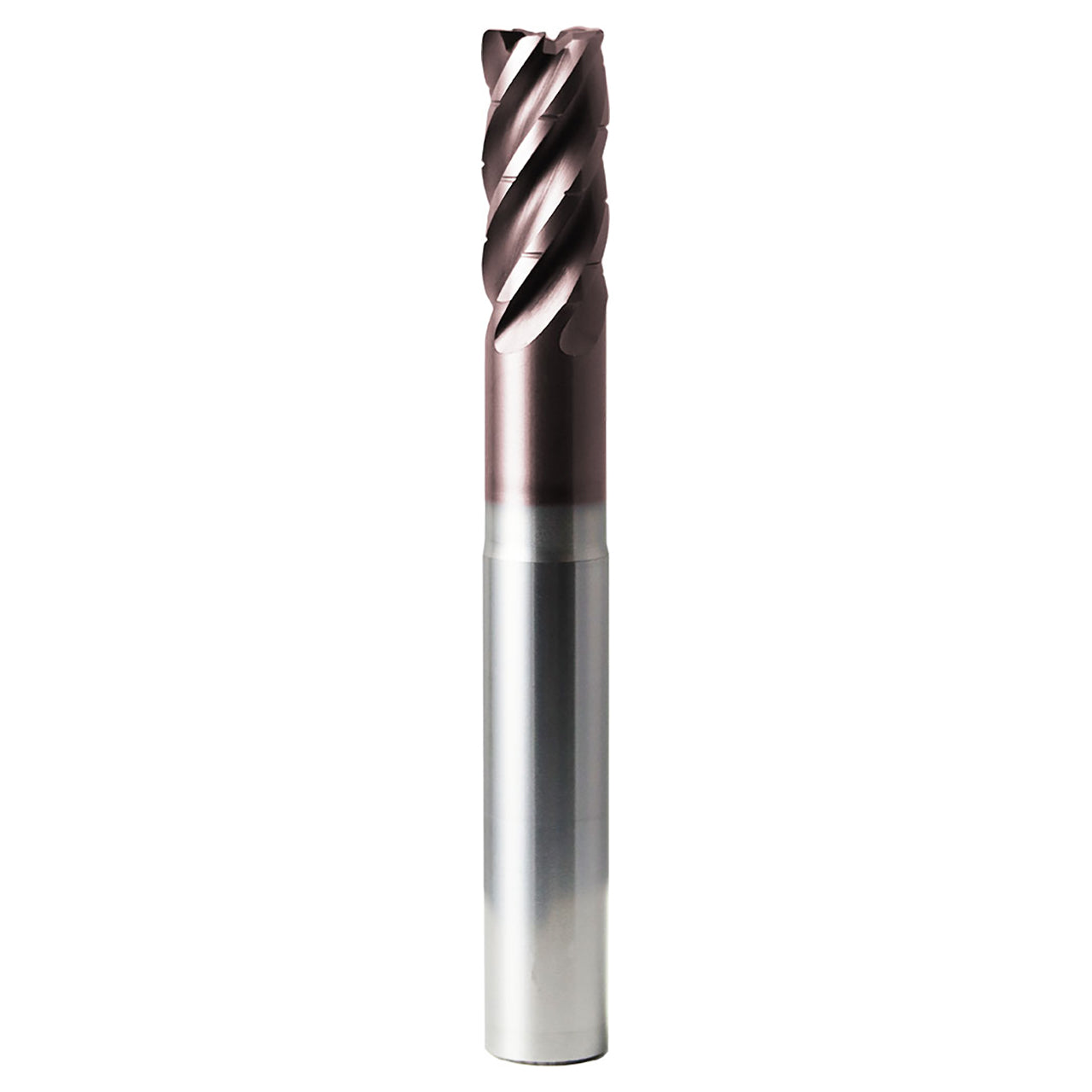

Product Specifications
| Manufacturer Part Number | 47699 |
| Cutting Diameter (Decimal Inch) | 0.472" |
| Cutting Diameter (mm) | 12.00mm |
| Shank Diameter (Decimal Inch) | 0.472" |
| Shank Diameter (mm) | 12.00mm |
| Length of Cut (Decimal Inch) | 1.024" |
| Length of Cut (mm) | 26.00mm |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (mm) | 100.00mm |
| Reach (Decimal Inch) | 1.890" |
| Reach (mm) | 48.00mm |
| Neck Diameter (Decimal Inch) | 0.449" |
| Neck Diameter (mm) | 11.40mm |
| Corner Radius (Decimal Inch) | 0.039" |
| Corner Radius (mm) | 1.00mm |
| Shank Diameter Tolerance | h6 |
| Flute Type | Spiral |
| Number of Flutes | 5 |
| Center Cutting | No |
| Chip Breaker | Yes |
| High Performance | Yes |
| Coating | TM (Ti-NAMITE-M) |
| Product Type | Chip Breaker Corner Radius End Mill |
