Features:
- An ideal balance of helix, indexing, flute depth, rake and relief
- Variable indexing for chatter supression and patented edge geometry for shearing and strength
- Chatter-free geometry allows deep cutting and high speed machining
- Enhanced corner geometry with tight tolerance corner radii

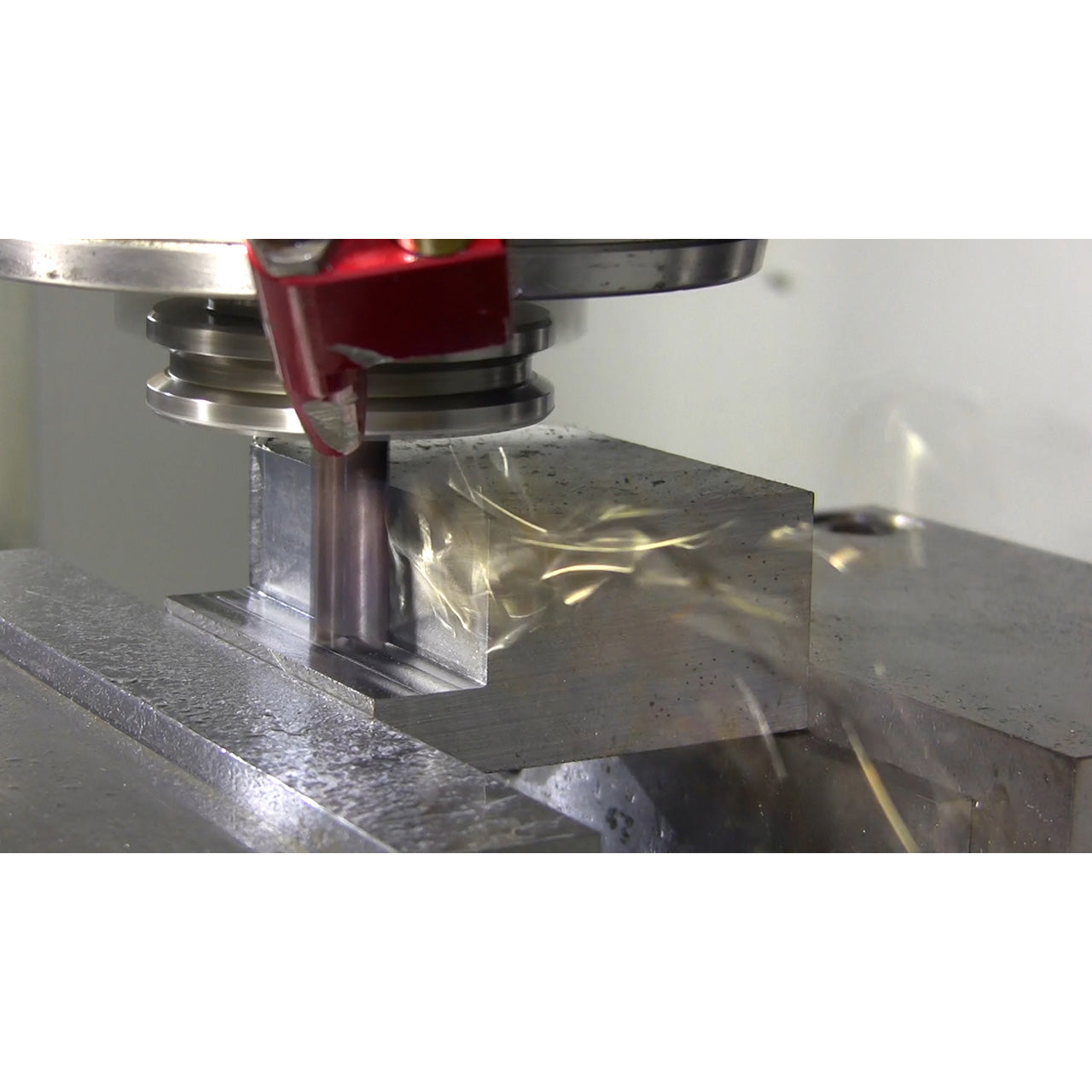

- Excels at roughing, ramping, high speed machining and finishing in a variety of materials
Product Specifications
| Manufacturer Part Number | 47629 |
| Cutting Diameter (Decimal Inch) | 0.984" |
| Cutting Diameter (mm) | 25.00mm |
| Shank Diameter (Decimal Inch) | 0.984" |
| Shank Diameter (mm) | 25.00mm |
| Length of Cut (Decimal Inch) | 2.953" |
| Length of Cut (mm) | 75.00mm |
| Overall Length (Decimal Inch) | 6.693" |
| Overall Length (mm) | 170.00mm |
| Corner Radius (Decimal Inch) | 0.158" |
| Corner Radius (mm) | 4.00mm |
| Shank Diameter Tolerance | h6 |
| Flute Type | Spiral |
| Number of Flutes | 5 |
| Center Cutting | No |
| Chip Breaker | Yes |
| High Performance | Yes |
| Coating | AlTiN (Ti-NAMITE-A) |

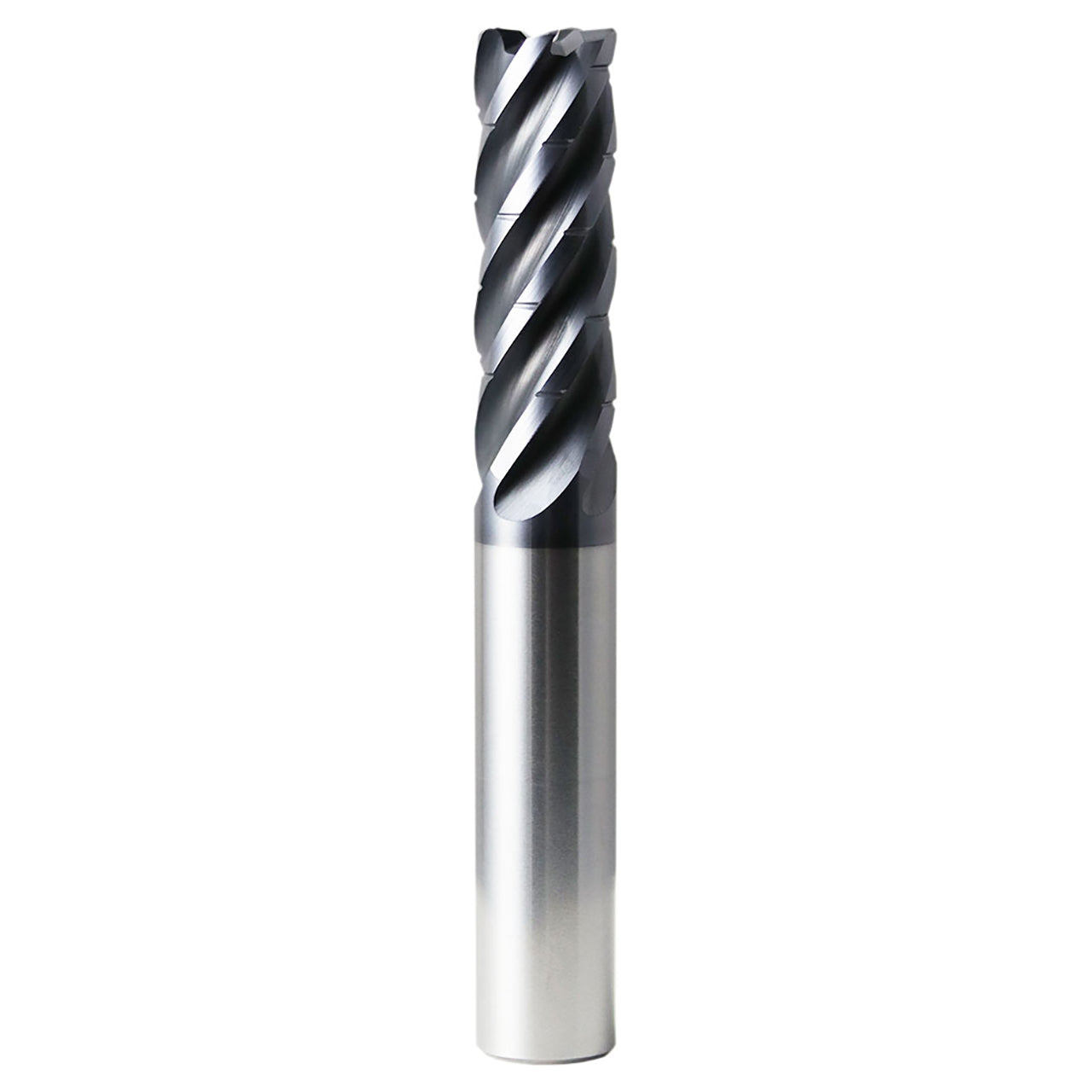

| Product Type | Chip Breaker Corner Radius End Mill |
