Features:
- Open end tooth design to facilitate a smooth and efficient chip evacuation when used in axial applications such as Plunging, Ramping, & Helical Interpolation
- Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
- Unequal helix design and Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
- End teeth featuring a wiper flat to increase corner strength and significantly improve workpiece floor surface finish
- Optimized tool life and high metal removal rates through Kyocera proprietary PVD MEGACOAT NANO (MN) coating

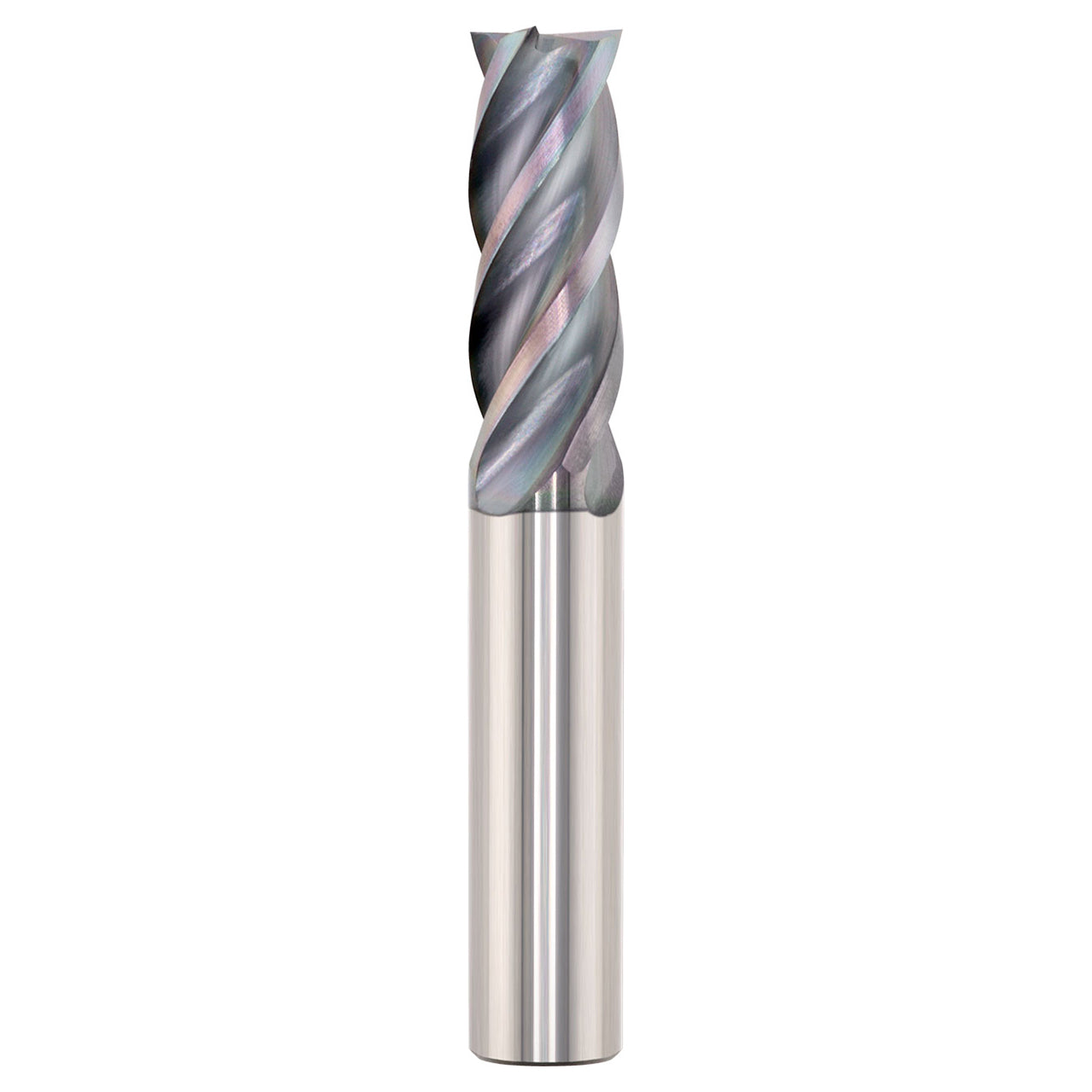

Product Specifications
| Manufacturer Part Number | 39850 |
| Cutting Diameter (Inch) | 7/16" |
| Cutting Diameter (Decimal Inch) | 0.438" |
| Cutting Diameter (mm) | 11.11mm |
| Shank Diameter (Inch) | 7/16" |
| Shank Diameter (Decimal Inch) | 0.438" |
| Shank Diameter (mm) | 11.11mm |
| Length of Cut (Inch) | 1" |
| Length of Cut (Decimal Inch) | 1.000" |
| Length of Cut (mm) | 25.40mm |
| Overall Length (Inch) | 2-3/4" |
| Overall Length (Decimal Inch) | 2.750" |
| Overall Length (mm) | 69.85mm |
| Shank Length (Inch) | 1-3/4" |
| Shank Length (Decimal Inch) | 1.750" |
| Shank Length (mm) | 44.45mm |
| Shank Diameter Tolerance | h6 |
| Flute Type | Spiral |
| Number of Flutes | 4 |
| Center Cutting | Yes |
| Chip Breaker | No |
| High Performance | Yes |
| Coating | MN (MEGACOAT NANO) |
| Product Type | Square End Mill |
