Features:
- Open end tooth design to facilitate a smooth and efficient chip evacuation when used in axial applications such as Plunging, Ramping, & Helical Interpolation
- Variable rake geometry alters and controls the cutting dynamic taking chatter suppression to an unprecedented level
- Unequal helix design and Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
- End teeth featuring a wiper flat to increase corner strength and significantly improve workpiece floor surface finish
- Optimized tool life and high metal removal rates through Kyocera proprietary PVD Ti-NAMITE-X (TX) coating
- Enhanced corner geometry with tight tolerance corner radii

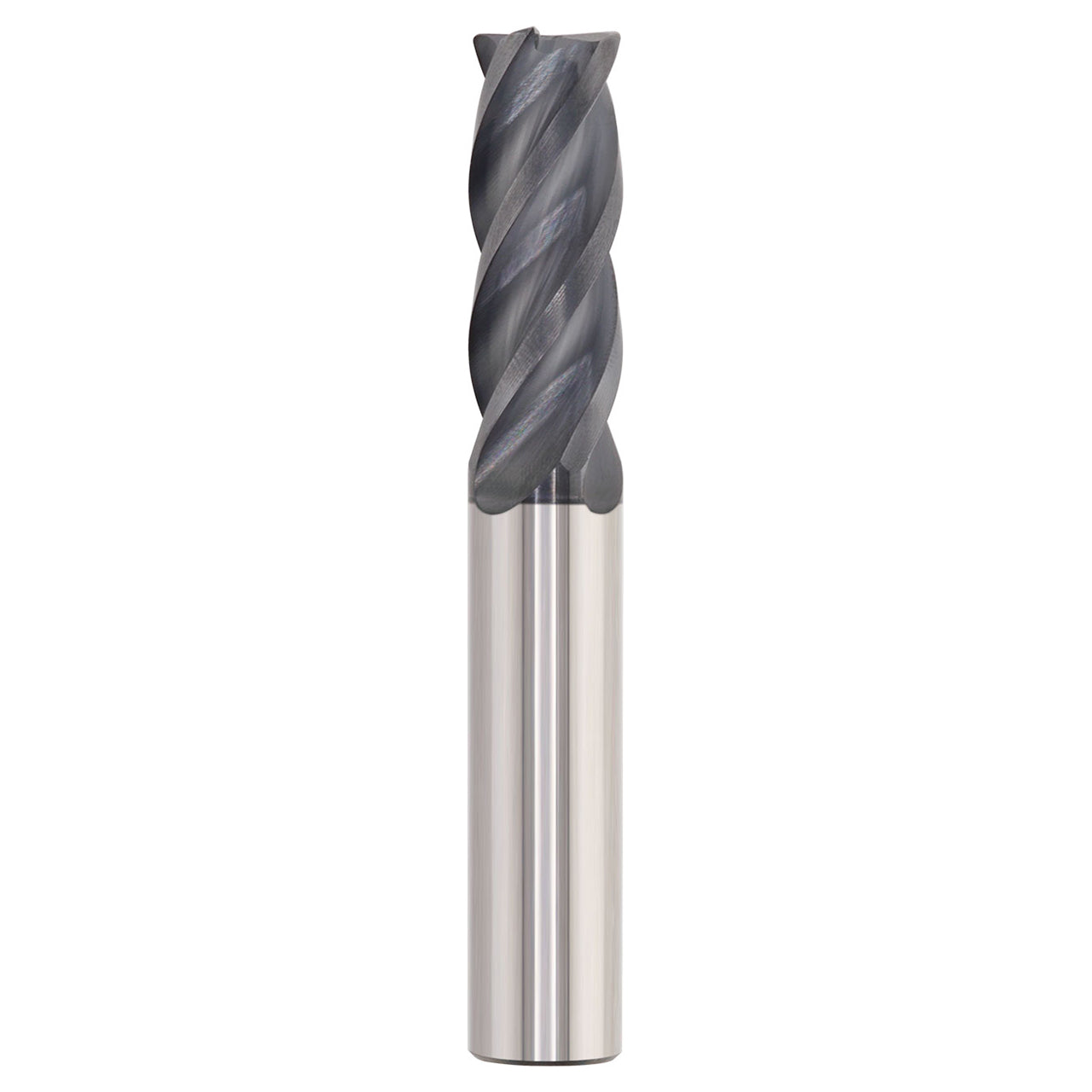

Product Specifications
| Manufacturer Part Number | 39810 |
| Cutting Diameter (Inch) | 1/4" |
| Cutting Diameter (Decimal Inch) | 0.250" |
| Cutting Diameter (mm) | 6.35mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Inch) | 1/2" |
| Length of Cut (Decimal Inch) | 0.500" |
| Length of Cut (mm) | 12.70mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (mm) | 63.50mm |
| Corner Radius (Decimal Inch) | 0.015" |
| Corner Radius (mm) | 0.38mm |
| Shank Length (Inch) | 2" |
| Shank Length (Decimal Inch) | 2.000" |
| Shank Length (mm) | 50.80mm |
| Shank Diameter Tolerance | h6 |
| Flute Type | Spiral |
| Number of Flutes | 4 |
| Center Cutting | Yes |
| Chip Breaker | No |
| High Performance | Yes |
| Coating | TX (Ti-NAMITE-X) |
| Product Type | Corner Radius End Mill |
