Features:
- An ideal balance of helix, indexing, flute depth, rake and relief
- Variable indexing for chatter supression and patented edge geometry for shearing and strength

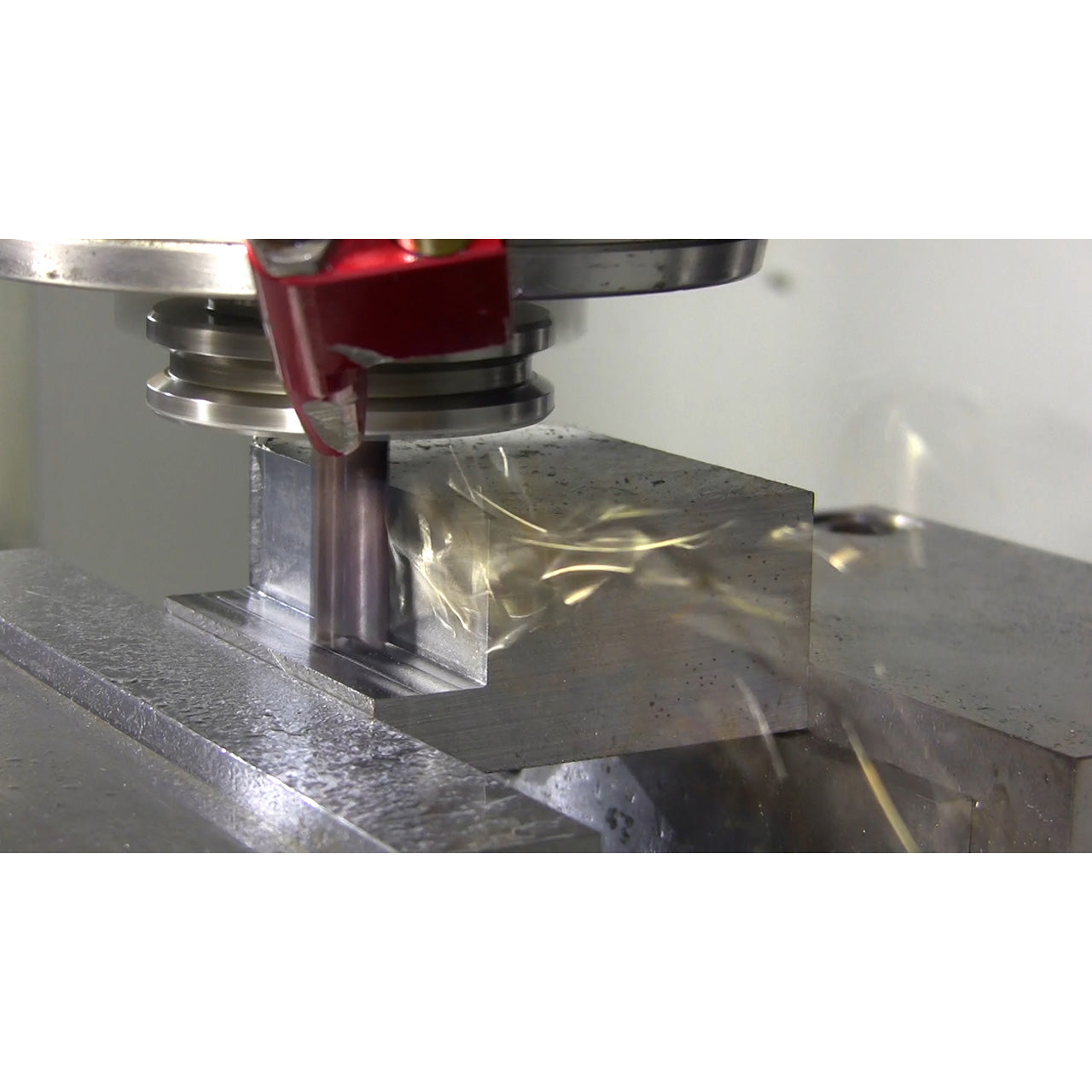

- Chatter-free geometry allows deep cutting and high speed machining
- Optimized tool life through Kyocera proprietary PVD MEGACOAT NANO (MN) coating
- Enhanced corner geometry with tight tolerance corner radii
- Excels at roughing, ramping, high speed machining and finishing in a variety of materials
Product Specifications
| Manufacturer Part Number | 38712 |
| Cutting Diameter (Inch) | 5/16" |
| Cutting Diameter (Decimal Inch) | 0.313" |
| Cutting Diameter (mm) | 7.94mm |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (Decimal Inch) | 0.313" |
| Shank Diameter (mm) | 7.94mm |
| Length of Cut (Inch) | 7/16" |
| Length of Cut (Decimal Inch) | 0.438" |
| Length of Cut (mm) | 11.11mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (mm) | 63.50mm |
| Corner Radius (Decimal Inch) | 0.015" |
| Corner Radius (mm) | 0.38mm |
| Shank Length (Inch) | 2-1/16" |
| Shank Length (Decimal Inch) | 2.063" |
| Shank Length (mm) | 52.39mm |
| Shank Diameter Tolerance | h6 |
| Flute Type | Spiral |
| Number of Flutes | 5 |
| Center Cutting | No |
| Chip Breaker | No |
| High Performance | Yes |
| Coating | MN (MEGACOAT NANO) |

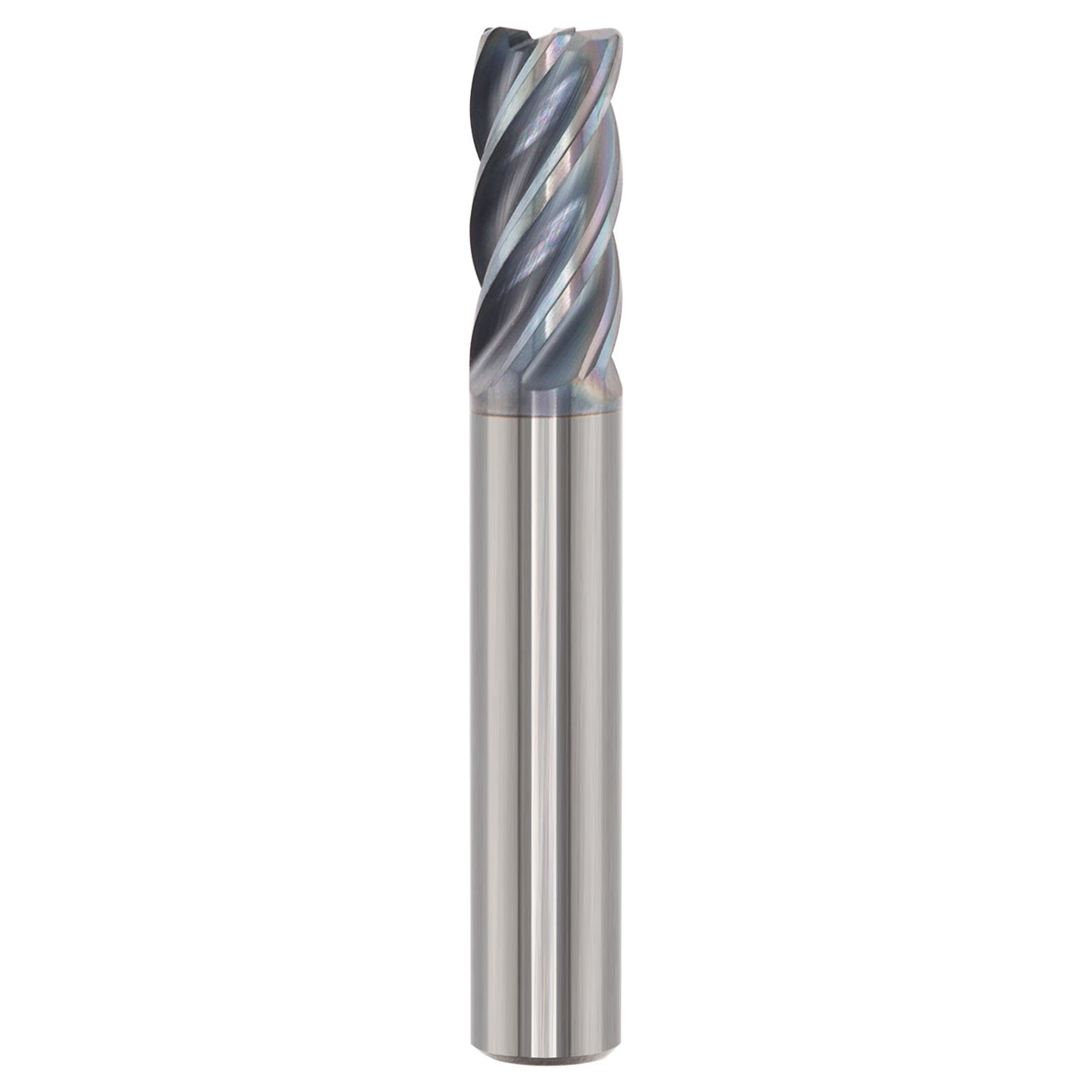

| Product Type | Corner Radius End Mill |
