Features:
- An ideal balance of helix, indexing, flute depth, rake and relief
- Variable indexing for chatter supression and patented edge geometry for shearing and strength
- Chatter-free geometry allows deep cutting and high speed machining
- Optimized tool life through Kyocera proprietary PVD MEGACOAT NANO (MN) coating
- Enhanced corner geometry with tight tolerance corner radii

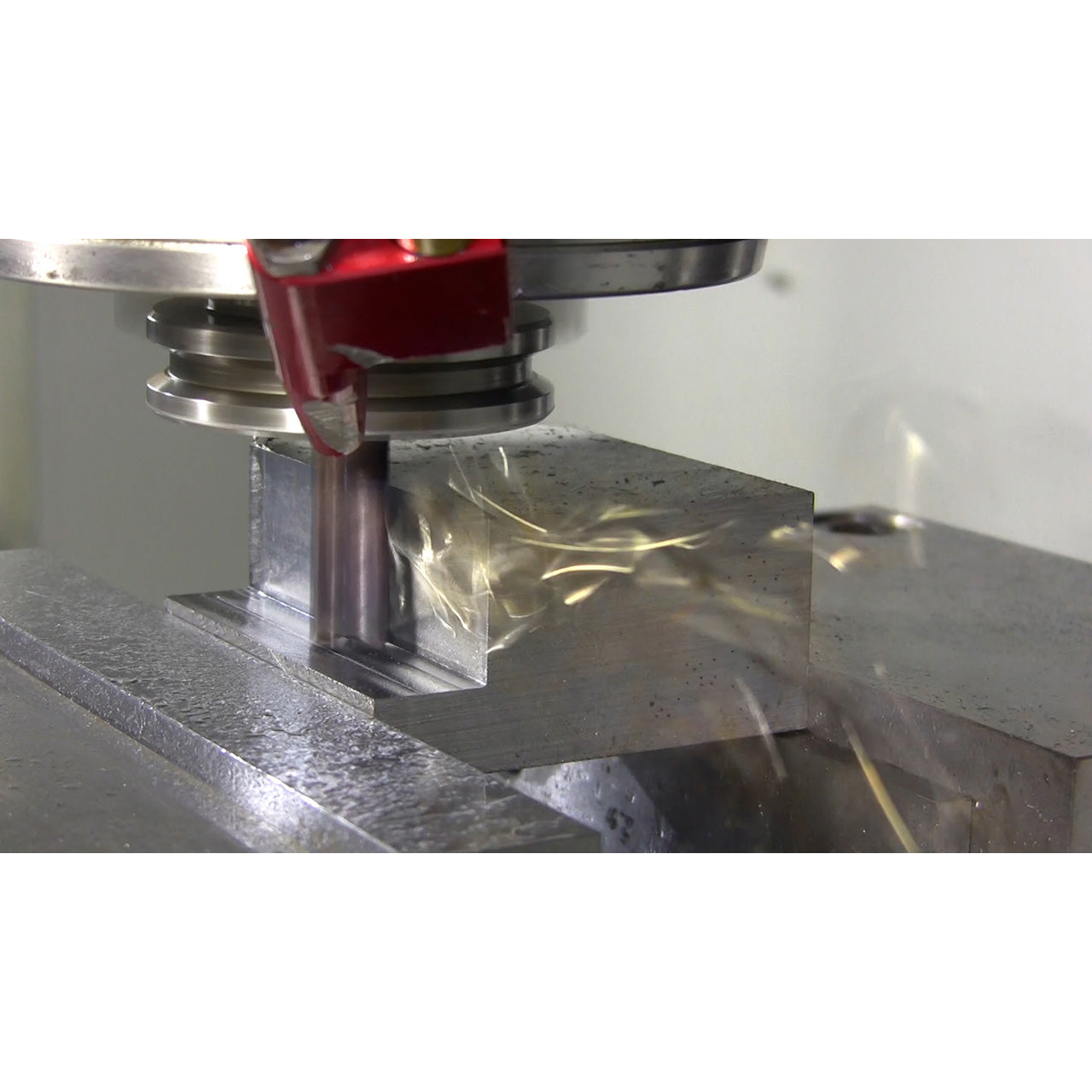

- Excels at roughing, ramping, high speed machining and finishing in a variety of materials
Product Specifications
| Manufacturer Part Number | 38701 |
| Cutting Diameter (Inch) | 1/8" |
| Cutting Diameter (Decimal Inch) | 0.125" |
| Cutting Diameter (mm) | 3.18mm |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Shank Diameter (mm) | 3.18mm |
| Length of Cut (Inch) | 3/8" |
| Length of Cut (Decimal Inch) | 0.375" |
| Length of Cut (mm) | 9.53mm |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.500" |
| Overall Length (mm) | 38.10mm |
| Corner Radius (Decimal Inch) | 0.015" |
| Corner Radius (mm) | 0.38mm |
| Shank Length (Inch) | 1-1/8" |
| Shank Length (Decimal Inch) | 1.125" |
| Shank Length (mm) | 28.58mm |
| Shank Diameter Tolerance | h6 |
| Flute Type | Spiral |
| Number of Flutes | 5 |
| Center Cutting | No |
| Chip Breaker | No |
| High Performance | Yes |
| Coating | MN (MEGACOAT NANO) |

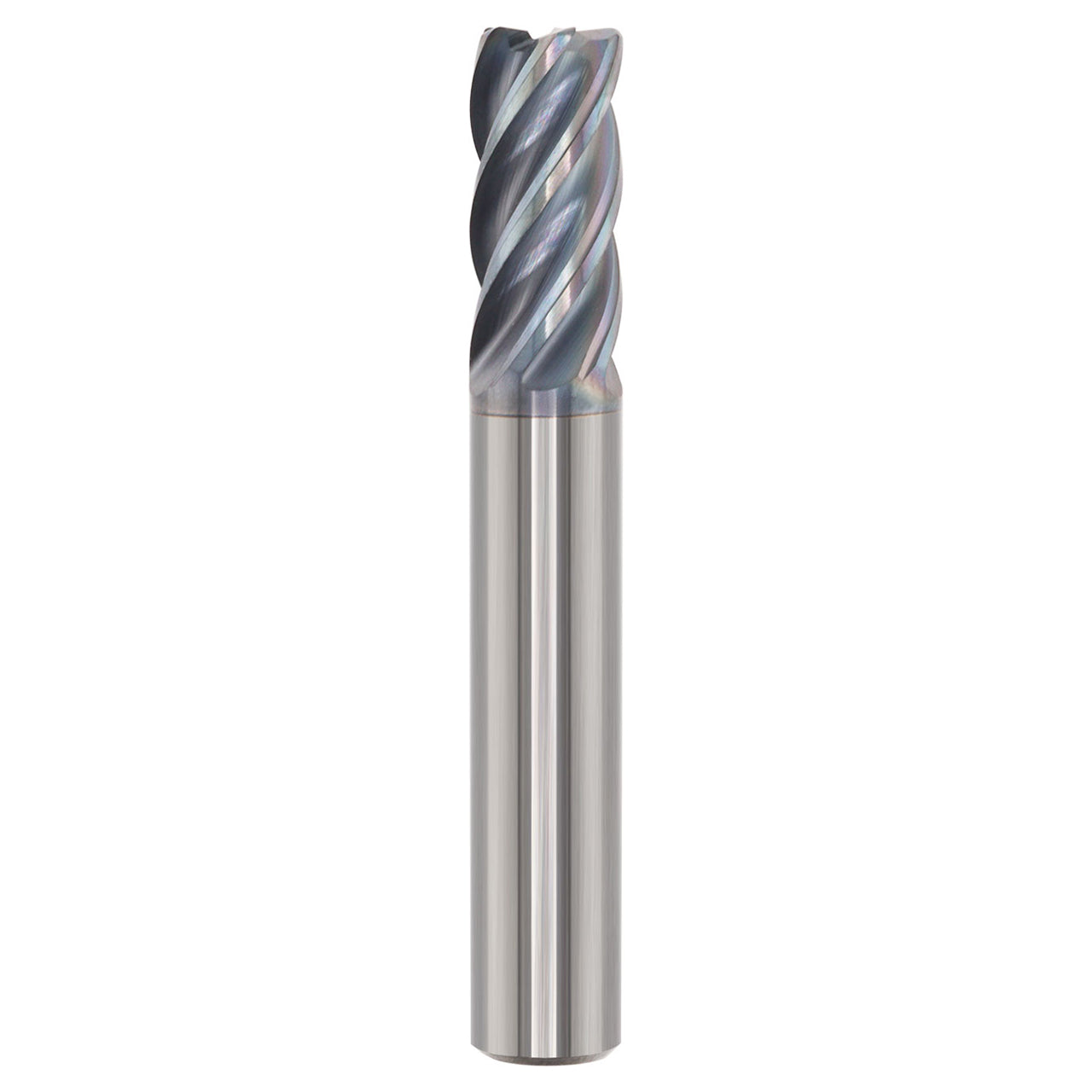

| Product Type | Corner Radius End Mill |
