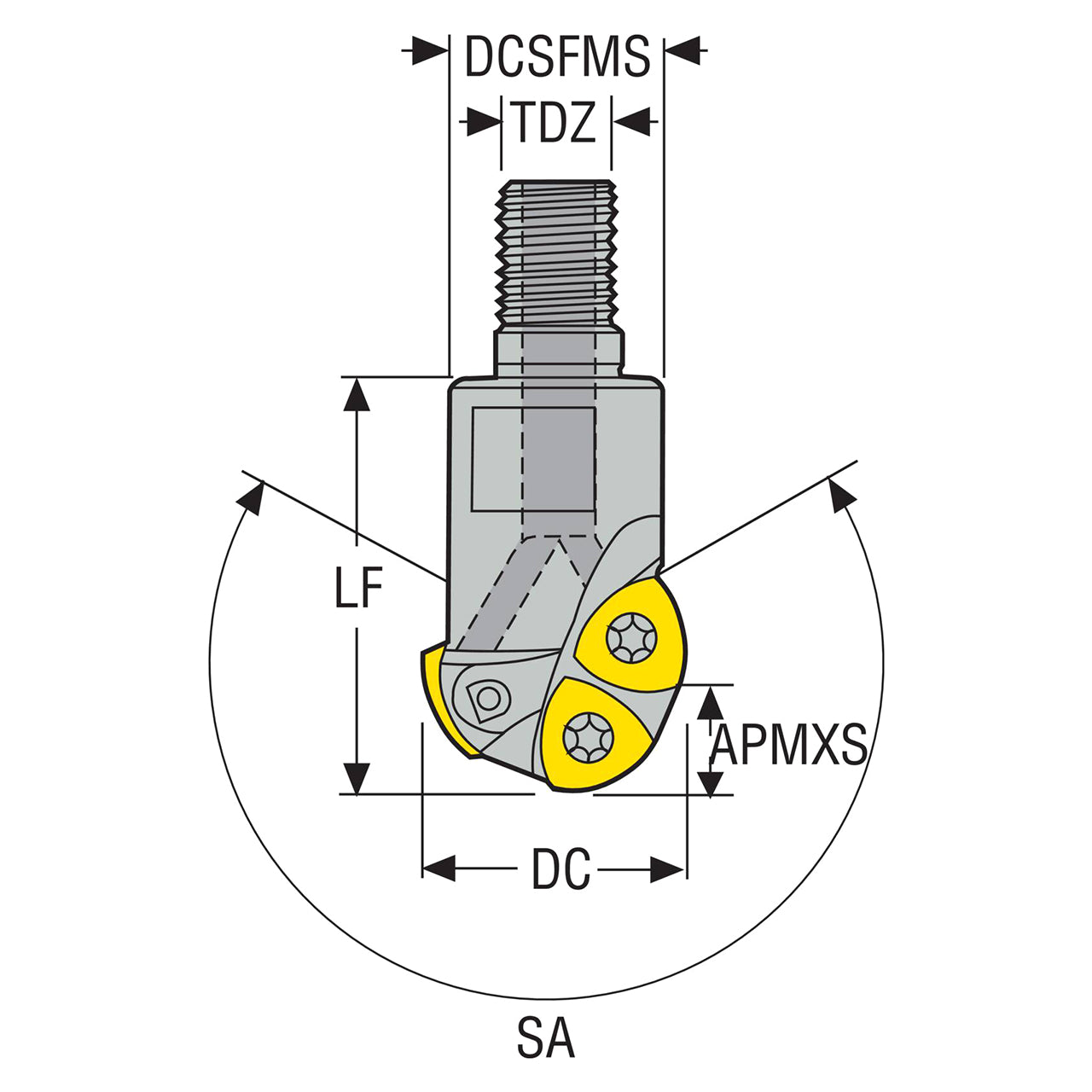

Product Specifications
| Manufacturer Part Number | 75094580 |
| Cutting Diameter (mm) | 32.00mm |
| Contact Surface Diameter Machine Side (mm) | 28.00mm |
| Functional Length (mm) | 40.00mm |
| Overall Length (mm) | 62.75mm |
| Number of Flute | 2 |
| Maximum Depth of Cut (mm) | 16.00mm |
| Connection Mounting Torque (Nm) | 80.0 Nm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 14800 rpm |
| Sphere Angle (Degree) | 237 Degree |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | 218.19-160 |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | Toolox 44HRc |
| Shank Type | Combimaster |
| Insert Shape Code | 218.19 |
| Coating | AlTiN |

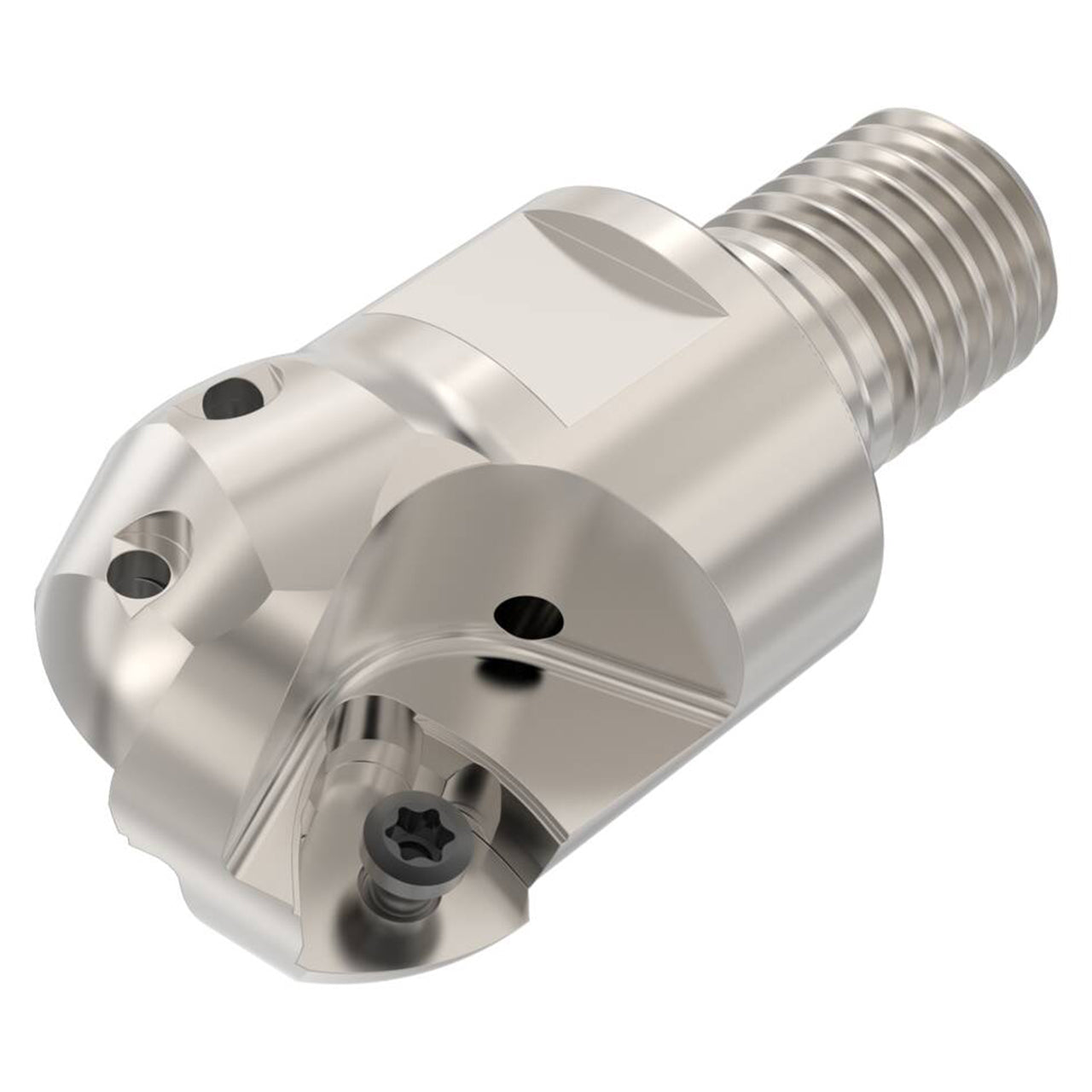

| Product Type | Indexable Ball Nose End Mill |
