Product Specifications
| Manufacturer Part Number | 75080697 |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Shank Diameter (mm) | 16.00mm |
| Contact Surface Diameter Workpiece Side (mm) | 5.75mm |
| Functional Length (mm) | 58.60mm |
| Protruding Length (mm) | 62.00mm |
| Overall Length (mm) | 110.00mm |
| Body Half Taper Angle Degree) | 5 Degree |
| Maximum Rotational Speed (rpm) | 80000 rpm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 1 |
| Shank Type | Weldon |
| Coating | AlTiN |

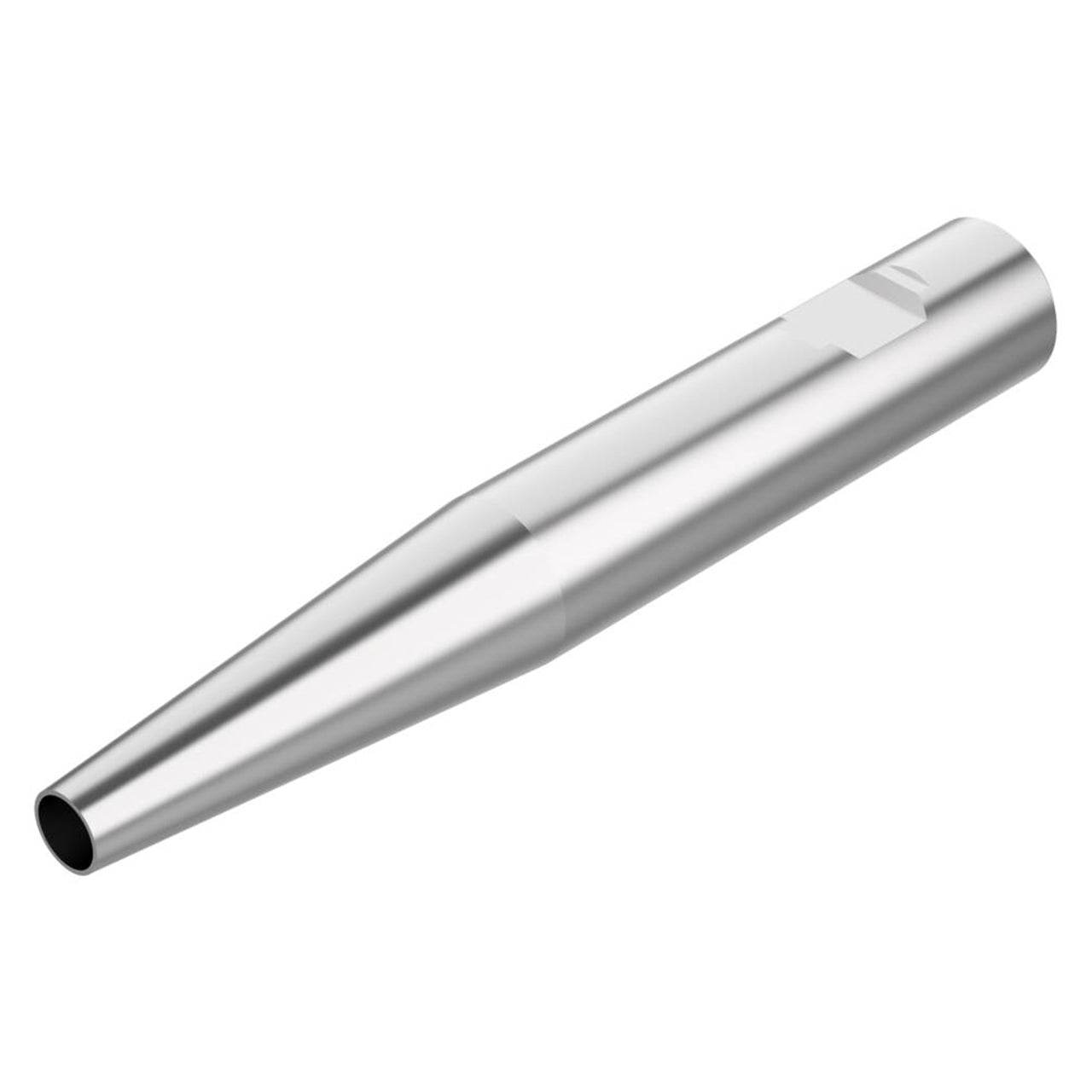

| Product Type | Replaceable Tip Milling Shank |
