Product Specifications
| Manufacturer Part Number | 75079661 |
| Shank Width (Decimal Inch) | 0.984" |
| Height of Tool Holder Shank (Decimal Inch) | 1.969" |
| Functional length (Decimal Inch) | 4.921" |
| Overall Height (Decimal Inch) | 2.284" |
| Overall Width (Decimal Inch) | 1.890" |
| Functional Width (Decimal Inch) | 0.945" |
| Coolant Entry Thread Size | G1/8 |
| Coolant Pressure | 80.00 bar |
| Machine Side Connection Text | SHANK-25 |
| Complete Insert Compatibility | C4 |
| Cutting Direction | Right Hand |

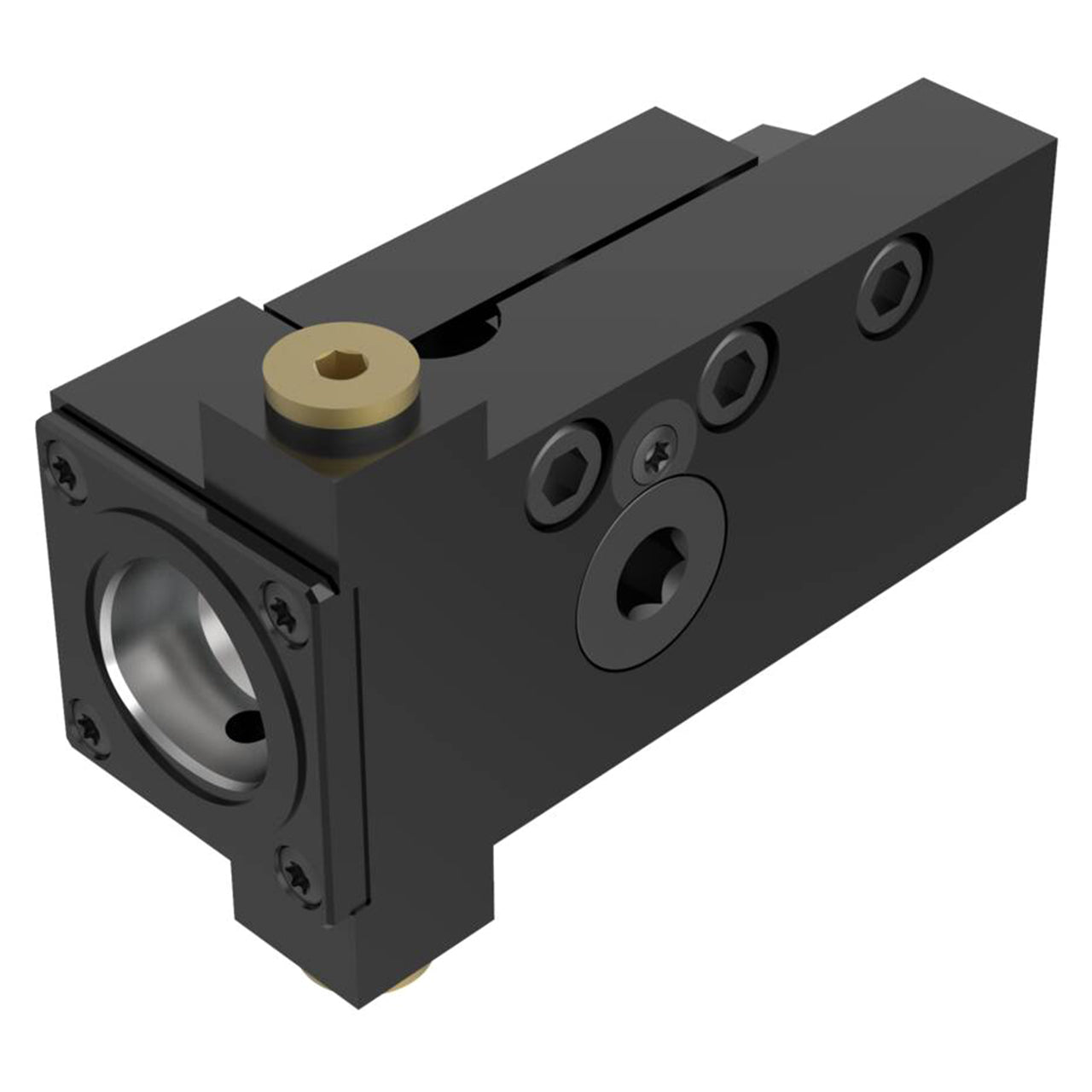

| Product Type | Modular Lathe Shank |
