Product Specifications
| Manufacturer Part Number | 75079500 |
| Minimum Cutting Diameter Internal (mm) | 45.00mm |
| Connection Diameter Machine Side (mm) | 25.00mm |
| Shank Diameter (mm) | 25.00mm |
| Maximum Body Diameter (mm) | 25.00mm |
| Functional Length (mm) | 200.00mm |
| Head Length (mm) | 13.00mm |
| Overall Length (mm) | 220.00mm |
| Shank Width (mm) | 24.00mm |
| Maximum Radial Cutting Depth (mm) | 10.90mm |
| Height of Tool Holder Shank (mm) | 23.00mm |
| Functional Width (mm) | 22.50mm |
| Coolant Supply Property | 1 |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | P |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle Code | Y |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 120 Degree |
| Inclination Angle (Degree) | -13 Degree |
| Insert Shape Code | D |
| Shank Type | Cylindrical |

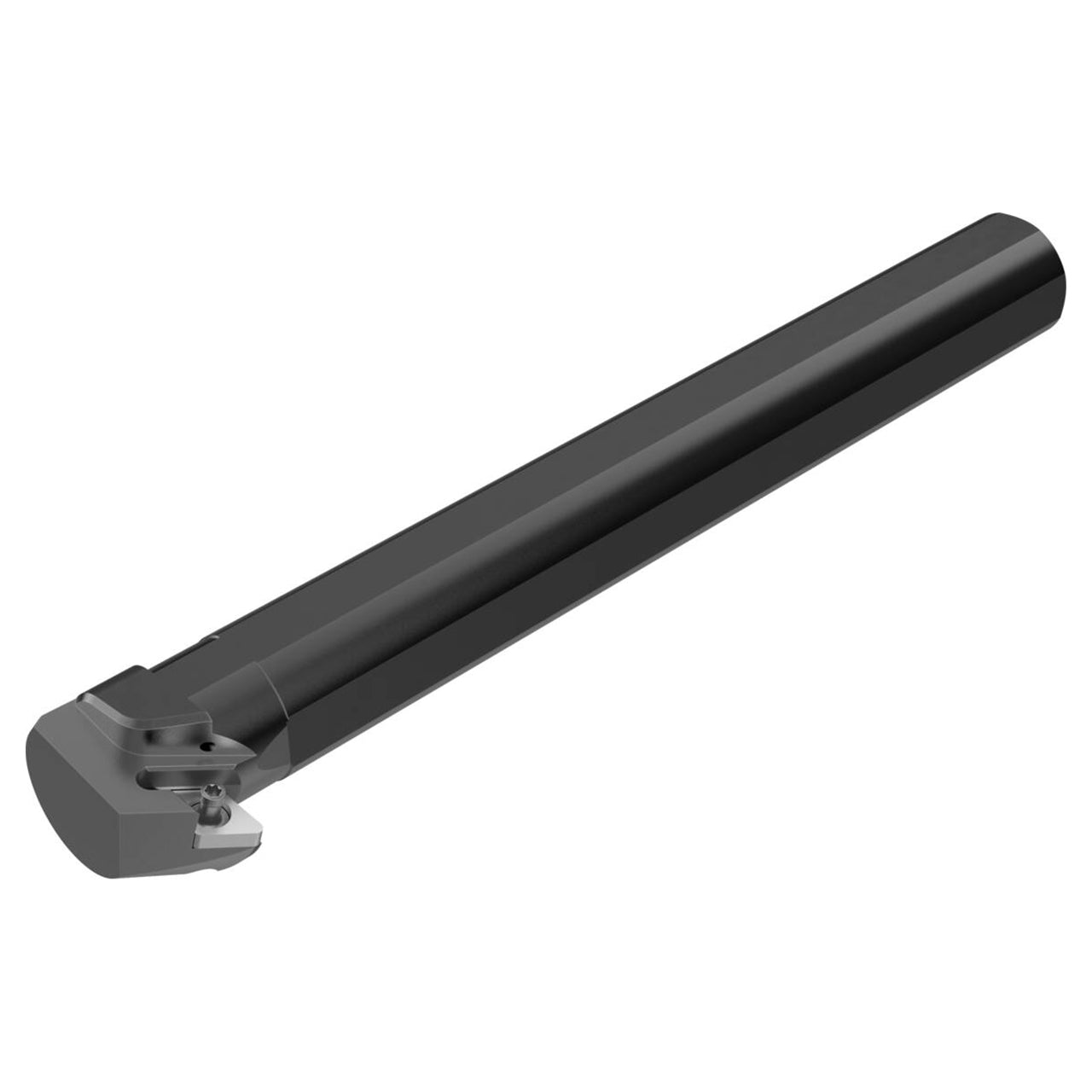

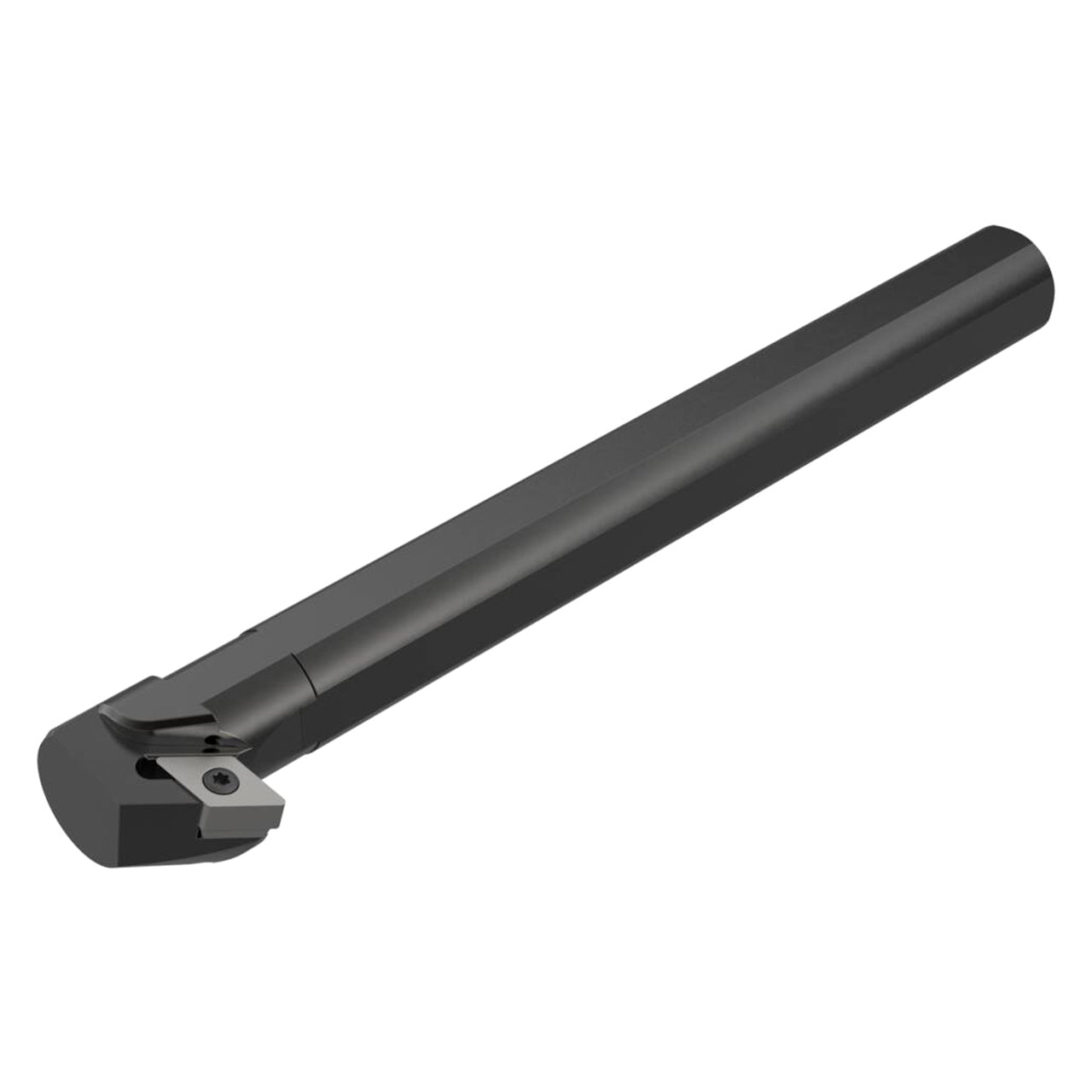

| Product Type | Indexable Boring Bar |
