Product Specifications
| Manufacturer Part Number | 75069368 |
| Connection Diameter Machine Side (mm) | 32.00mm |
| Shank Diameter (mm) | 32.00mm |
| Contact Surface Diameter Workpiece Side (mm) | 15.20mm |
| Functional Length (mm) | 47.60mm |
| Protruding Length (mm) | 190.00mm |
| Overall Length (mm) | 250.00mm |
| Body Half Taper Angle Degree) | 10 Degree |
| Maximum Rotational Speed (rpm) | 63600 rpm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 1 |
| Shank Type | Cylindrical |
| Coating | AlTiN |

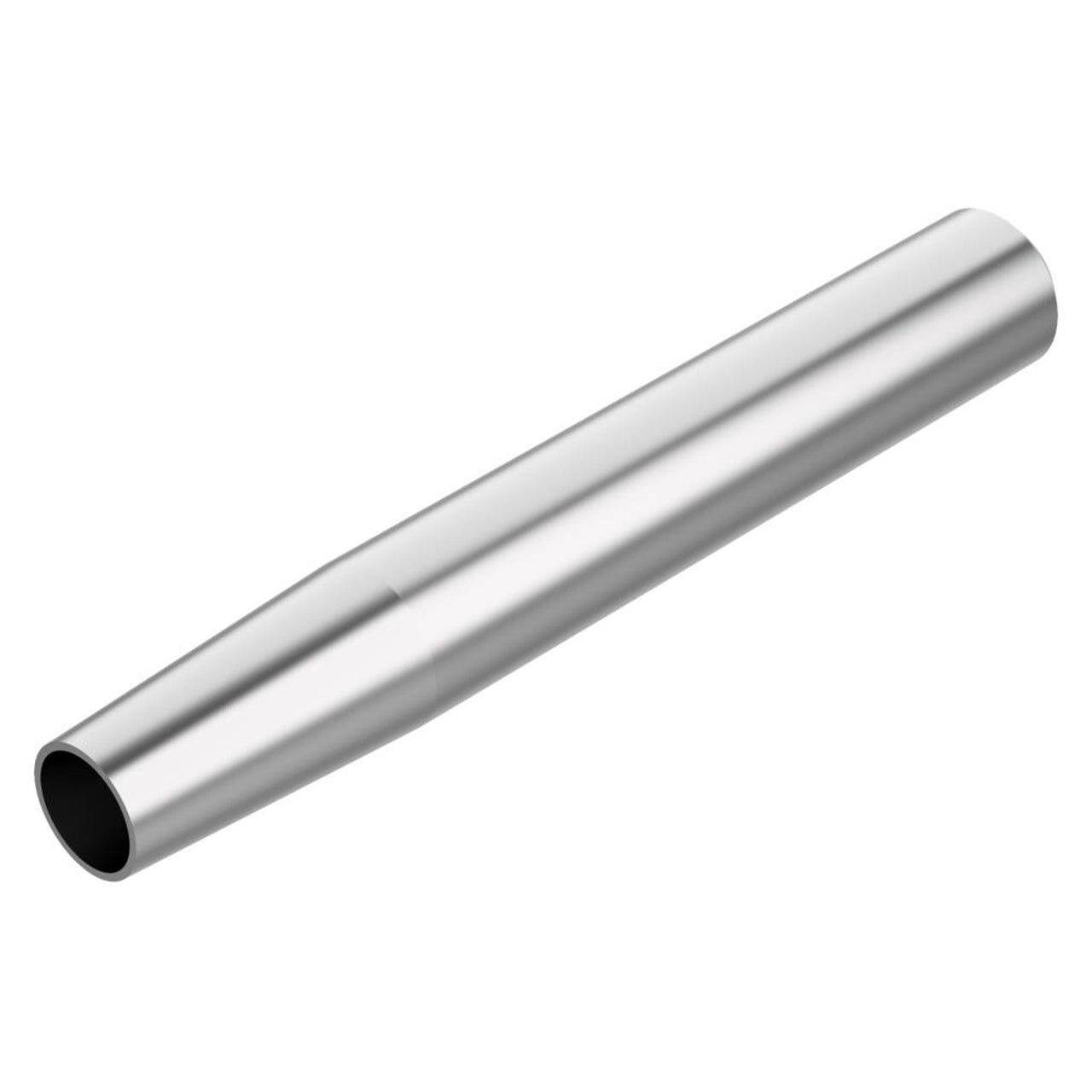

| Product Type | Replaceable Tip Milling Shank |
