Product Specifications
| Manufacturer Part Number | 75069222 |
| Minimum Cutting Diameter Internal (mm) | 10.20mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Shank Diameter (mm) | 20.00mm |
| Functional Length (mm) | 140.00mm |
| Usable Length (mm) | 20.00mm |
| Shank Width (mm) | 19.00mm |
| Height of Tool Holder Shank (mm) | 18.00mm |
| Functional Width (mm) | 5.10mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Insert Clamping System | S |
| Shank Type | Cylindrical |

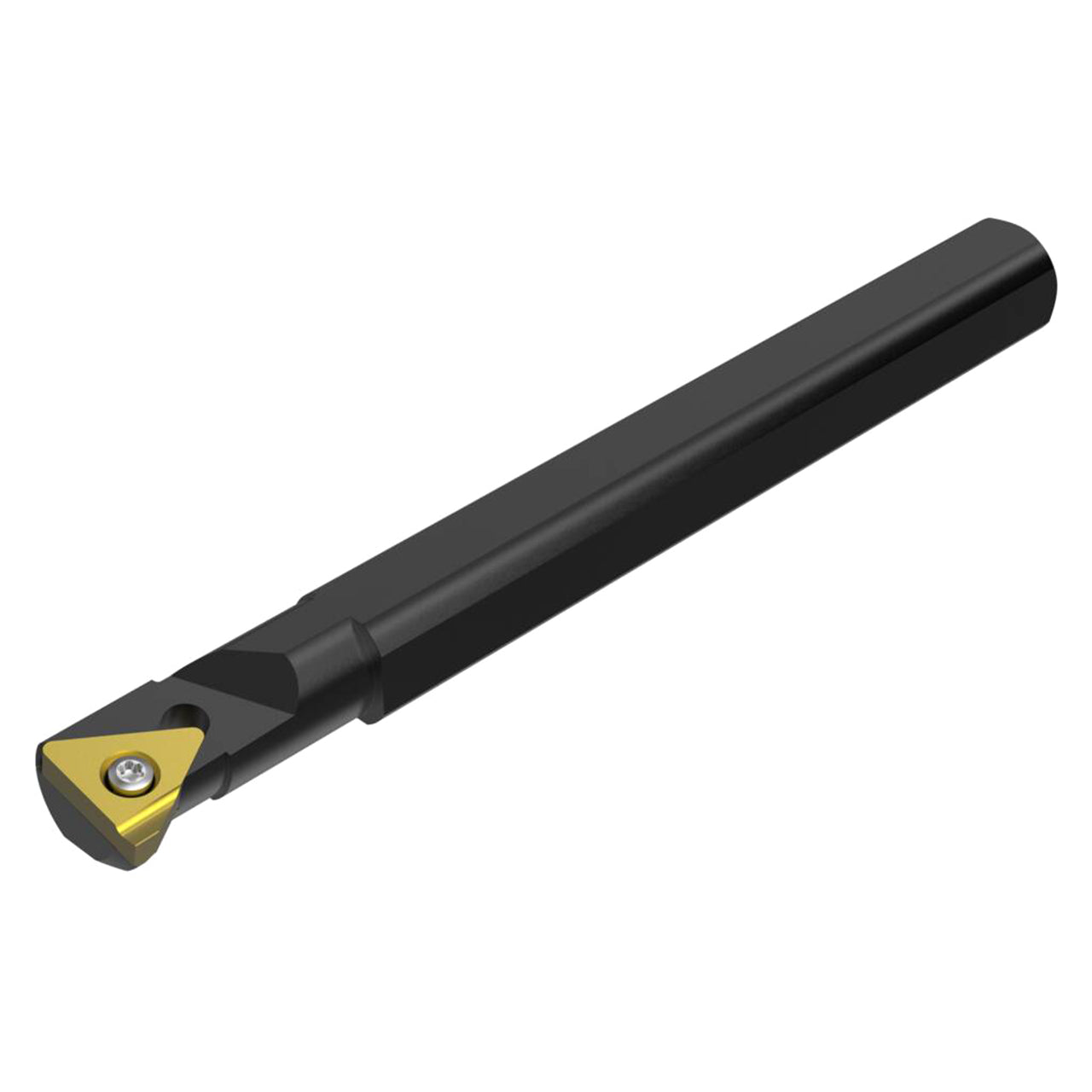

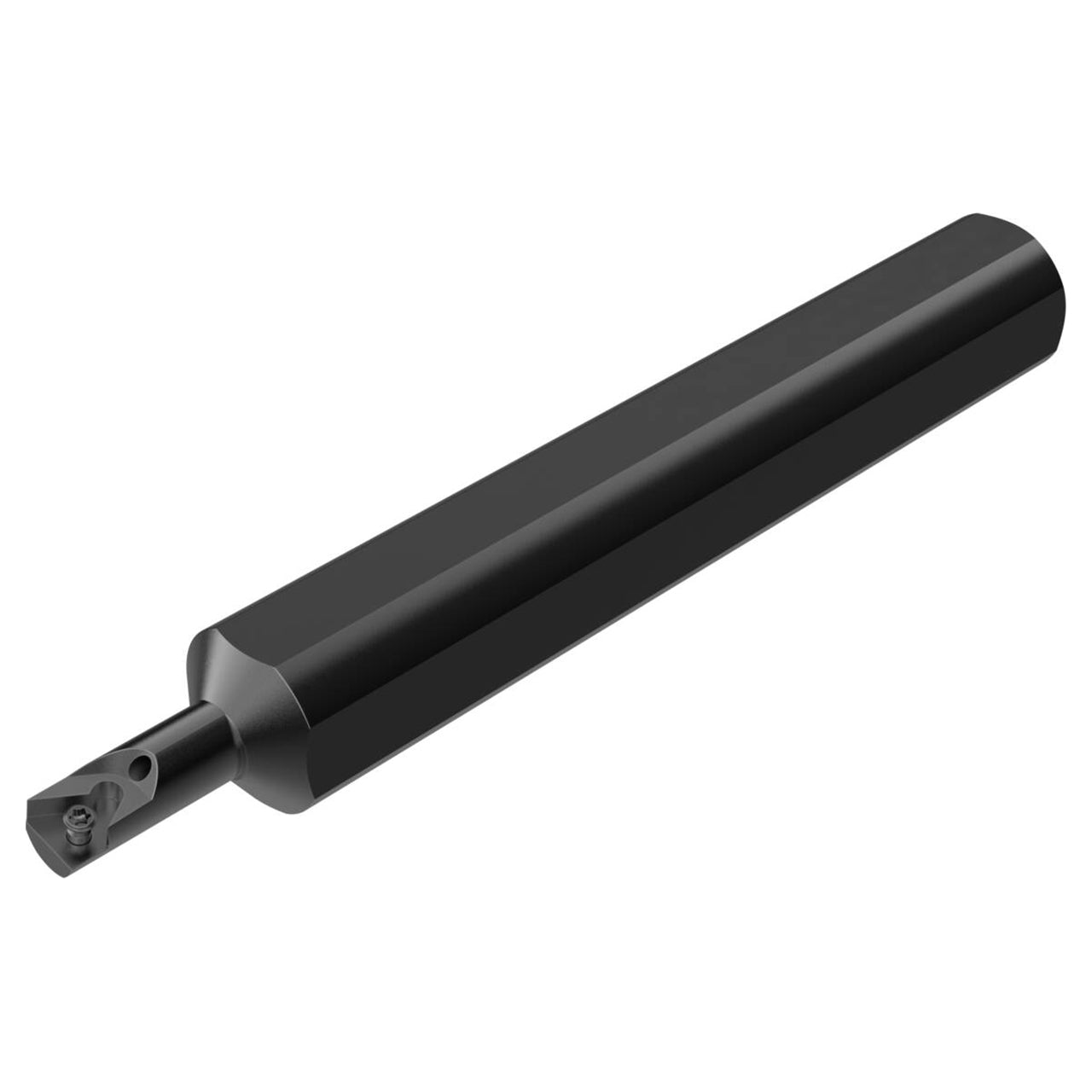

| Product Type | Indexable Threading Toolholder |
