Product Specifications

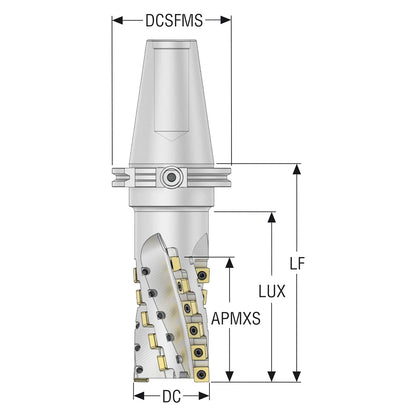

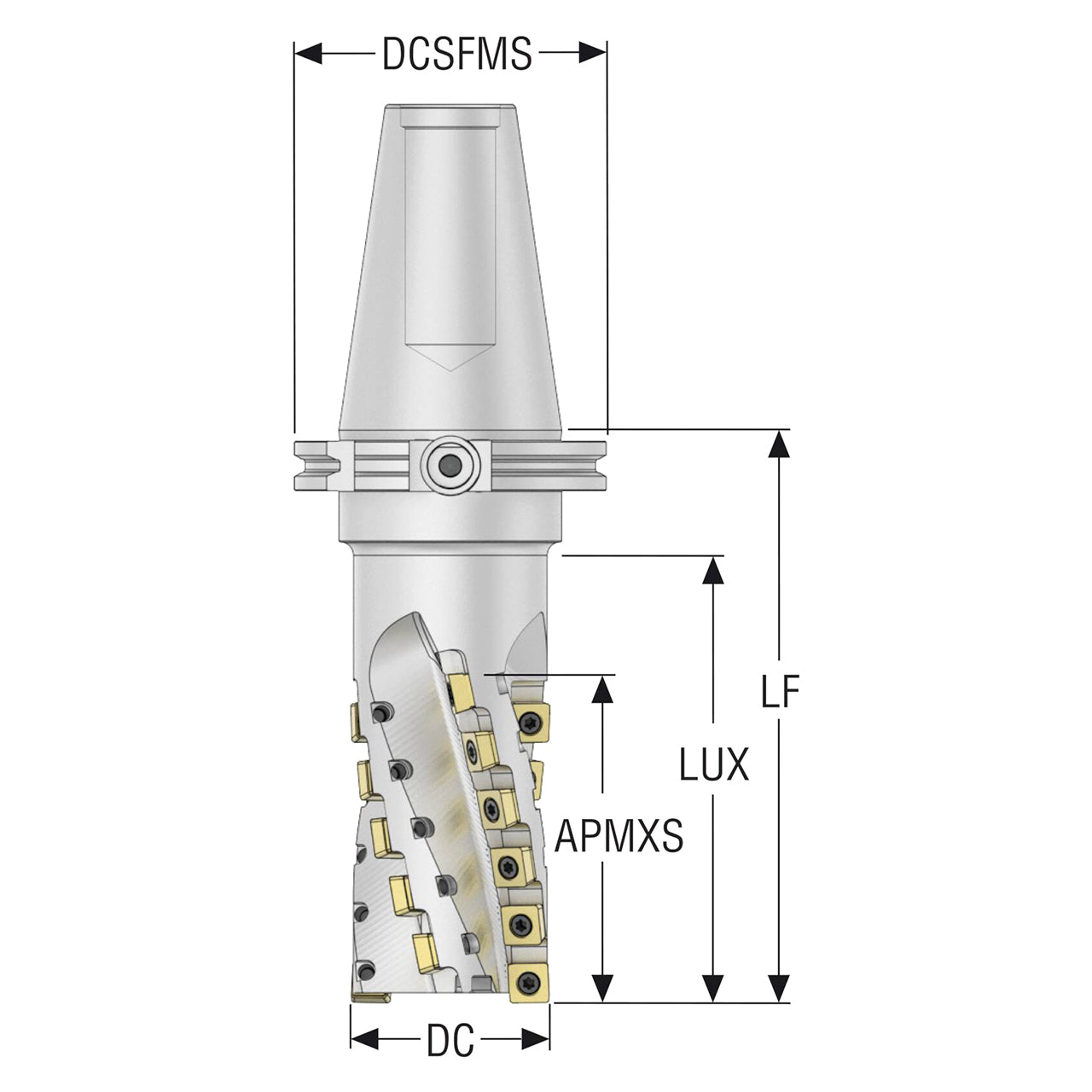

| Manufacturer Part Number | 75066231 |
| Cutting Diameter (mm) | 50.00mm |
| Contact Surface Diameter Machine Side (mm) | 100.00mm |
| Functional Length (mm) | 148.00mm |
| Overall Length (mm) | 250.00mm |
| Number of Flute | 4 |
| Maximum Depth of Cut (mm) | 77.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Orthogonal Angle (Degree) | -8 Degree |
| Flute Helix Hand | Left Hand |
| Maximum Rotational Speed (rpm) | 8300 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | AC.T1506 / SC.T1206 |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | 819B (35NCD16) 47HRc |
| Shank Type | BT and BT Taper-face |
| Insert Shape Code | A / S |
| Coating | AlTiN |
| Product Type | Indexable Square-Shoulder End Mill |
