Product Specifications
| Manufacturer Part Number | 75056400 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.969" |
| Minimum Cutting Diameter Internal (mm) | 50.00mm |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 4.921" |
| Minimum Cutting Diameter Internal 3 (mm) | 125.00mm |
| Functional Length (Decimal Inch) | 4.000" |
| Functional Length (mm) | 101.60mm |
| Head Length (Decimal Inch) | 1.102" |
| Head Length (mm) | 28.00mm |
| Shank Length (Decimal Inch) | 2.898" |
| Shank Length (mm) | 73.60mm |
| Shank Width (Decimal Inch) | 0.625" |
| Shank Width (mm) | 15.88mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.086" |
| Maximum Radial Cutting Depth (mm) | 2.18mm |
| Maximum Cutting Depth (Decimal Inch) | 0.191" |
| Maximum Cutting Depth (mm) | 4.86mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.625" |
| Height of Tool Holder Shank (mm) | 15.88mm |
| Functional Height (Decimal Inch) | 0.625" |
| Functional Height (mm) | 15.88mm |
| Functional Width (Decimal Inch) | 0.875" |
| Functional Width (mm) | 22.23mm |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | -5.44 Degree |
| Cutting Direction | Left Hand |
| Insert Clamping System | M |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle Code | L |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 94.39 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 959 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Maximum Ramping Angle (Degree) | 7.8 Degree |
| Shank Type | Square shank |

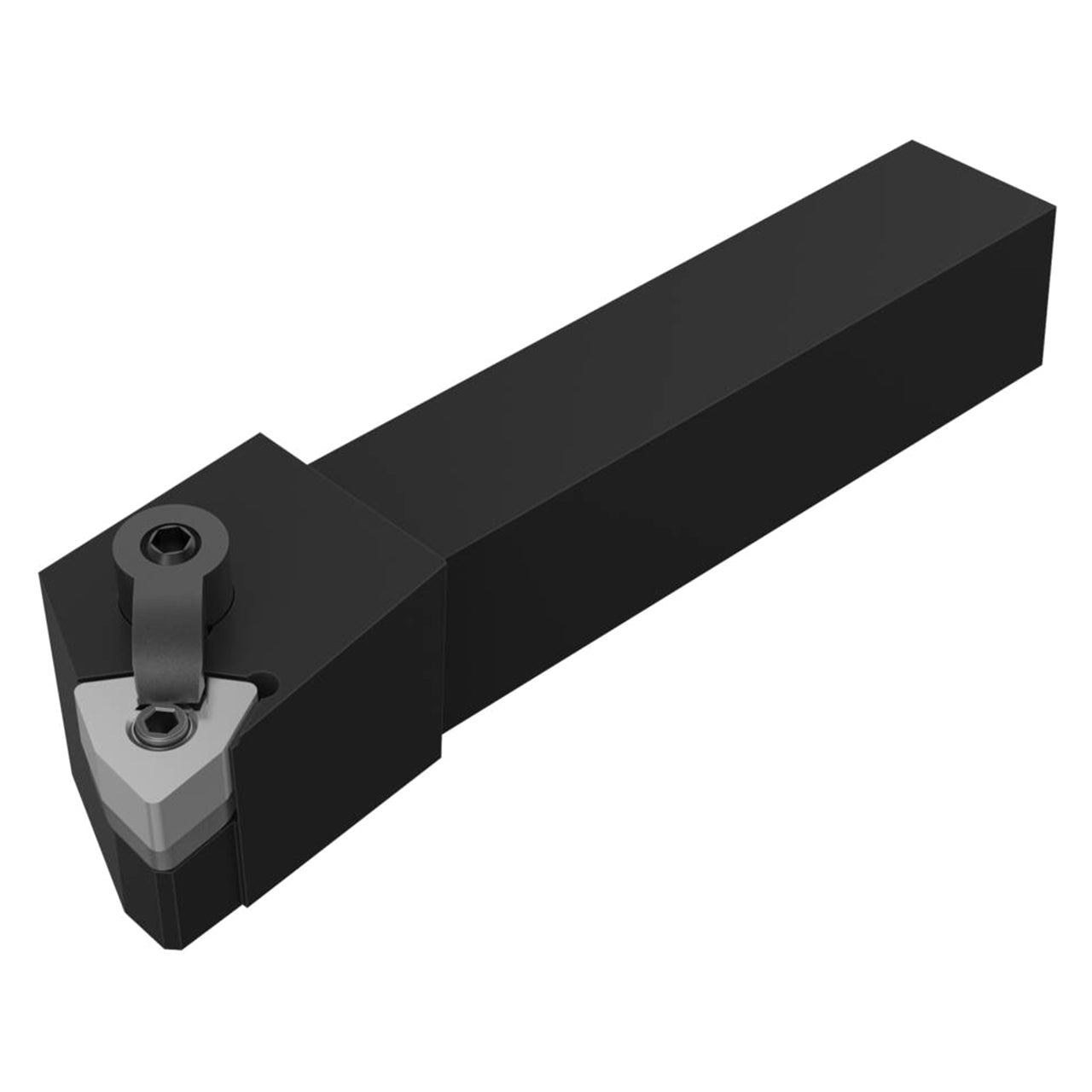

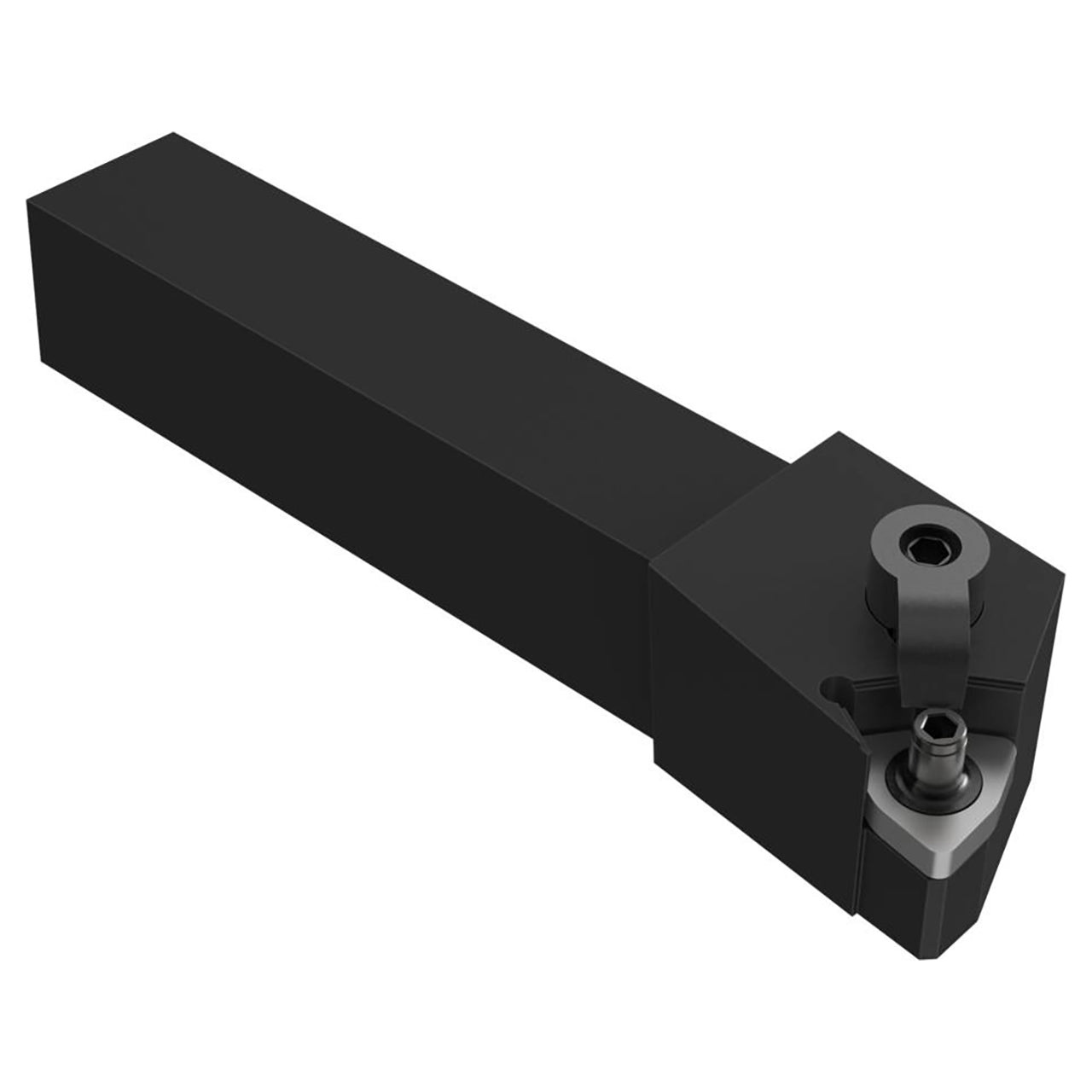

| Product Type | Indexable Turning Toolholder |
