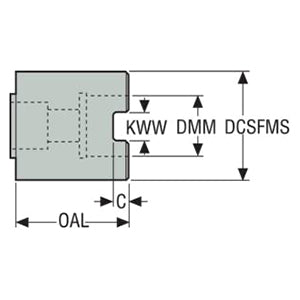

Product Specifications
| Manufacturer Part Number | 75054854 |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.284" |
| Contact Surface Diameter Machine Side (mm) | 58.00mm |
| Shank Diameter (Decimal Inch) | 1.250" |
| Shank Diameter (mm) | 31.75mm |
| Overall Length (Decimal Inch) | 2.480" |
| Overall Length (mm) | 63.00mm |
| Depth of Key Way (Decimal Inch) | 0.280" |
| Depth of Key Way (mm) | 7.11mm |
| Keyway Width (Decimal Inch) | 0.510" |
| Keyway Width (mm) | 12.95mm |

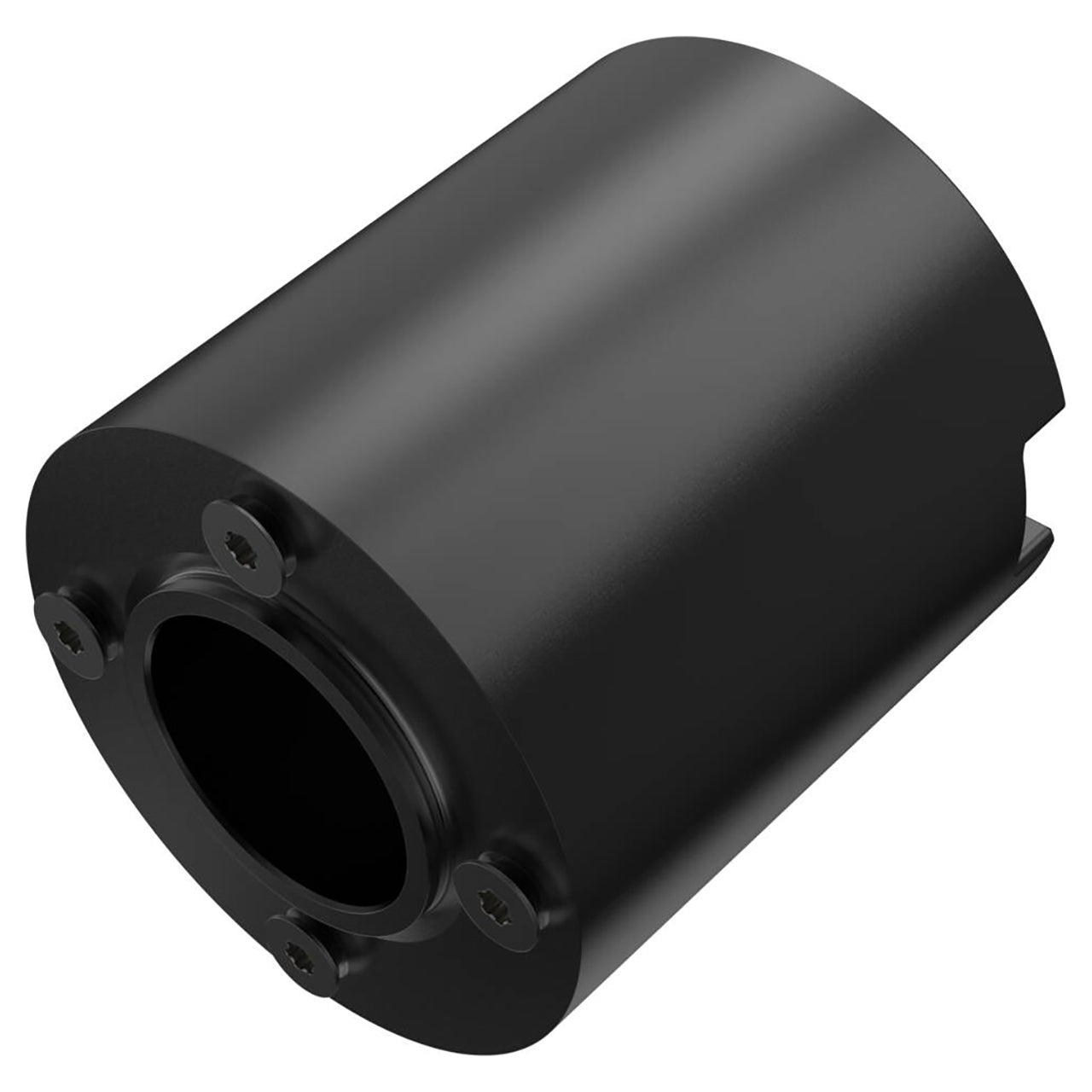

| Product Type | Slotting Cutter Adapter |
