Product Specifications
| Manufacturer Part Number | 75054608 |
| Connection Diameter Machine Side (Decimal Inch) | 0.625" |
| Connection Diameter Machine Side (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Contact Surface Diameter Workpiece Side (Decimal Inch) | 0.360" |
| Contact Surface Diameter Workpiece Side (mm) | 9.15mm |
| Functional Length (Decimal Inch) | 2.165" |
| Functional Length (mm) | 55.00mm |
| Protruding Length (Decimal Inch) | 4.409" |
| Protruding Length (mm) | 112.00mm |
| Overall Length (Decimal Inch) | 6.299" |
| Overall Length (mm) | 160.00mm |
| Body Half Taper Angle Degree) | 1 Degree |
| Maximum Rotational Speed (rpm) | 80000 rpm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 1 |
| Shank Type | Cylindrical |
| Coating | AlTiN |

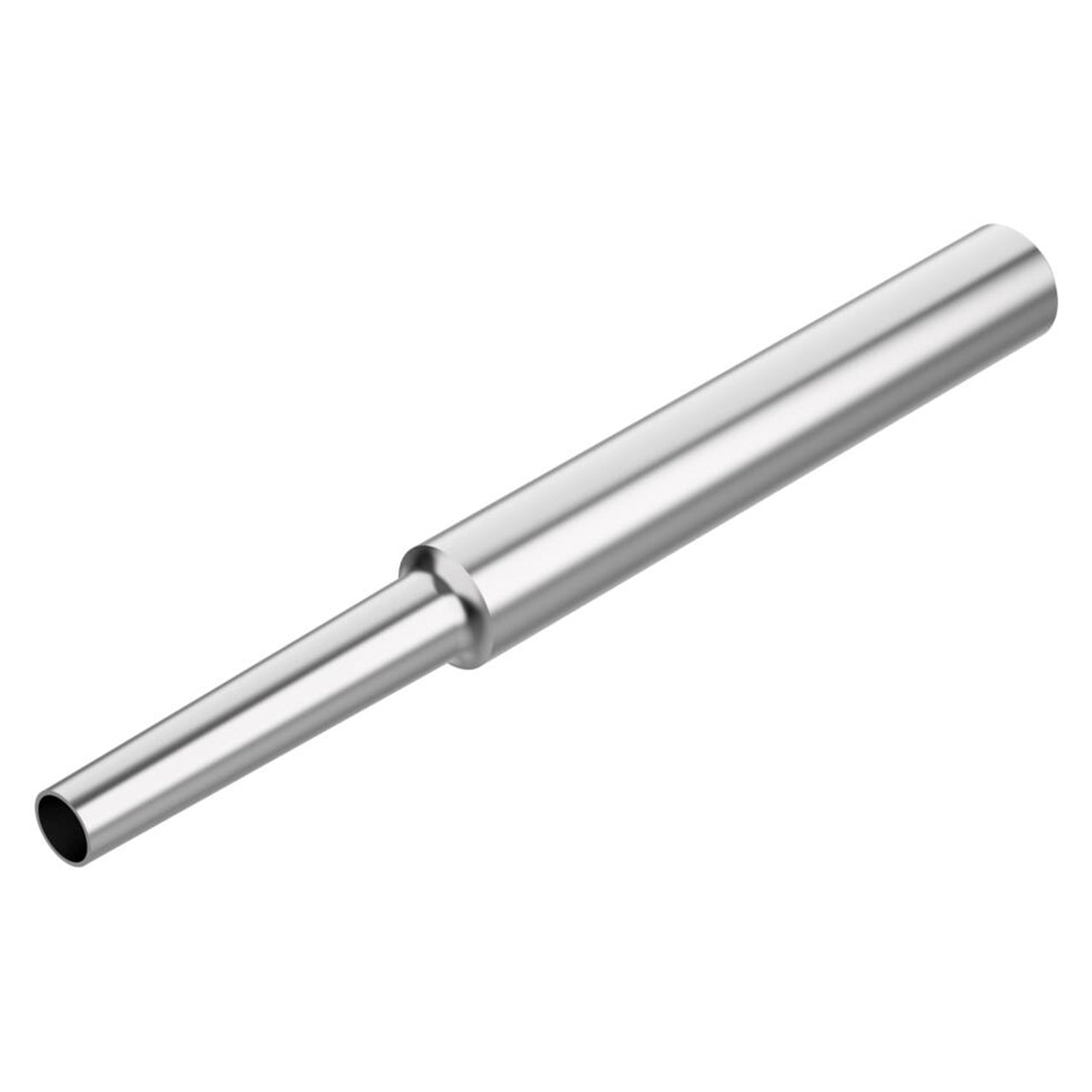

| Product Type | Replaceable Tip Milling Shank |
