Product Specifications
| Manufacturer Part Number | 75039976 |
| Body Diameter (Decimal Inch) | 1.378" |
| Body Diameter (mm) | 35.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Minimum Connection Bore Diameter (mm) | 10.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.394" |
| Maximum Connection Bore Diameter (mm) | 10.00mm |
| Body Length (Decimal Inch) | 1.181" |
| Body Length (mm) | 30.00mm |
| Functional Length Secondary (Decimal Inch) | 1.575" |
| Functional Length Secondary (mm) | 40.00mm |
| Protruding Length (Decimal Inch) | 2.362" |
| Protruding Length (mm) | 60.00mm |
| Clamping Length (Decimal Inch) | 1.417" |
| Clamping Length (mm) | 36.00mm |
| Overall Length (Decimal Inch) | 3.858" |
| Overall Length (mm) | 98.00mm |
| Body Half Taper Angle Degree) | 30 Degree |

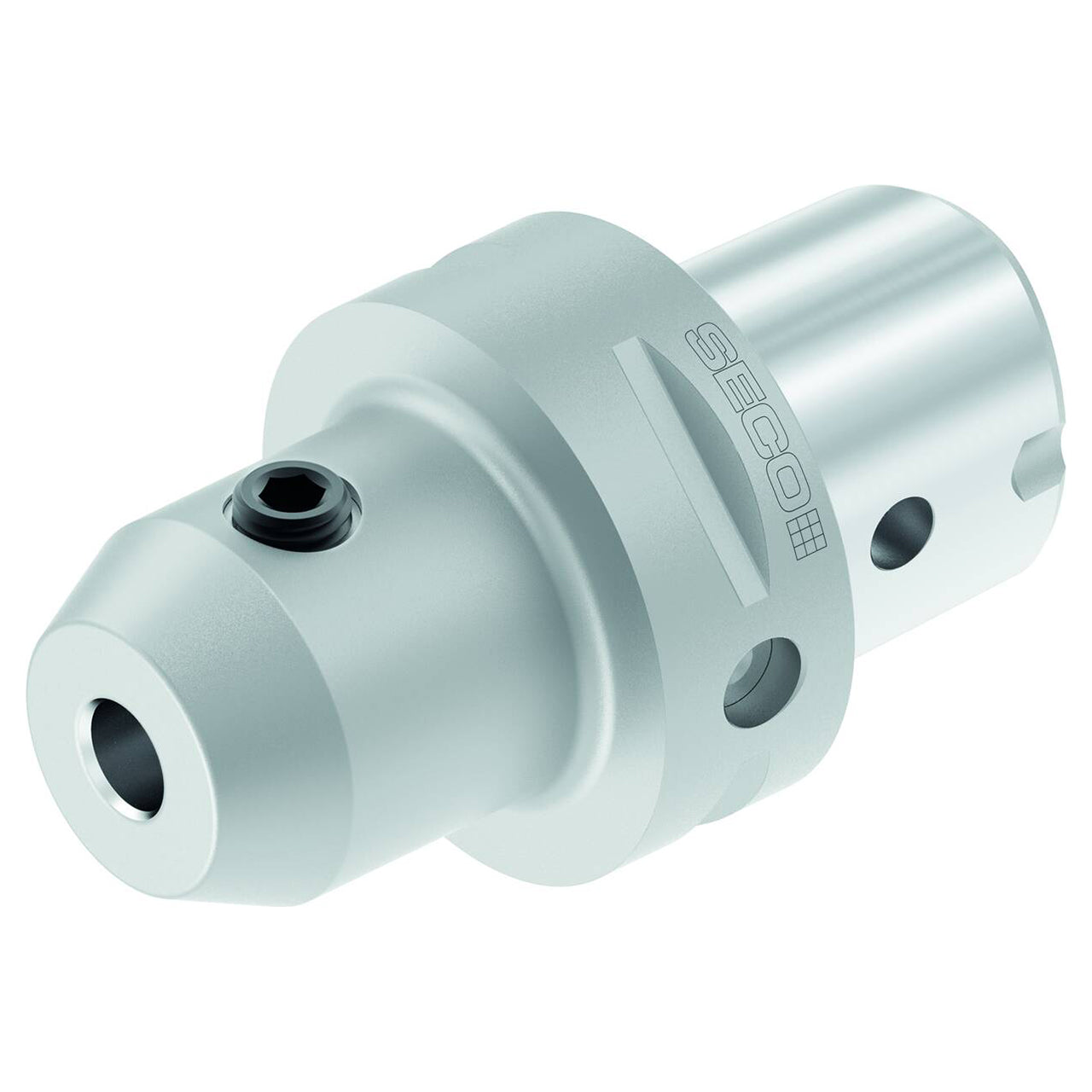

| Product Type | End Mill Holder |
