Product Specifications
| Manufacturer Part Number | 75036671 |
| Cutting Diameter (mm) | 125.00mm |
| Maximum Depth of Cut (mm) | 2.50mm |
| Maximum Cutting Depth (mm) | 33.00mm |
| Minimum Cutting Width (mm) | 2.25mm |
| Maximum Cutting Width (mm) | 2.50mm |
| Hub Thickness (mm) | 1.9 |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 2800 rpm |

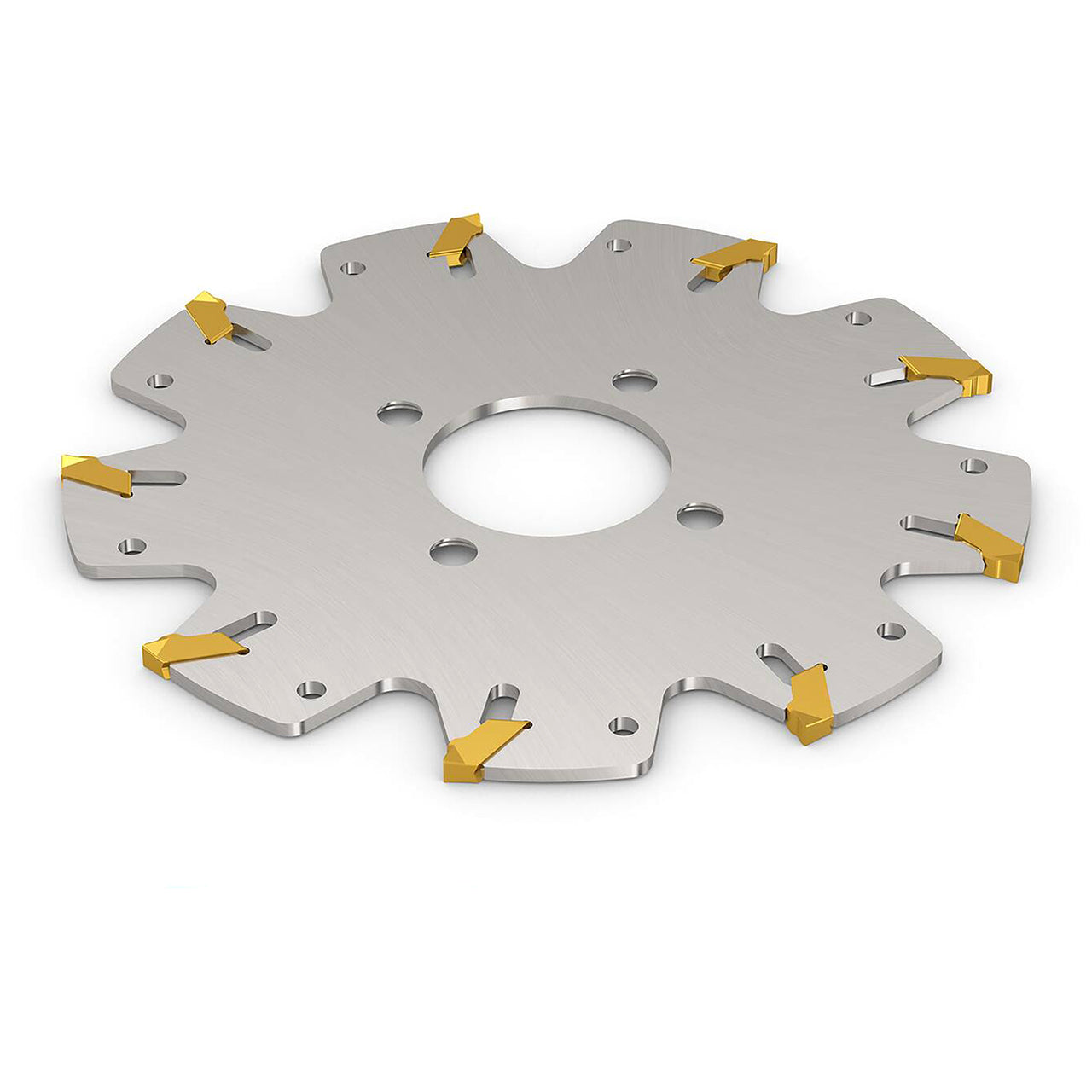

| Product Type | Indexable Slotting Cutter |
