Product Specifications

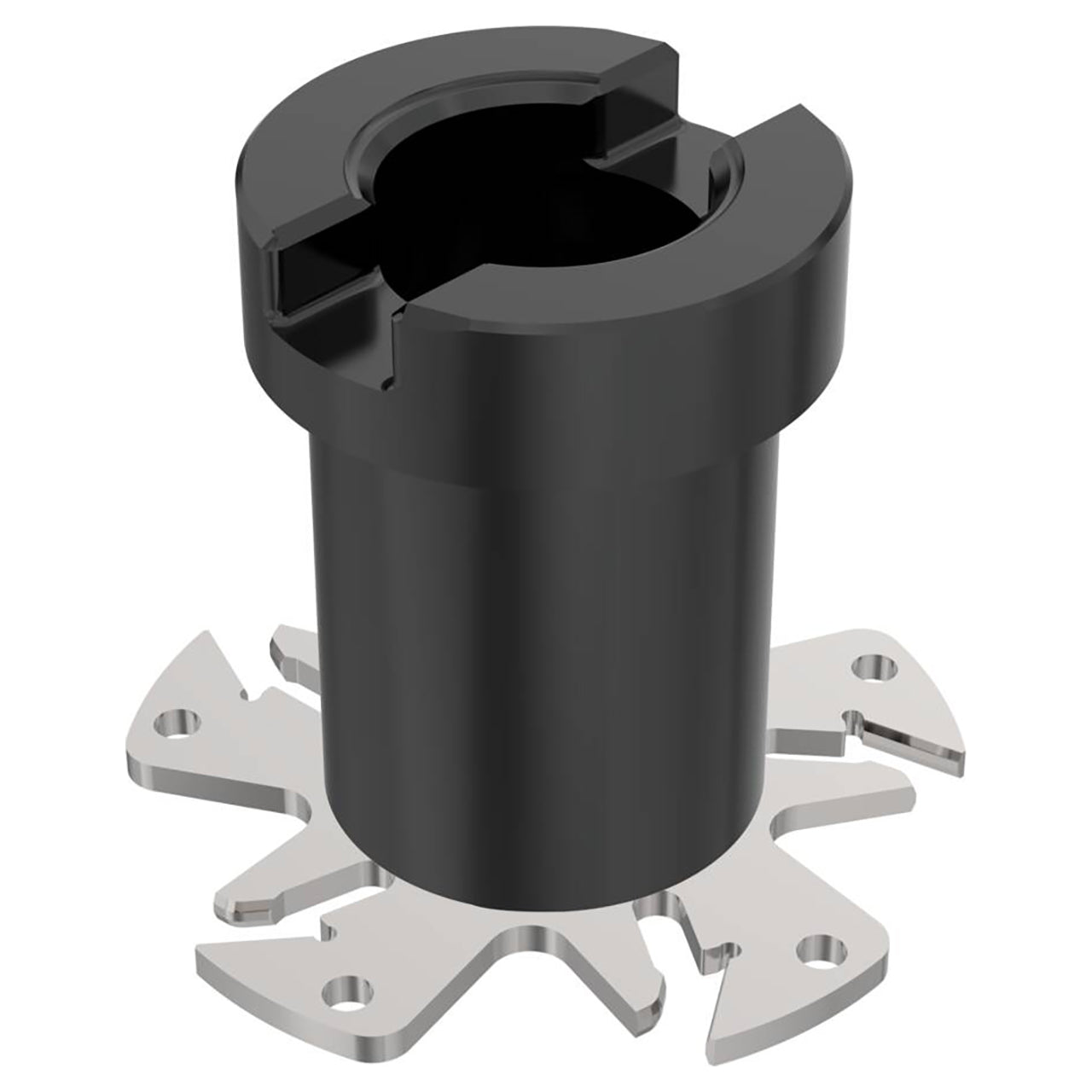

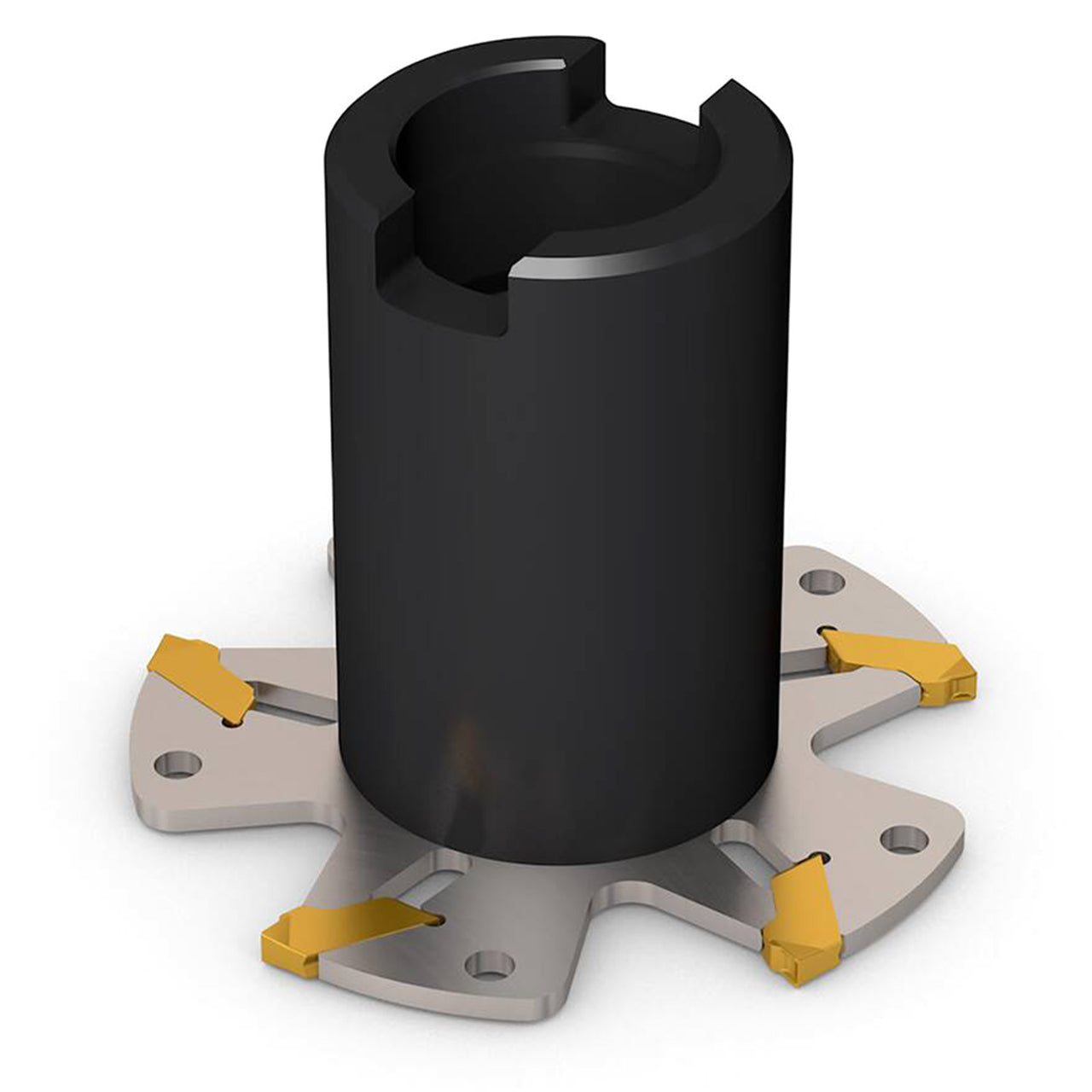

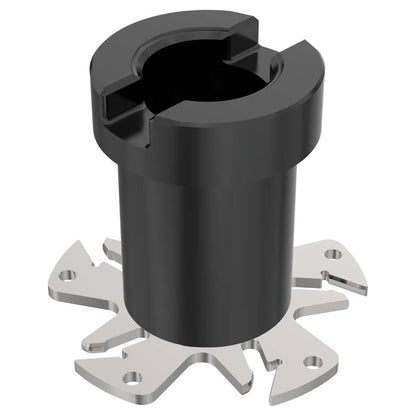

| Manufacturer Part Number | 75027298 |
| Cutting Diameter (mm) | 63.00mm |
| Connection Bore Diameter (mm) | 22.00mm |
| Contact Surface Diameter Machine Side (mm) | 32.00mm |
| Maximum Depth of Cut (mm) | 3.10mm |
| Depth of Key Way (mm) | 6.30mm |
| Maximum Cutting Depth (mm) | 15.00mm |
| Cutting Width (mm) | 3.10mm |
| Minimum Cutting Width (mm) | 3.10mm |
| Maximum Cutting Width (mm) | 3.10mm |
| Keyway Width (mm) | 10.40mm |
| Hub Thickness (mm) | 2.4 |
| Cutting Pitch Density | Normal |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 4000 rpm |
| Shank Type | Arbor |
| Product Type | Indexable Slotting Cutter |
