Product Specifications
| Manufacturer Part Number | 75015053 |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Contact Surface Diameter Workpiece Side (Decimal Inch) | 0.374" |
| Contact Surface Diameter Workpiece Side (mm) | 9.50mm |
| Functional Length (Decimal Inch) | 0.906" |
| Functional Length (mm) | 23.00mm |
| Protruding Length (Decimal Inch) | 1.378" |
| Protruding Length (mm) | 35.00mm |
| Overall Length (Decimal Inch) | 3.347" |
| Overall Length (mm) | 85.00mm |
| Body Half Taper Angle Degree) | 3 Degree |
| Maximum Rotational Speed (rpm) | 80000 rpm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 1 |
| Shank Type | Weldon |
| Coating | AlTiN |

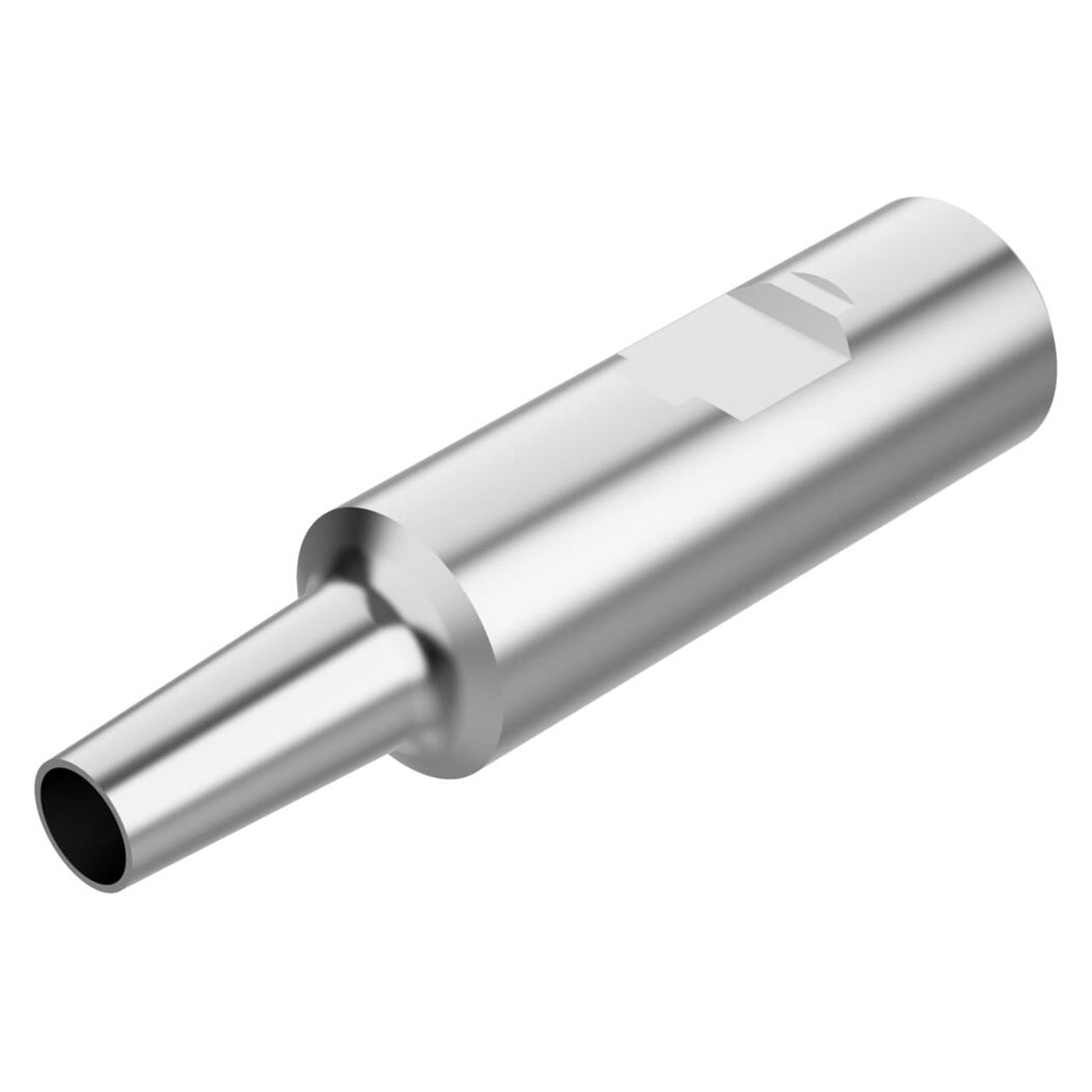

| Product Type | Replaceable Tip Milling Shank |
