Product Specifications
| Manufacturer Part Number | 75012043 |
| Functional Length (mm) | 170.00mm |
| Head Length (mm) | 28.00mm |
| Shank Width (mm) | 25.00mm |
| Height of Tool Holder Shank (mm) | 32.00mm |
| Functional Width (mm) | 32.00mm |
| Cutting Direction | Left Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 93 Degree |
| Tool Cutting Edge Angle Code | J |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 122 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 93 Degree |
| Insert Shape Code | D |
| Shank Type | Square shank |

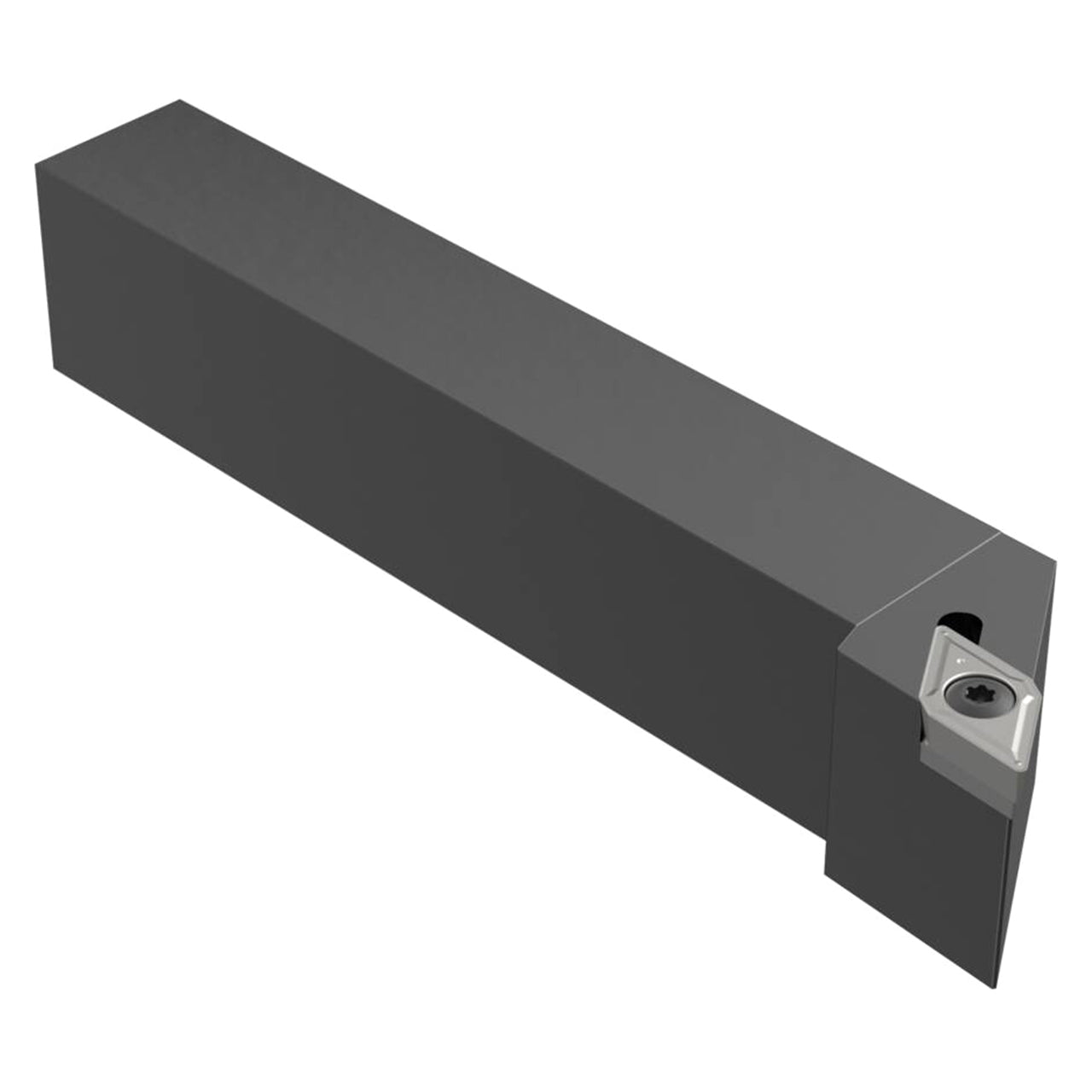

| Product Type | Indexable Turning Toolholder |
