Product Specifications
| Manufacturer Part Number | 75011163 |
| Minimum Cutting Diameter Internal 3 (mm) | 65.00mm |
| Connection Diameter Machine Side (mm) | 12.00mm |
| Shank Diameter (mm) | 12.00mm |
| Functional Length (mm) | 60.00mm |
| Height of Tool Holder Shank (mm) | 10.30mm |
| Functional Height (mm) | 10.30mm |
| Functional Width (mm) | 0.50mm |
| Cutting Direction | Left Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle Code | D |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 145 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Insert Shape Code | C |
| Shank Type | Cylindrical |

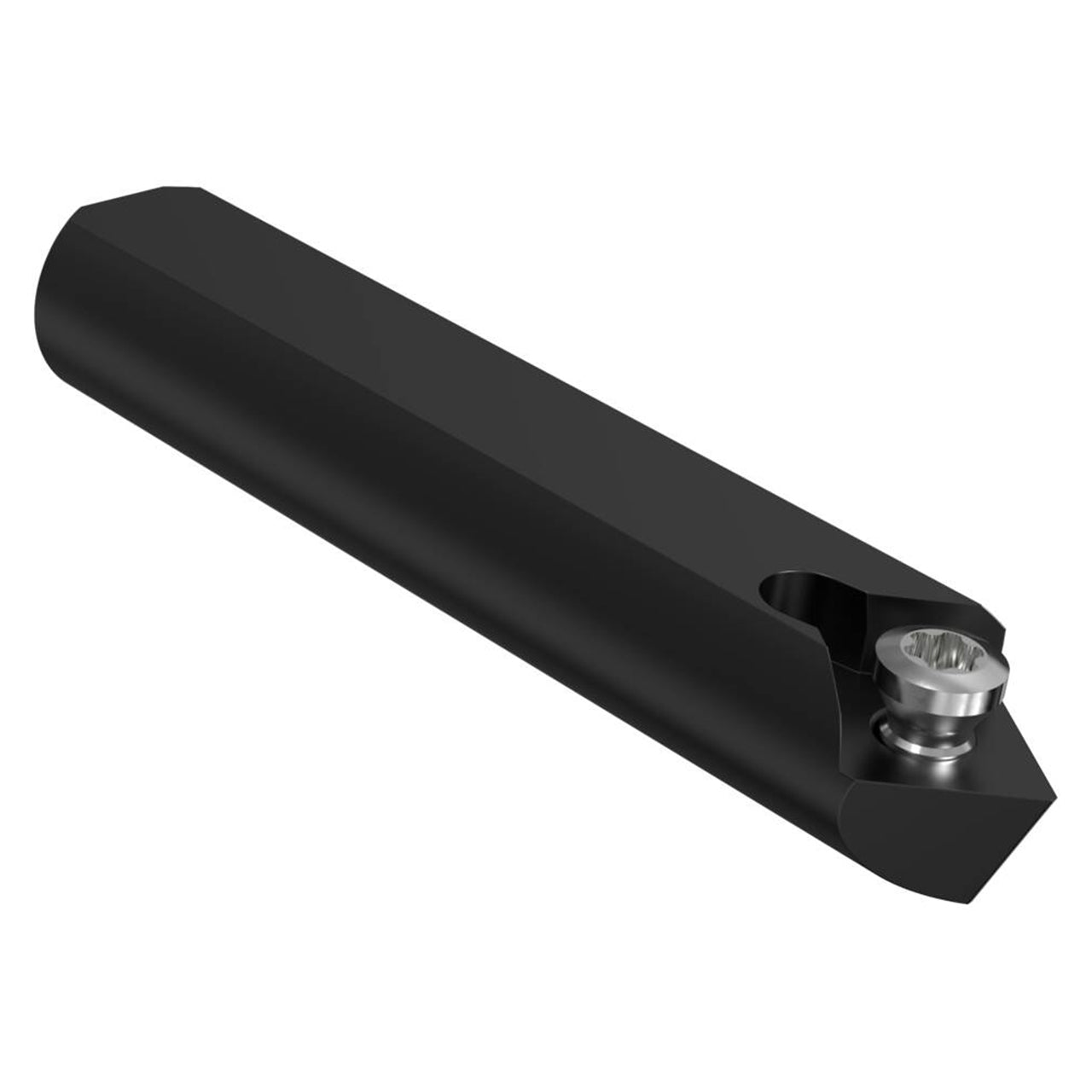

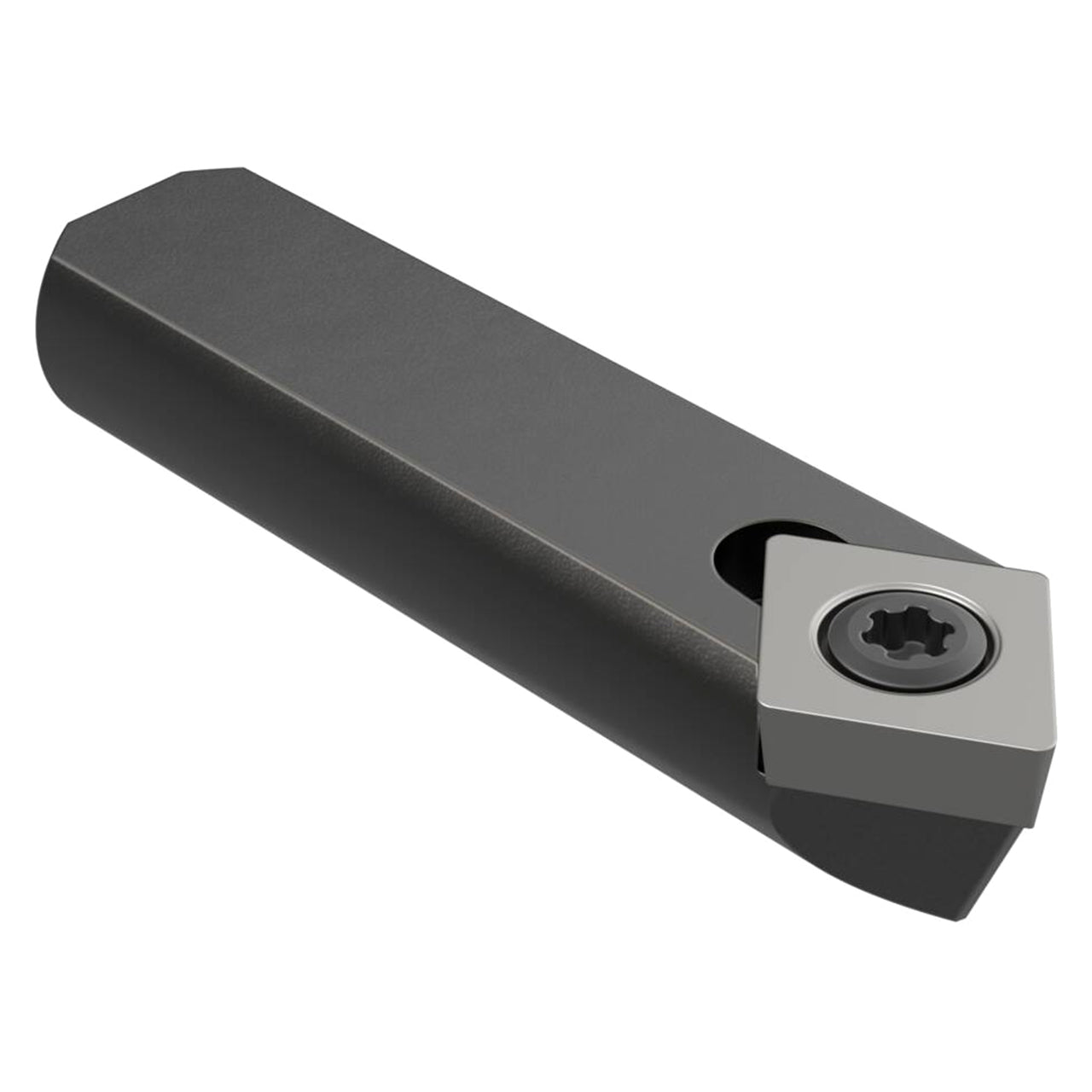

| Product Type | Indexable Boring Bar |
