Product Specifications
| Manufacturer Part Number | 75011131 |
| Minimum Cutting Diameter Internal 3 (mm) | 28.00mm |
| Connection Diameter Machine Side (mm) | 8.00mm |
| Shank Diameter (mm) | 8.00mm |
| Functional Length (mm) | 32.00mm |
| Height of Tool Holder Shank (mm) | 6.30mm |
| Functional Height (mm) | 6.30mm |
| Functional Width (mm) | 1.50mm |
| Cutting Direction | Left Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 60 Degree |
| Tool Cutting Edge Angle Code | E |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 130 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 60 Degree |
| Insert Shape Code | C |
| Shank Type | Cylindrical |

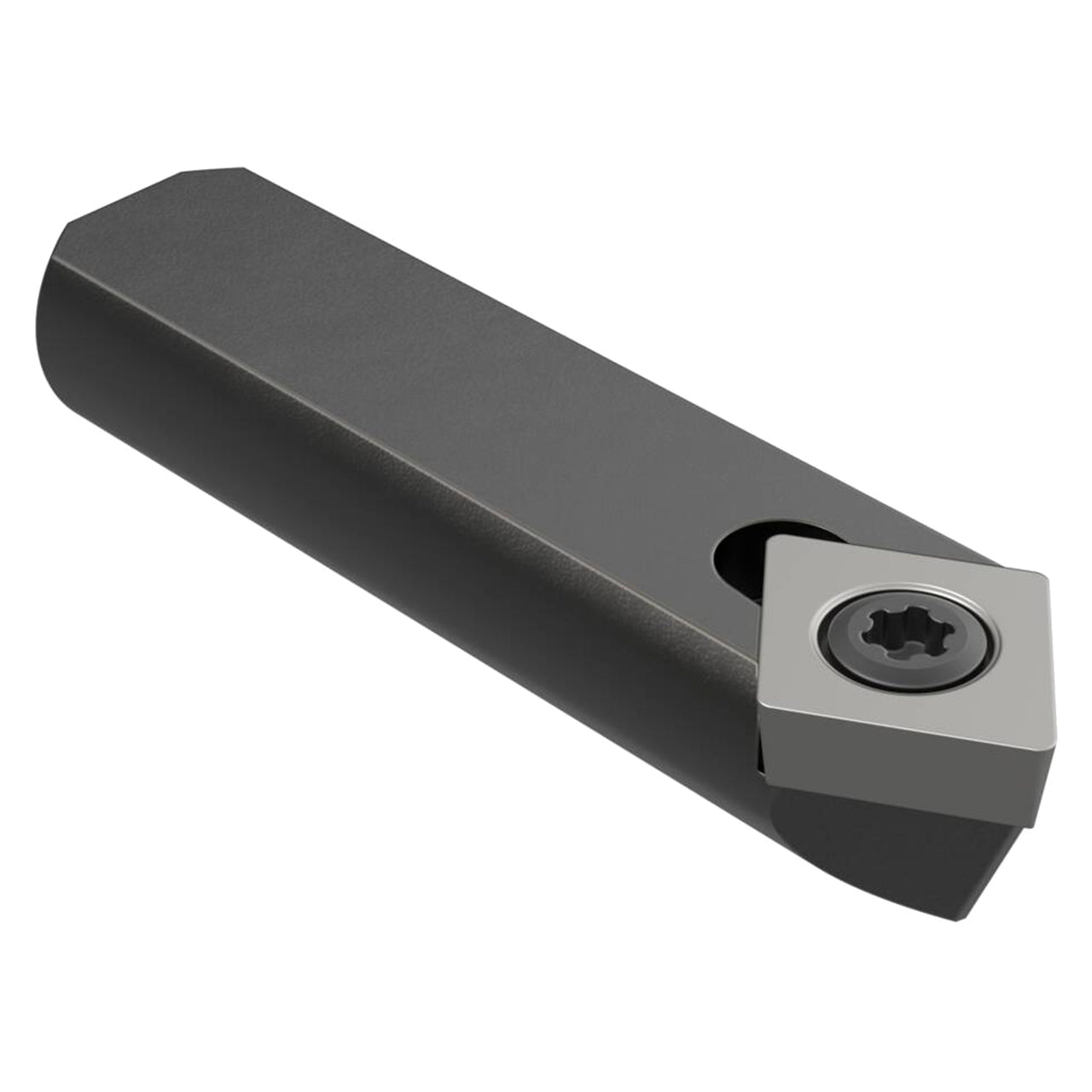

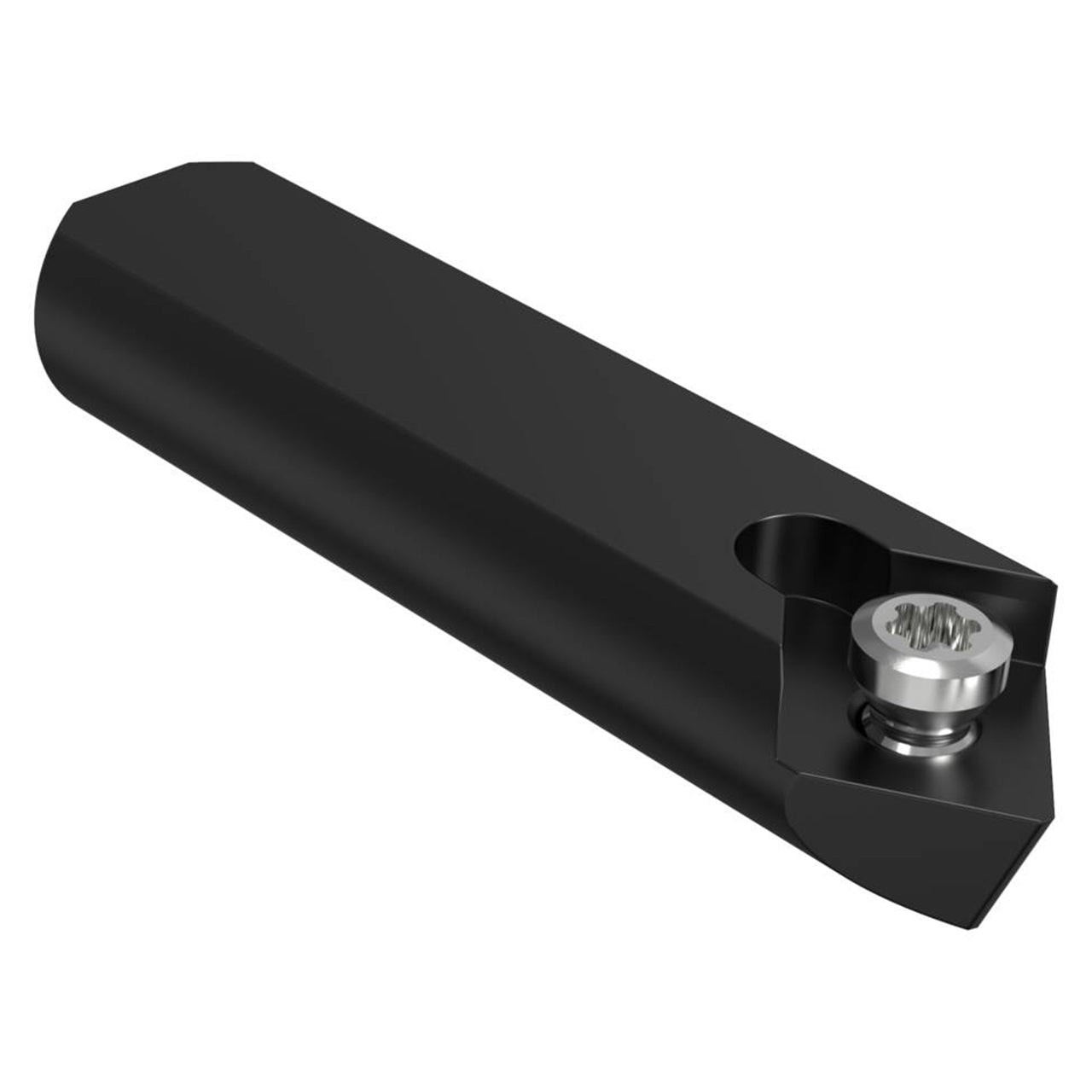

| Product Type | Indexable Boring Bar |
